2.No power required.
3.low weight, rust prevention, wear resistance and corrosion resistance.
Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Excavator > Mining Gravity Separator Mineral Processing Spiral Concentrator Separator Spiral Chute

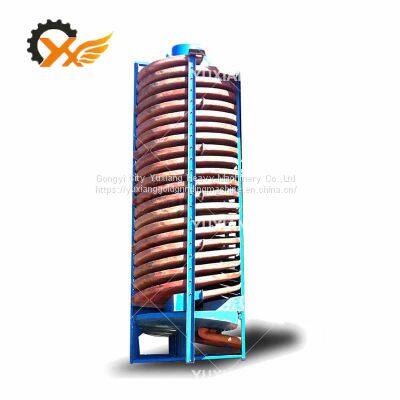

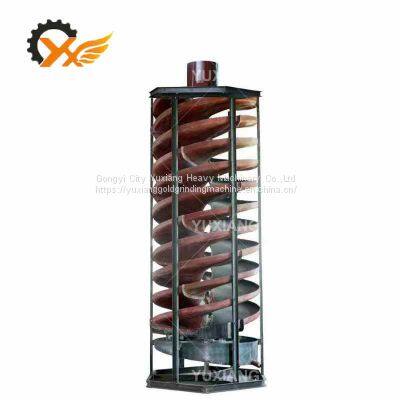

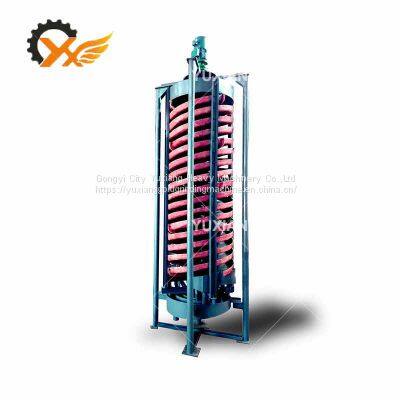

Mining Gravity Separator Mineral Processing Spiral Concentrator Separator Spiral Chute
US$ 3500 - 5500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Yuxiang Brand
Place of Origin:
China
Model Number:
Spiral chute
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days
Related Products
-
Hot Sale Gold Mining Gravity Mineral Separator Gold Shaker Table Mini Gold Shaking TableUS$ 1500 - 2500MOQ: 1 Set -
China Rotary Drum Wheel Bucket Sand Washing Machine Portable Sand Screw Washer Widely Used for Sand WashingUS$ 3500 - 4500MOQ: 1 Set
-
Multifunction High Screening Efficiency Three Deck Sieve Machine Circular Vibrating Screen SeparatorUS$ 5000 - 5500MOQ: 1 Set
-
Energy Saving Agitation Leaching Tank For Mineral OresUS$ 3000 - 3500MOQ: 1 Set
-
Round Gold Mill Plant Wet Pan MillUS$ 4000 - 4100MOQ: 5 Sets
Brand Name
Yuxiang Brand
Place of Origin
China
Model Number
Spiral chute
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Mining Gravity Separator Mineral Processing Spiral Concentrator Separator Spiral Chute
Product Description
Spiral chute spiral gravity separator is also called spiral concentrator or gravity separator, it's a kind of gravity concentrator which can separate mineral particles according to density, granularity and shape by the interaction of centrifugal force, friction force of chute surface, water flow pressure and gravity of minerals.
Application

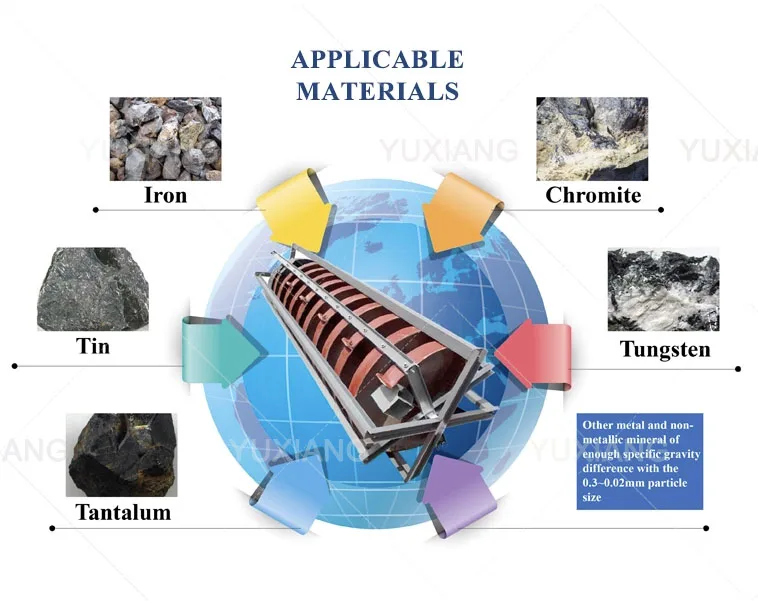

The spiral chute is suitable for separation of 0.3-0.02mm fine materials such as iron ore, ilmenite ore, chromite ore, pyrite ore, zircon ore, rutile ore, monazite ore, tungsten ore, tin ore, tantalum ore, niobium ore and other materials with enough specific gravity difference. It is the best roughing gravity equipment, which has been widely used in ferrous and nonferrous metal mines.
Specification
Features
1.High efficiency, high recovery, accurate ore separation.
4.Low operation cost and long service life.
5.It has strong adaptability to the fluctuation of ore feeding amount, concentration, particle size and grade.
6.The friction formed on the emery surface makes the beneficiation effect better than other plastic surfaces.
5.It has strong adaptability to the fluctuation of ore feeding amount, concentration, particle size and grade.
6.The friction formed on the emery surface makes the beneficiation effect better than other plastic surfaces.
Working Principle

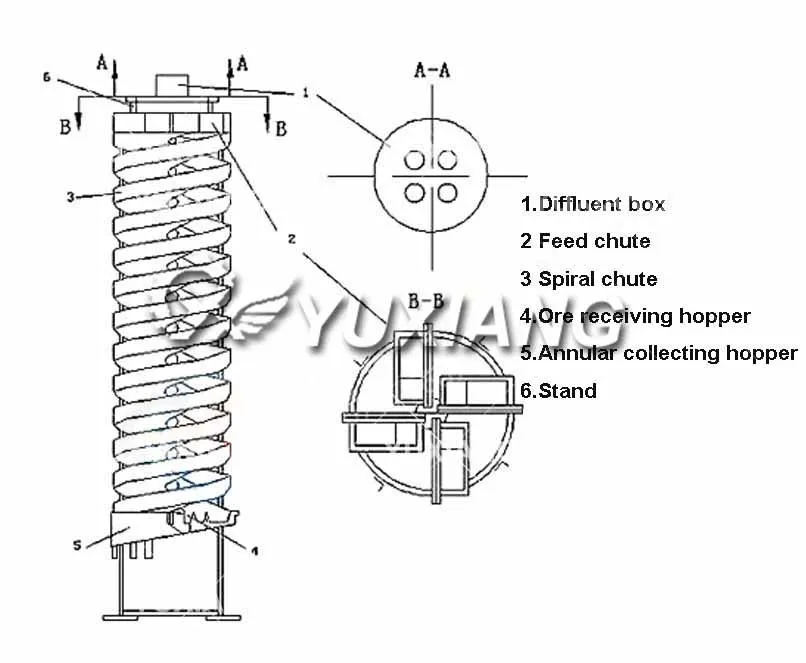

,Erect the spiral chute, calibrate the vertical line, fix it in a suitable position with an iron frame or wood, spiral chute is working under the force of water flow, gravity, inertial centrifuge and friction. Slurry is pumped to the top of the spiral,and it enters a feed distributor that evenly distributes the feed to each spiral concentrator. The design and shape of the spiral make it work,when combined with gravitational acceleration.As the slurry travels the spiraling path down the spiral,mineral grains settle and start sorting according to size,density and to a lesser extend shape.Low density particles are carried with the bulk of the water towards the outside of the spiral,while particles with the greatest density migrate towards the inside of the spiral.

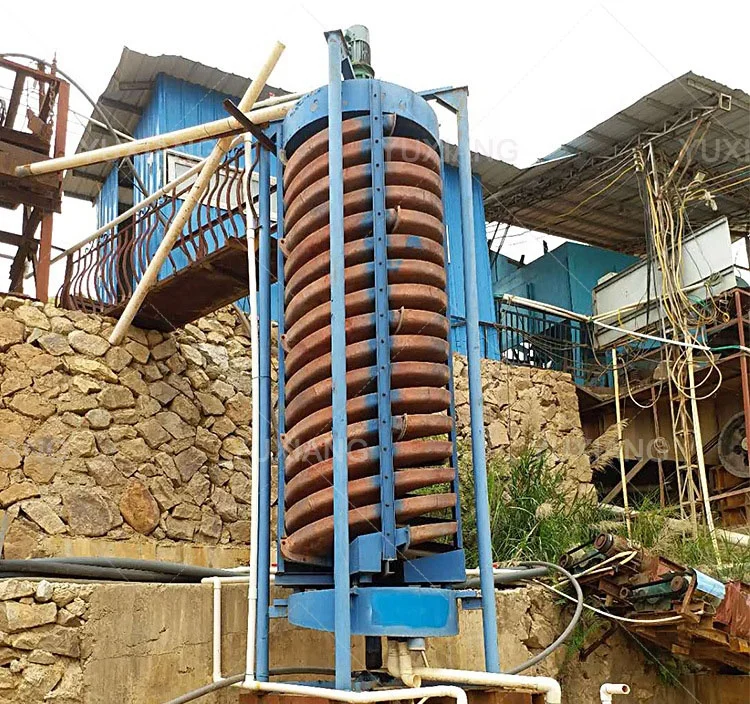

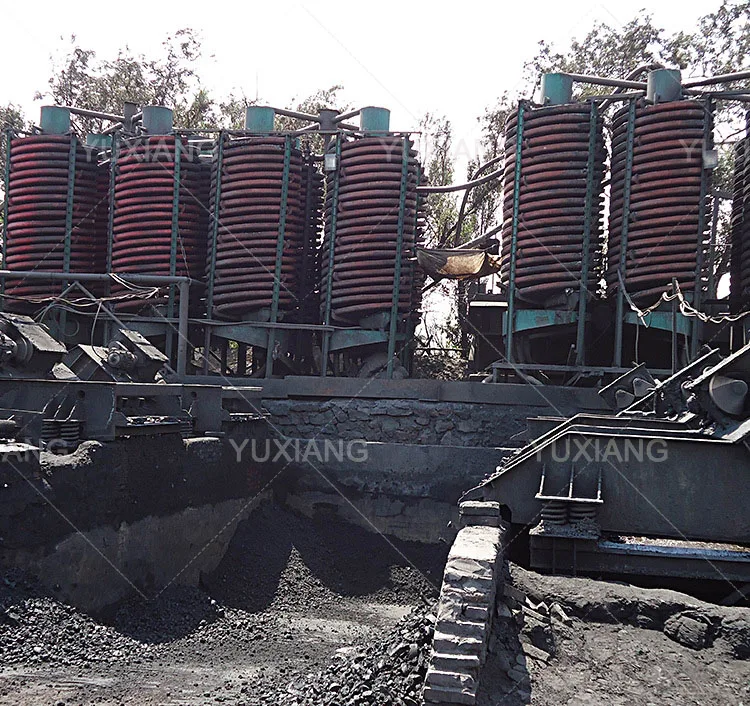

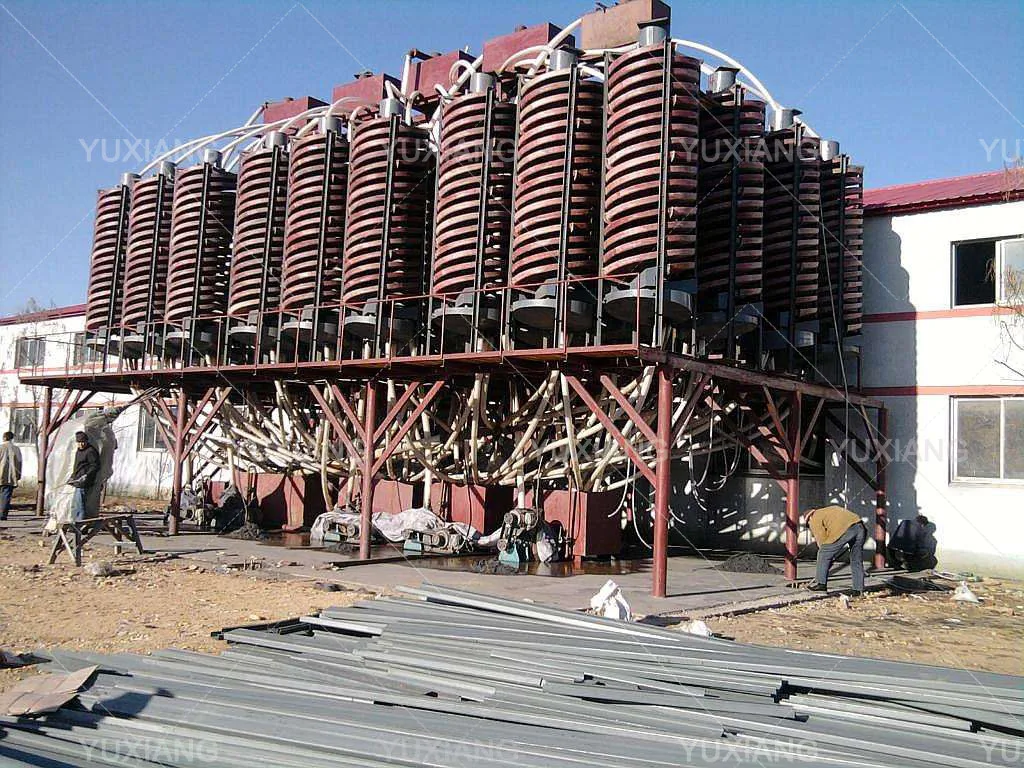

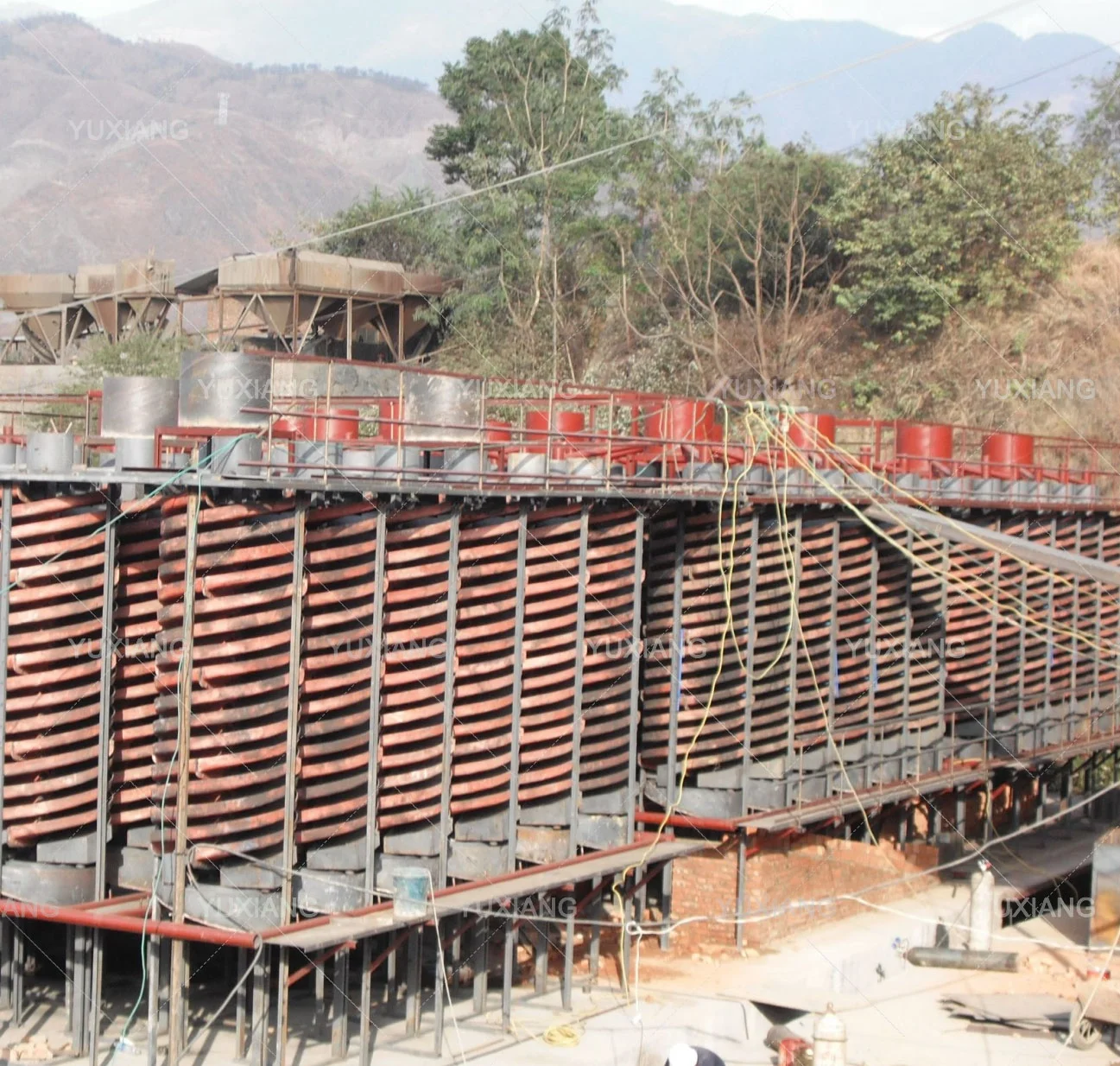

Product Case
