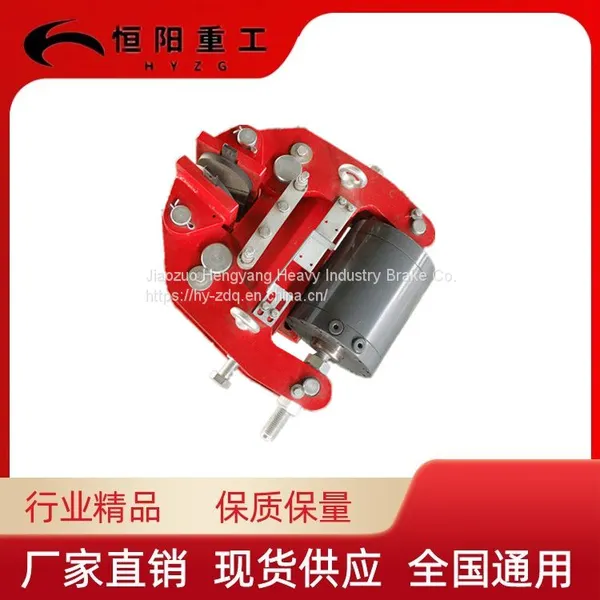

Help CenterSBD80-B Hengyang Heavy Industry Disc Hydraulic Brake Interlock Protection
Related Products
-
Hengyang Heavy Industry SBD160-B Disc Hydraulic Brake Friction Pad SwitchCNY 1500 - 2900MOQ: 5 Units -
Hengyang Heavy Industry SBD100-A Disc Hydraulic Brake With Fault DisplayCNY 1500 - 2900MOQ: 5 Units
-
Hengyang Heavy Industry SBD125-A High Performance Friction Pad for Disc Hydraulic BrakeCNY 1500 - 2900MOQ: 5 Units
-
Hengyang Heavy Industry SBD160-A Disc Hydraulic Brake High Wear-resistant Brake PadsCNY 1500 - 2900MOQ: 5 Units
-
Hengyang Heavy Industry SBD200-A Disc Hydraulic Brake Reasonable Sealing StructureCNY 1500 - 2900MOQ: 5 Units
Installing the Brake
a. Remove the rear brake caliper guard (piece 1), connect the hydraulic station piping to the brake cylinder, open the hydraulic station to open the brake, screw the release bolts on both sides of the brake caliper into the piston (piece 15 in Fig. 1), so as to keep the brake in an open state, and then disconnect the coupling piping (usually the release bolts have been screwed into the piston when it is shipped from the factory);
b. Lift the brake assembly onto the mounting base as shown in 2.1, screw on the ground bolts, and loosely set the nuts and washers;
c. Adjust the position of the brake bracket so that it is centred and parallel to the brake disc, and the edge of the brake liner is indented by 3-5mm compared with the outer diameter of the brake disc (see Fig. 1), and the relevant tolerance requirements are shown in Fig. 3 (the brake liner can be rotated by a certain angle, and should be adjusted so that the edge of the brake liner is parallel to the outer diameter of the brake disc);
d. Tighten the ground bolt to the spring washer until it is flat, connected to the hydraulic line, open the hydraulic station into the hydraulic oil, remove the release bolt and properly stored for future use;
Note: The release bolt must be removed during normal operation!
