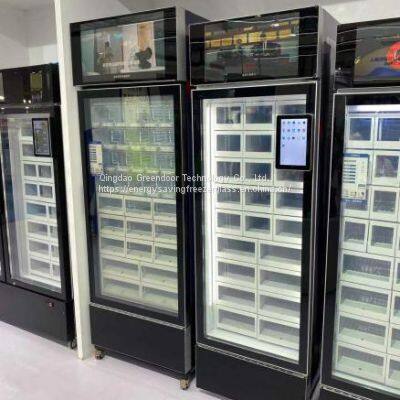

Vending machine glass door

Ultra Energy Saving

Ø 95% high argon charged, keeping argon 90% for 20 years

Ø 20% better insulation/energy saving/cooling performance in glass door

Ø 20% less watt is used to heat the glass door, 20%energy saving than traditional heated glass door

Ø Soft coat Low E glass for heat radiation stop and insulation performance

Compressor protection

Ø Compressor protection: decrease compressor startup and running time, lengthen compressor life

Ø Lengthening the service life of the cooler/freezer unit

Long life guarantee

Ø 15+ years glass glass seal leakage proof

Ø Leak proof and dew proof guarantee for 10+ years, same life guarantee as your cooler/freezer unit

Ø Vending machine glass door with holes can fill and keep 95% argon too

Product

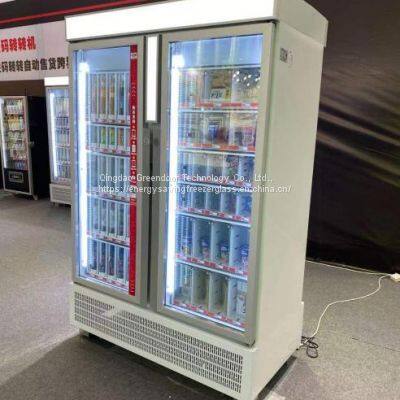

95% high Argon gas 20% energy saving electrically heated insulated glass door for one door two door upright Beverage Cooler/freezer

Composition

Heating Insulated glass with 95% argon keeping, PVC frame, aluminum frame, stainless steel polish frame

Heating glass power supply is 48v/DC, 36v/DC or 220-240/AC etc

Frame

Metal Frame

Glass door size

customized

Door Corner Shape

Round corner, square corner

Accessories

heating is optional, usually 10w/meter power rate

Strong magnetic gasket

Key and Lock, frame corner connector

Color LED light strip

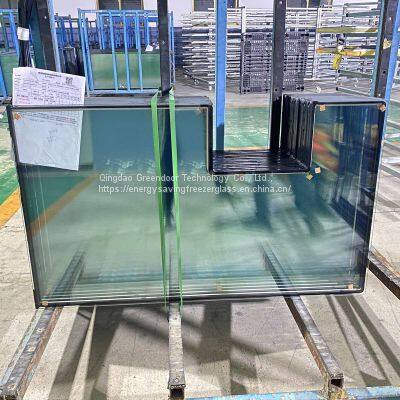

Insulating Glass

2-3 layer insulated glass

Layer

Double layer heated glass door for cooler with argon krypton filling and keeping

Triple glazed heating glass door for cooler with argon krypton filling and keeping in 2 cavities

Glass thickness

3.2mm/4mm EC glass + 14~18mm flexible spacer with 95%-99% high argon filling and keeping + 3.2mm/4mm Low E glass

Glass type

EC glass has electrically conductive coating film, normal model is 60w/sqm, and 90w/sqm

Soft Low E for higher insulation performance and high transmittance

Tempered glass anti-collision, explosion-proof, anti-blast with hardness of automobile windshield

Spacer

Flexible GD warm spacer,

Argon gas/air penetration leak rate is 0.002g/m2/24hour

Keeping high argon for 20 years

Insulated Glass Cavity Gas

95-99% argon filling

20% energy saving

Low E glass protection and performance enhancement, noise reduction

keeping argon 90% for more than 10 years

Same long life guarantee with the beverage cooler unit

Insulated glass Sealant

Polysulfide, double component silicone

Silk screen color and color

Red silk screen color for Coca Cola

Blue silk screen color for Pepsi

Black silk screen color for wine bar cabinet

Customized according to your logo design

LOGO Brand

Greendoor Technology, or your logo design

Temperature

0~8℃ usually for cooling, -18~-30℃ for ice cream or frozen freezer, 8~12℃ for wine bar cabinet

Warranty

Same life time guarantee as your cooler unit
