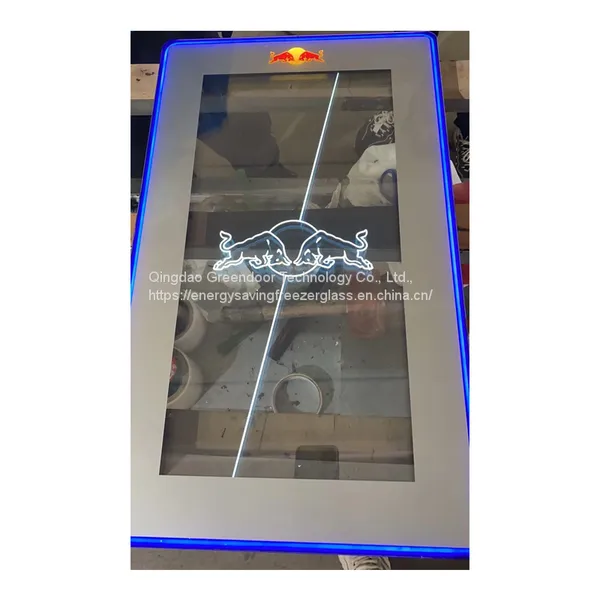

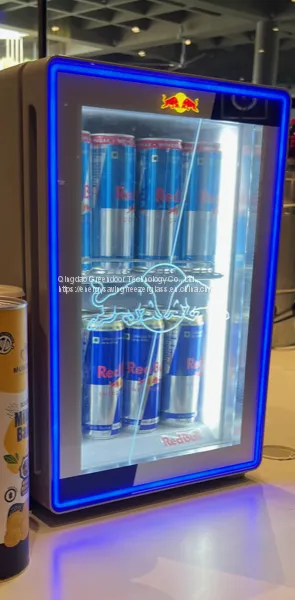

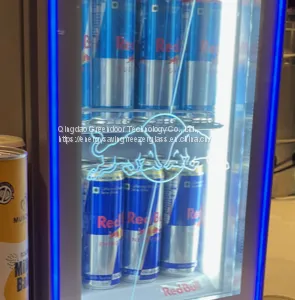

LED strip edge glass

Back-lit LED Light strip, innovative advertising of your beverage and coke brand and logo

12-24V DC power supply, 5w power rate for LED strip

Silk screen glass at the exterior layer of the glass door, elegant design

Step insulated glass door with PVC and Aluminium Frame

95% high argon filling and keeping inside the insulated glass door cavity, to have best glass insulation performance and

20% energy saving for the glass door

Soft Low E glass for better heat radiation stop and glass insulation performance

Slim silver aluminium frame for good appearance and anti-UV aging

Product

Custom back-lit edge-lit LED Strip edge glass door for beverage/dairy/cosmetics Cooler/freezer/Fridge/Display refrigerator

Composition

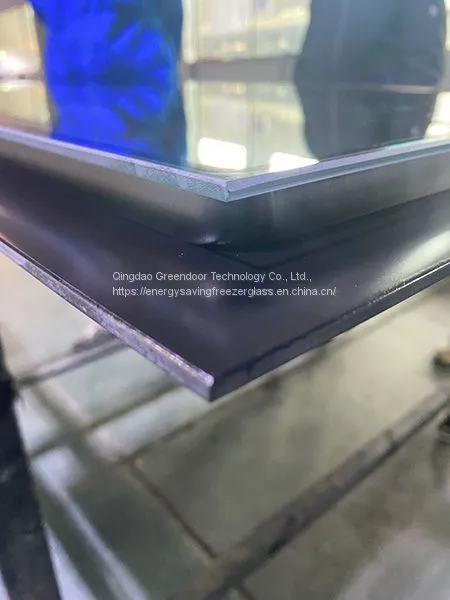

2-3 layer Insulated glass with 4 side step,

LED strip,

PVC frame,

aluminum frame,

LED light inside the cabinet

LED light strip

120-190 bead/meter, 5w, DC12-24V

Glass door size

customized

Door Corner Shape

Framed glass door, Frameless glass door,  round corner (R30, R10), square corner

Accessories

Frame heating is optional, usually 10w/meter power rate

Full Long handle, short handle, top mounted handle, side mounted handle, recessed handle, add-on handle, in-built handle, aluminum handle, plastic handle

auto-return, 90 degree hold open, top and bottom hinge

Strong magnetic gasket

Key and Lock, frame corner connector

Color LED light strip

Insulating Glass

2-3 layer insulated glass

Layer

Double layer heated glass door for cooler with argon krypton filling and keeping

Triple glazed heating glass door for cooler with argon krypton filling and keeping in 2 cavities

Glass thickness

3.2mm/4mm EC glass + 14~18mm flexible spacer with 95%-99% high argon filling and keeping + 3.2mm/4mm Low E glass

Glass type

Soft Low E for higher insulation performance and high transmittance

Tempered glass anti-collision, explosion-proof, anti-blast with hardness of automobile windshield

Spacer

Flexible GD warm spacer,

Argon gas/air penetration leak rate is 0.002g/m2/24hour

Keeping high argon for 20 years

Insulated Glass Cavity Gas

95-99% argon filling

20% energy saving

Low E glass protection and performance enhancement, noise reduction

keeping argon 90% for more than 10 years

Same long life guarantee with the beverage cooler unit

Insulated glass Sealant

Polysulfide, double component silicone

Silk screen color and color

Red silk screen color for Coca Cola

Blue silk screen color for Pepsi

Green silk screen color for Carlsberg

Black silk screen color for wine bar cabinet

Customized according to your logo design
