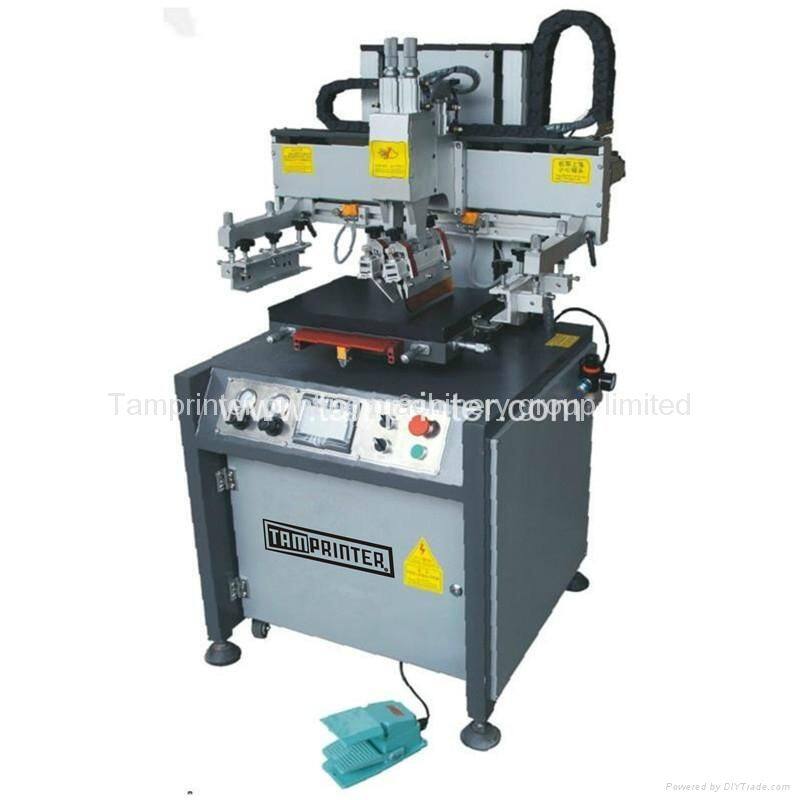

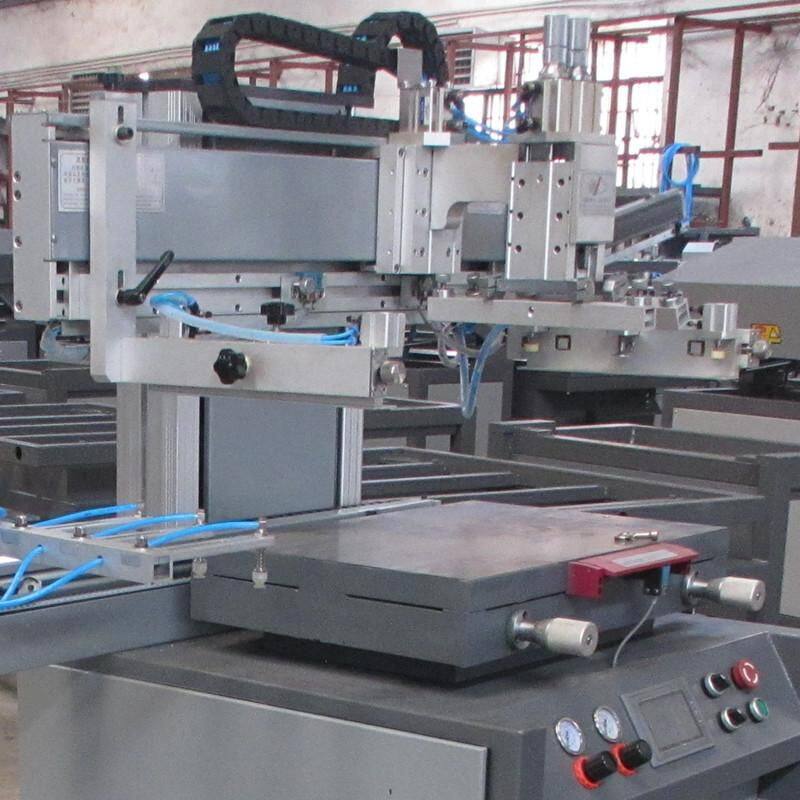

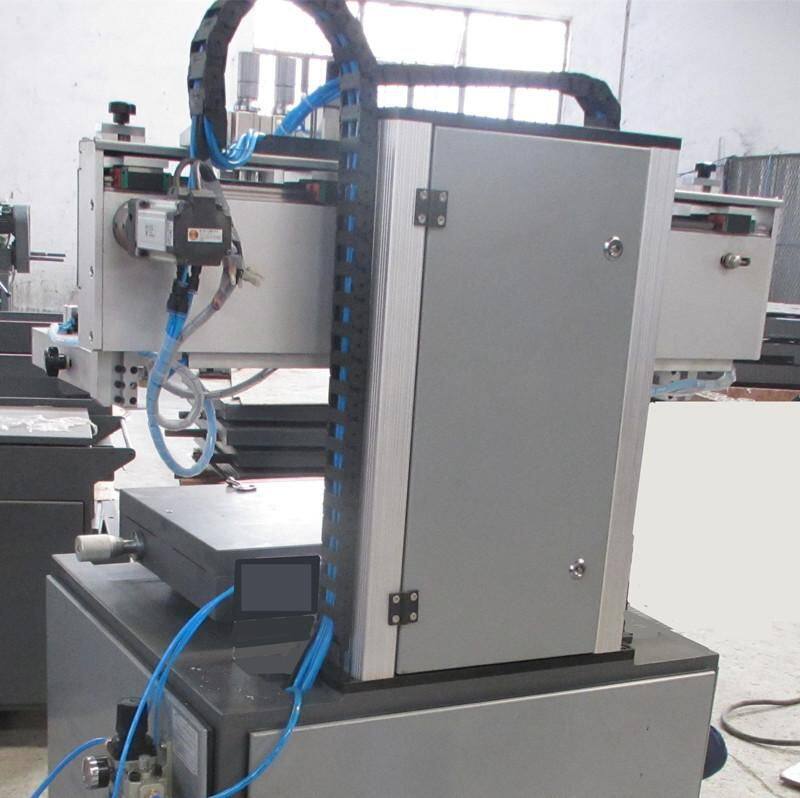

Ultraprecision Vertical screen printer (TM-3045Z)
/v_show/id_XMTI2ODc5NTkwMA==.html?from=y1.7-1.2
Technical parameters:
| Model No. | TM-3045Z |
| Printing area | 300X450mm |

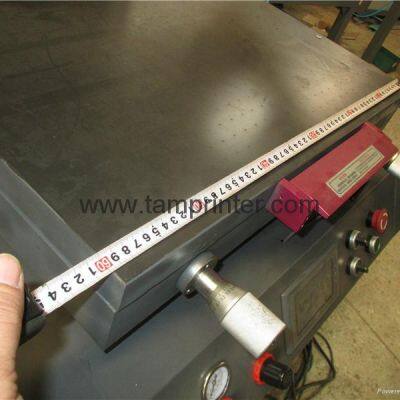

| Table size | 400X550mm |
| Max frame | 550X720mm |
| Printing thickness | Less than 40 |
| Platform precision | 0.05 more or less |
| Printing pressure | 4.0-6.0 |
| Printing speed | 900 |
| Power | 380V/1.5KW |
| Dimensions (LXWXH)mm | 980X820X1580mm |
| Weight | 280kg |
Application:
Mobile phone cover, mobile phone back, Tablet PC cover.
Features:
1. The screen printing machine is powered by imported servo motor, printing more stable.
2. A variety of accessories by the customer freedom of choice, choose more flexible.
3. Hard alumina Taiwan version and more effective to prevent the glass scratches.

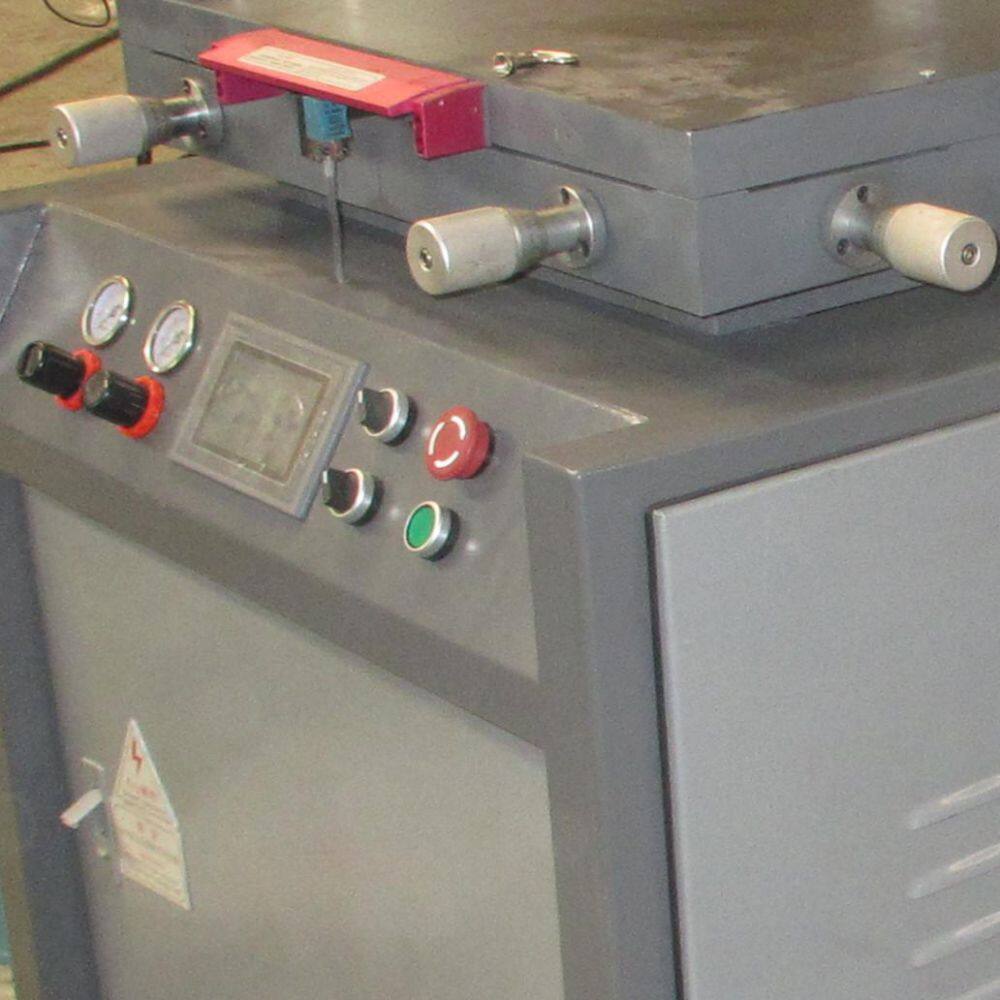

4. Touch screen controls, a variety of fine-tuning the details can be precisely controlled.
Payment terms: T/T L/C Western Union
Packing: Plywood case/ wooden case as required
Lead time: 5 days after confirmed payment
Sku: 10sets
Standard certification: CE
Minimum Order: 1 set
Price term: CIF/FOB/CFR/FCA/EXW
