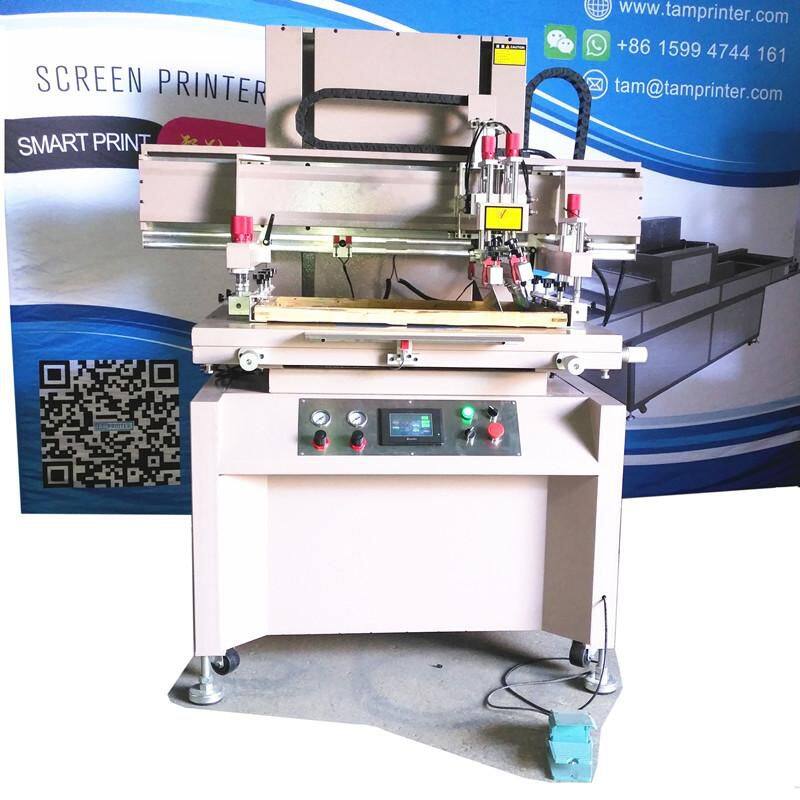

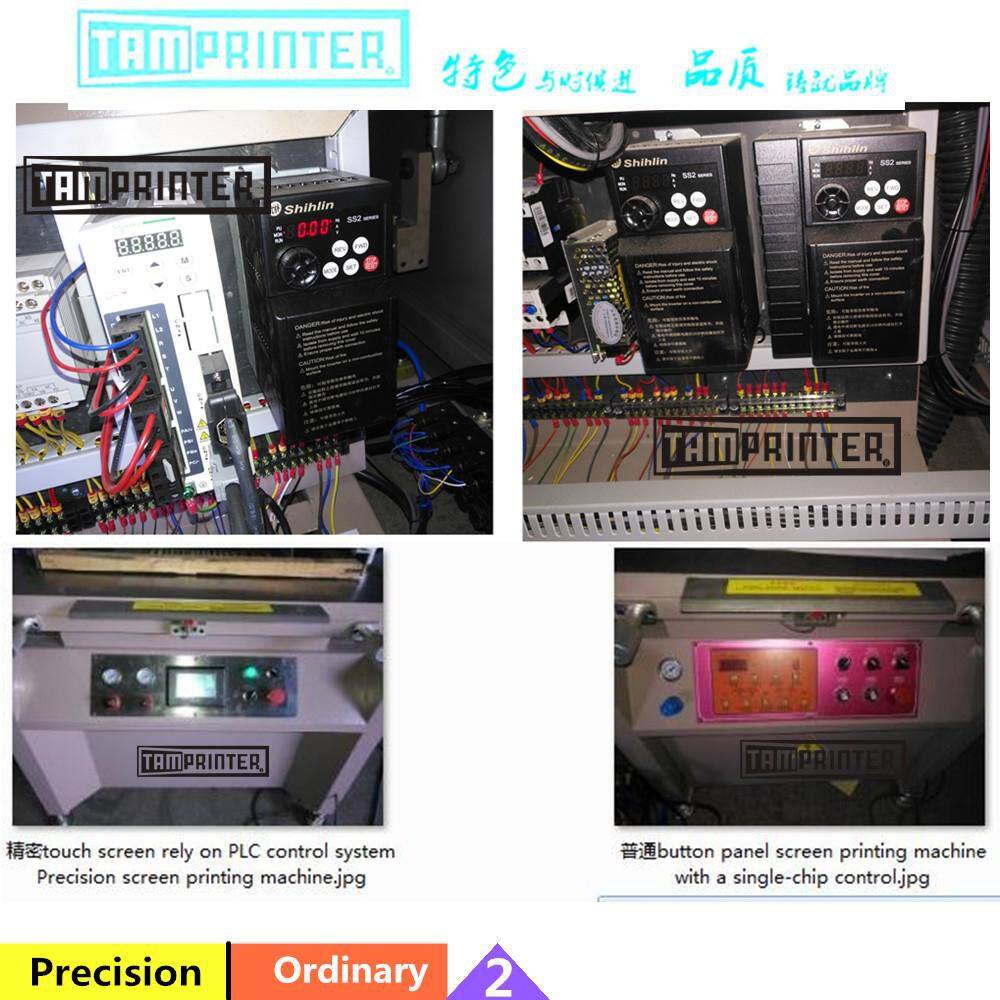

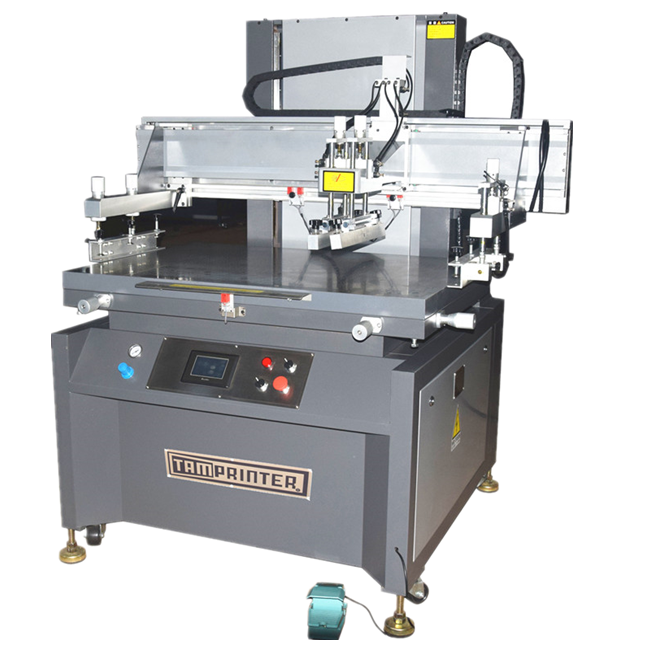

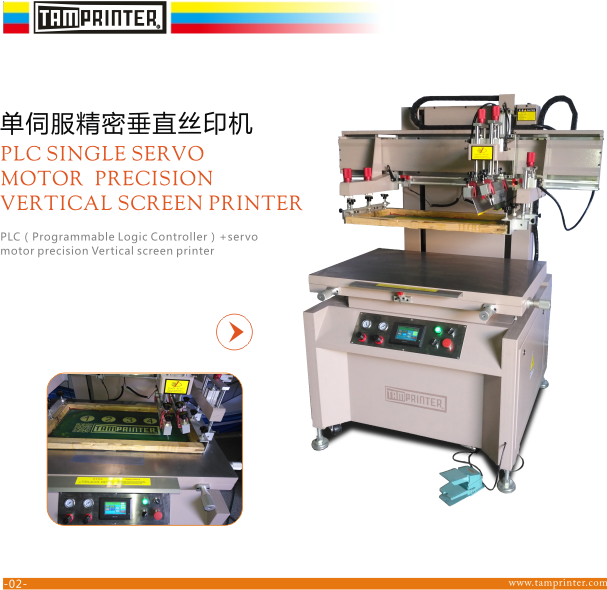

TM-3050A and TM-3050B is PLC（Programmable Logic Controller）+servo motor precision Vertical screen printer

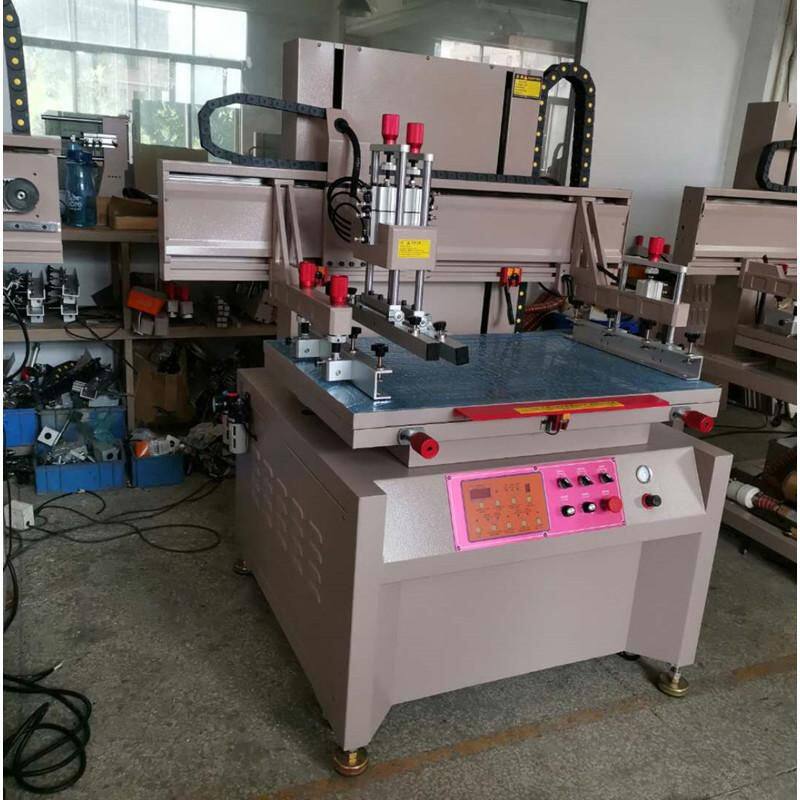

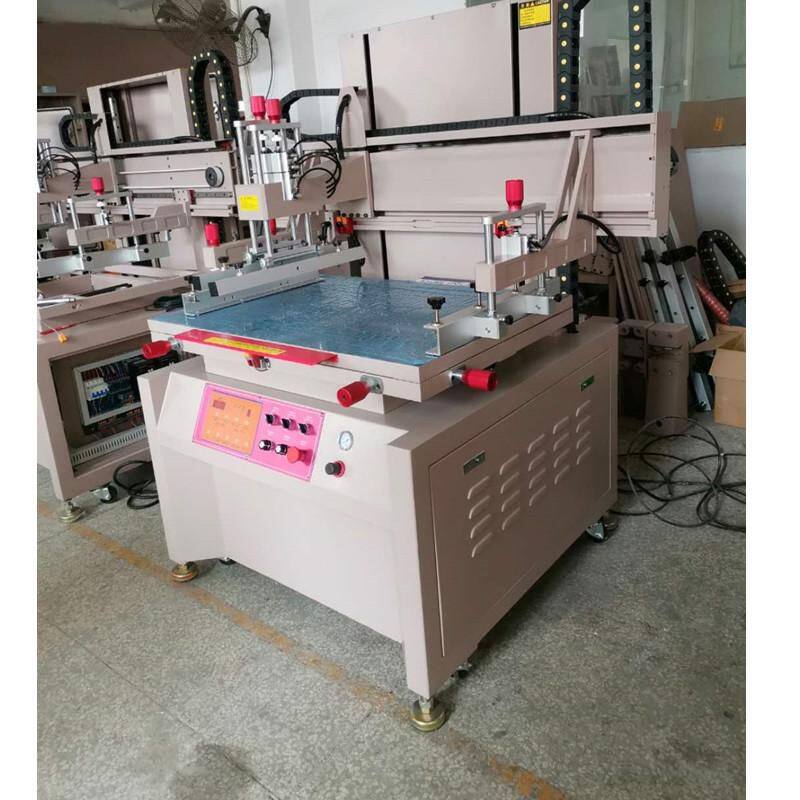

TM-3050D Button panel screen printing machine with a single-chip control
video link: /v_show/id_XMTI2ODc5NTkwMA==.html
Widly used in membrane switches, hot transfer printing, water transfer printing, PCB, LED, SMT, Solder paste printing, Plastic, glass, ceramics, metal, leather, keyboard, textile printing
Technical parameter:
Model No. | TM-3050A | TM-3050B | TM-3050D | TM-5070A | TM-5070B | TM-5070D | TM-6090B | TM-6090D | TM-70100B | TM-70100D |

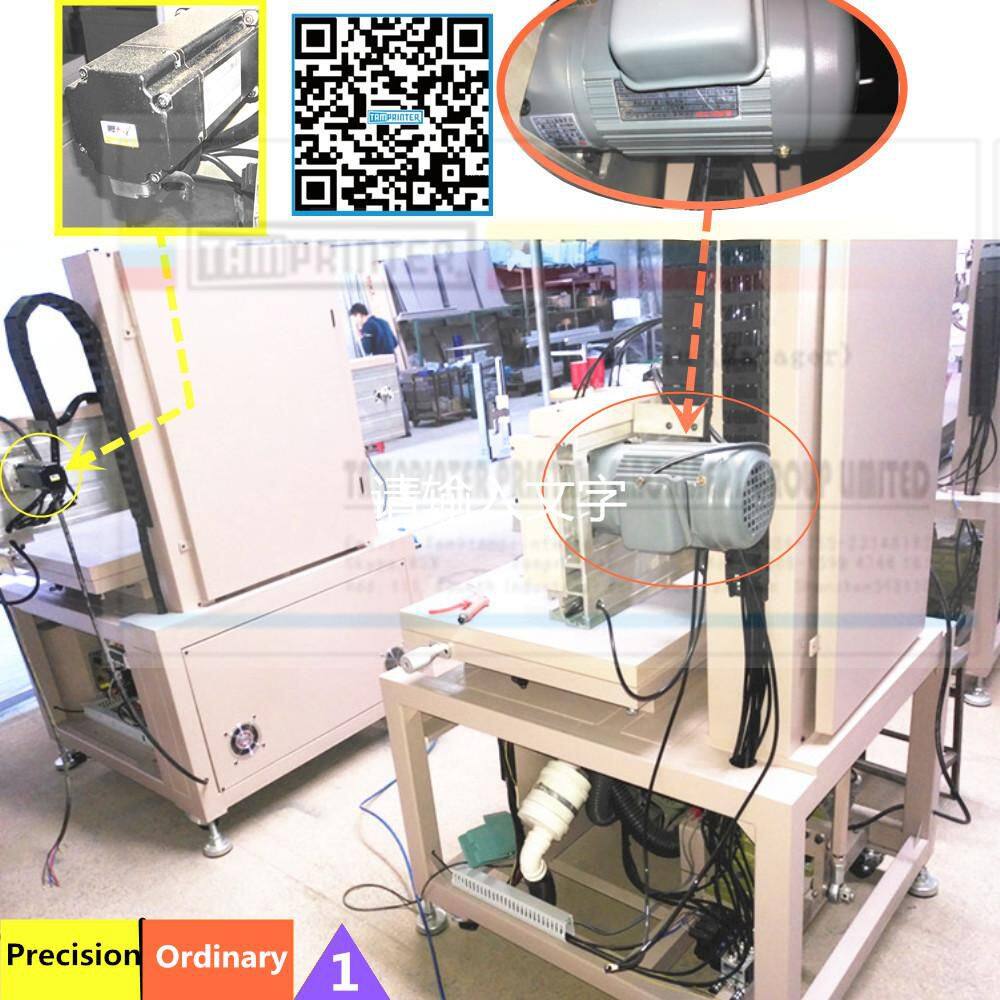

Servo+PLC | X/Z servo | X servo Z motor | X/Z Common motor | X/Z servo | X servo Z motor | X/Z Common motor | X servo Z motor | X/Z Common motor | X servo Z motor | X/Z Common motor |
Price | $7500 | $6625 | $10000 | $9125 | $9375 | $9975 | ||||
Print area | 300X500mm | 500X700mm | 600X900mm | 700X1000mm | ||||||
Table size | 400X600mm | 600X800mm | 700X1000mm | 800X1100mm | ||||||
Max frame | 550X750mm | 600X1000mm | 800X1200mm | 900X1350mm | ||||||
Printing thickness | 0~40mm | 0~ 50mm | 0~ 50mm | 0~ 50mm | ||||||
Overlay accuracy | 0.01mm | 0.015mm | 0.02mm | 0.02mm | ||||||
Platform precision | About +/-0.04mm | About +/-0.06mm | About +/-0.075mm | About +/-0.075mm | ||||||
Printing pressure | 4.0-8.0 kgf/cm2 | 4.0-8.0 kgf/cm2 | 4.0-8.0 kgf/cm2 | 4.0-8.0 kgf/cm2 | ||||||
Air pressure (mpa) | 0.5~0.6(Mpa) | 0.5~0.6(Mpa) | 0.5~0.6(Mpa) | 0.5~0.6(Mpa) | ||||||
Air consumption | 35L/min | 35L/min | 35L/min | 35L/min | ||||||
Printing speed | 960pcs/h | 1000pcs/h | 900pcs/h | 900pcs/h | ||||||
Power | 220V/2.5KW | 220V/2.5KW | 380v /2.5kw | 380v /2.5kw | ||||||
Dimensions (LXWXH)mm | 980X820X1580mm | 1260mmX900mmX1680mm | 1500X1070X1750mm | 1550X1200X1750mm | ||||||
Weight | 280kg | 420kg | 480kg | 550kg | ||||||
if add robot arm add $3000
Application:
Mobile phone cover, LED backlight, Tablet PC cover.
Features:
1. The screen printing powered by imported servo motor, printing more stable.
2. A variety of accessories by the customer freedom of choice, choose more flexible.
3. Hard alumina Taiwan version and more effective to prevent the glass scratches.

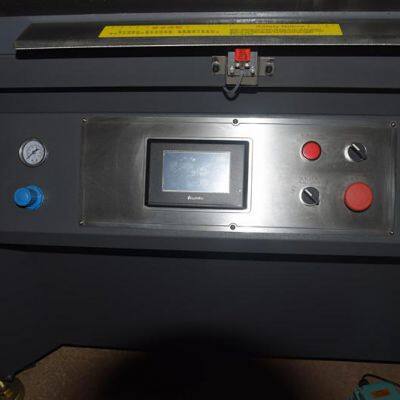

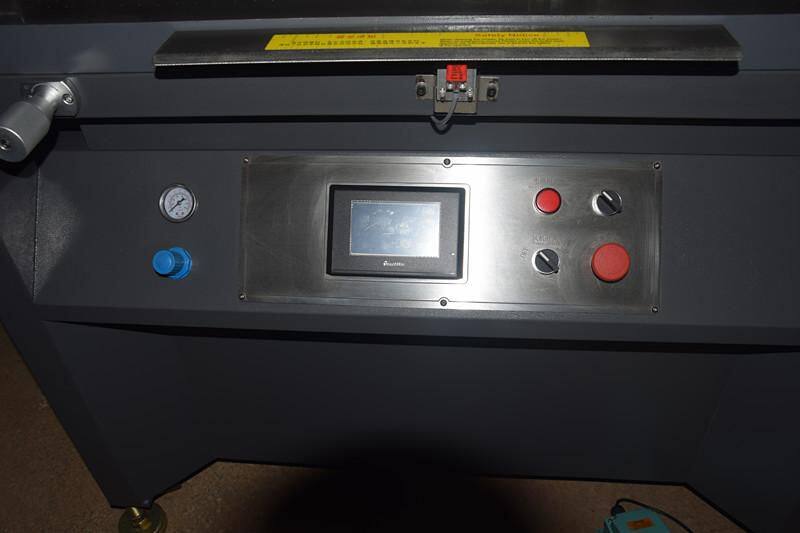

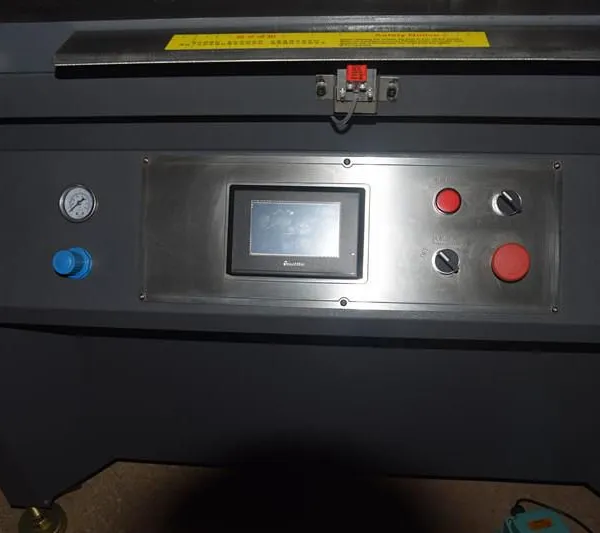

4. Touch screen controls, a variety of fine-tuning the details can be precisely controlled.
Additional Info.
Payment terms: T/T, L/C ,Western Union
Packing: Plywood
Lead time: 5 days after confirmed payment
Sku: 10 sets
Standard certification: CE
Minimum Order: 1 set
Price term: CIF/FOB/CFR/FCA/EXW
hot keys: Glass screen printing machine
