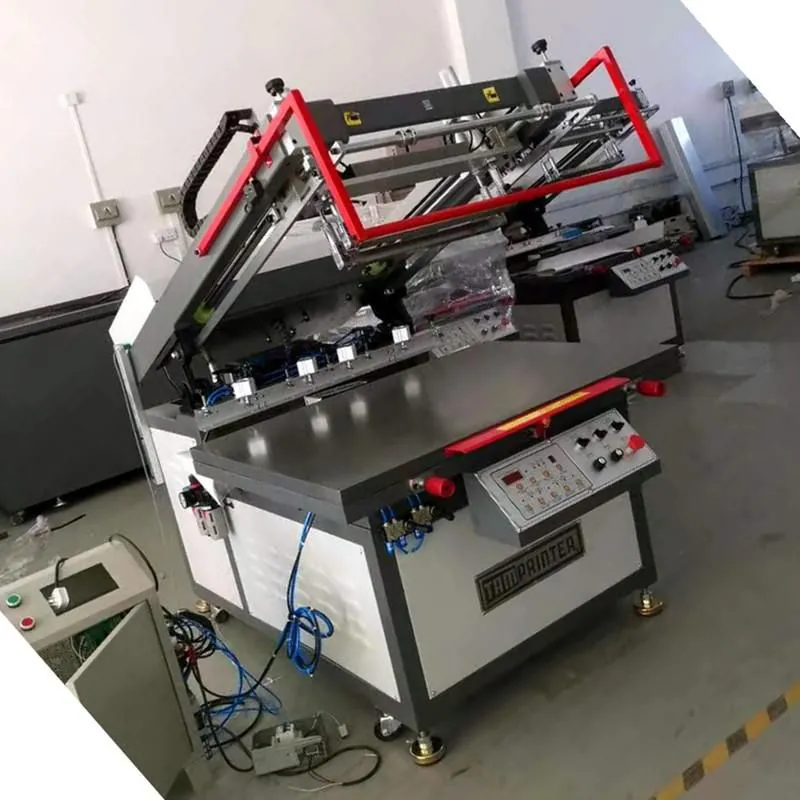

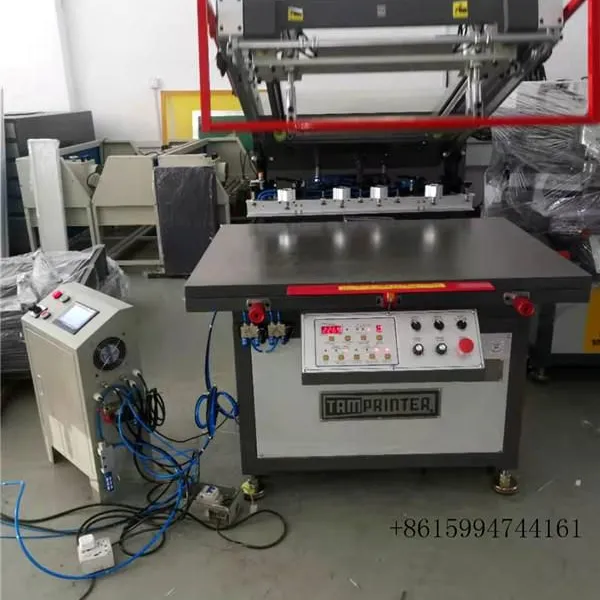

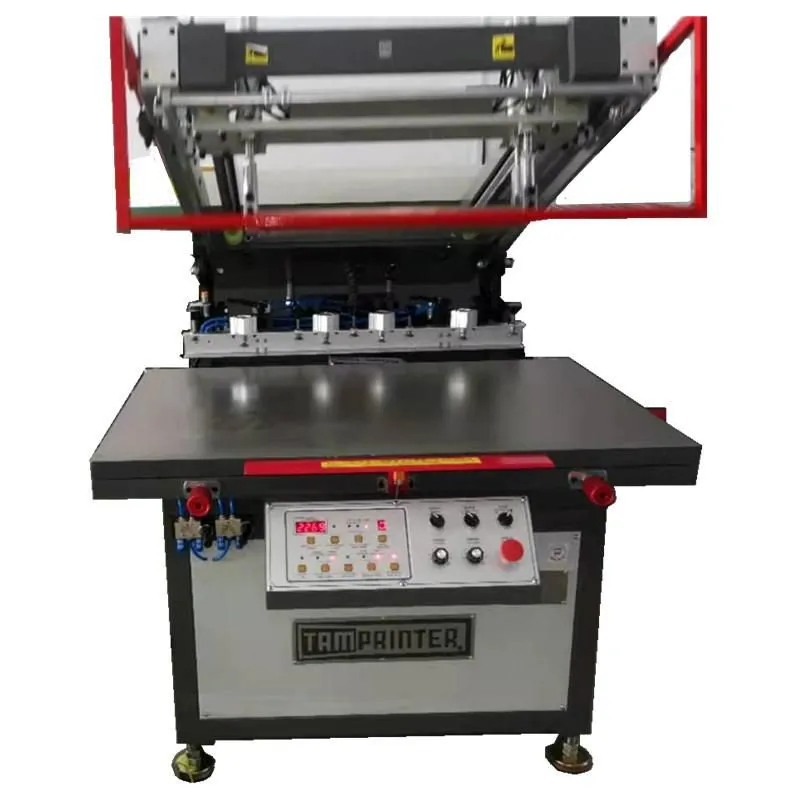

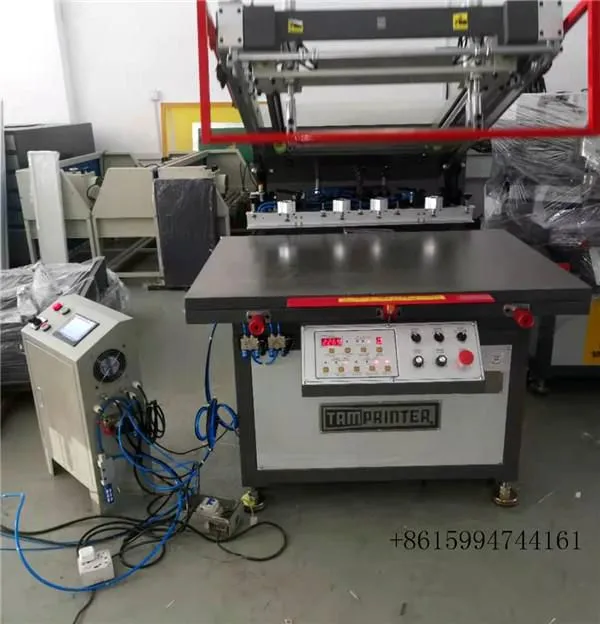

TMP-100130A Semi-automatic Oblique Arm Screen Printer
video link:
/p/CNRUir1g5qb/?igshid=1brykrow6pmd2
http://youtu.be/d0zJxbDc-Js
big type printer with Automatic glitter powder spill machine test video
https://youtu.be/_efN9mhuo7Q
youku Video
/v_show/id_XNTUxOTc1OTgw.html
/p/CJGR-3JrV8d/?igshid=165df0euae3yj
/p/CJFX-mZr0X8/?igshid=4kej31g27o2k
/p/CJFMWBVgubZ/?igshid=nhdmp8ow9lpc
/p/CJFLwVig3mW/?igshid=1j2ix51wiiqqg
1. Technical parameter:
Type |
TMP-100130A |
Worktable area (mm) |
1100X1400 |
Max printing area (mm) |
1000X1300 |
Max screen fame size (mm) |
1300X1600 |
Thickness of materials (mm) |
20 |
Printing speed |
400~900pcs/h |
Air pressure (Mpa) |
0.4~0.8 |
Air consumption (L/pcs) |
13 |
Power |
5KW |
Max worktable height (mm) |
880 |
Dimension (LXWXH) |
2.38*1.95*1.6m |
Weight |
620kg |
Rated voltage |
380V/50Hz |
2. Application:
This series of flat screen printing machine is widely used in electronics industry (such as PCB, thin-film switch and so on), packaging industry (such as cigarette case, wine box, gift box and so on), paper board industry (such as trademark, calendar, oil painting, computer keyboard, new year picture, transfer print paper, adhesive sticker, credit card, plate board and so on).
3. Features:
(1). High precision line and synchronous printing transmission adopts motor drive, speed equality and can be adjusted, balanced speed, speed adjustable.
(2). Oblique arm lifting motor, frequency control, the machine runs smoothly.

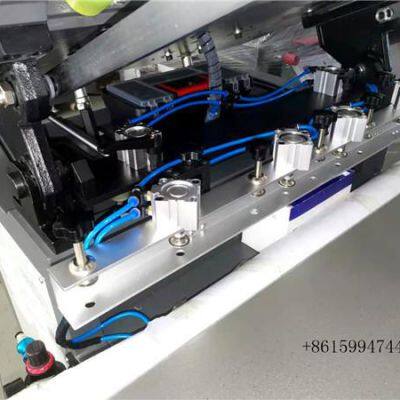

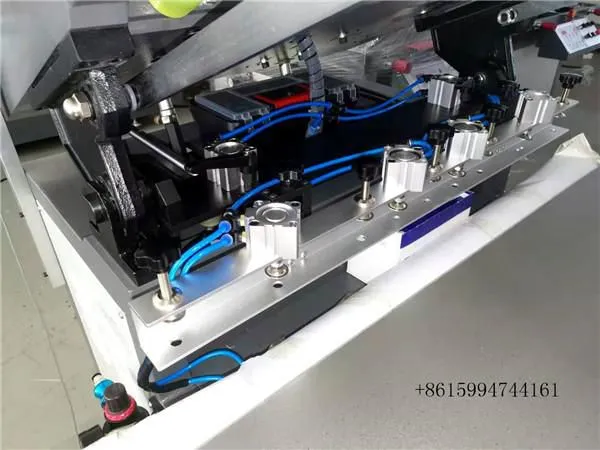

(3). Blade and back blade pressure regulating device, and can be adjusted to the thickness and size of printing.

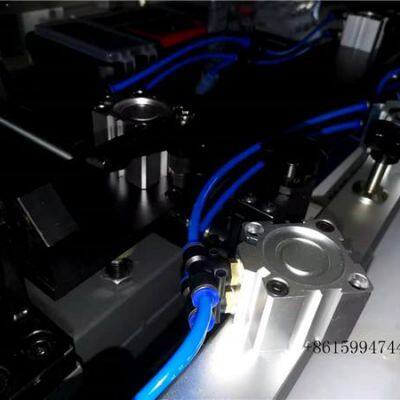

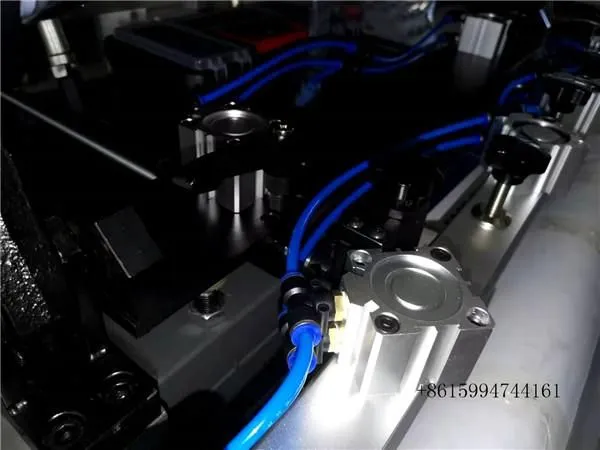

(4). Vacuum adsorption fixed printing pieces.
(5). The printing plate has up and down, left and right, before and after tuning device, which makes it works accurate and convenient on board.
(6). Equipped with a safety device so that the oblique arm is stopped in an upper position having a reliable security.
(7). Electronic control unit centralized control by the microcomputer controller, the whole operation more simple, flexible, and easy maintenance.
Hot Tags: Flat printing machine
Related auxiliary equipment: fully automatic gas-electricity hybrid mesh screen tensioner
