Semi Work video:
https://youtu.be/0t3mcGgDmAI
https://youtu.be/EbHi7yVJyh0
https://youtu.be/nHgEUuxKpk8
https://youtu.be/_8ARcMfjFrc
Auto work video
With normal uv tunnel run to left
/watch?v=REWl8zH-2Ik
With normal uv tunnel run to right
/watch?v=_LHgMCYg-ks
/watch?v=3bpxVNTvWF0
with led uv tunnel
https://youtu.be/6NGKTmtbf-w
with conveyor line run to left
/watch?v=lsC3sVF322E
big type printer with Automatic glitter powder spill machine test video
https://youtu.be/_efN9mhuo7Q
operating instructions
/docdvr/1963483/44230052/1443790819.pdf
PIC
/docdvr/1963483/45122367/1463122264.pdf
| Model No. | TMP-6090 | TMP-70100 | TMP-90120 |
| Size of worktable (mm) | 720X1000 | 800X1100 | 1000X1300 |
| Max printing area (mm) | 600X900 | 700X1000 | 900X1200 |
| Max frame (mm) | 900X1200 | 1000X1300 | 1200X1500 |
| Min frame (mm) | 450X550 | 550X650 | 650X700 |
| Substrate thickness (mm) | 0-20 | 0-20 | 0-20 |
| Printing speed (pcs/h) | 500-1200 | 500-1000 | 400-900 |
| Working pressure（Mpa） | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 |
| Air consumption 0.6Mpa | 13L/pcs | 13L/pcs | 13L/pcs |
| Height worktable to ground | 820mm | 820mm | 820mm |
| Dimensions（LXWXH）m | 1.55X1.15X1.46m | 1.8X1.37X1.5m | 1.95X1.55X1.55m |
| CBM | 3.9CBM | 4.1CBM | 4.7CBM |
| weight | 456kg | 480kg | 550kg |
| voltage /single phase | 220V 50Hz | 220V 50Hz | 220V 50Hz |
| power | 2.3kw | 3kw | 3.7kw |
Application:
Flat Screen Printer of this series is widely used in the packaging industry (cigarette packaging, wine packaging, gift packaging and other card paper printing) trademark, calendar, oil painting, computer keyboards, paintings, iron-on transfers, credit cards, stickers, printing; also suitable for the printing of the electronics industry.
Features:
(1). Printing machine is driven by motor drive, which is belt drive, sensitive, balanced speed, speed adjustable.
(2). Oblique arm lifting motor, frequency control, the machine runs smoothly.
(3). Blade and back blade pressure regulating device, and can be adjusted to the thickness and size of printing.

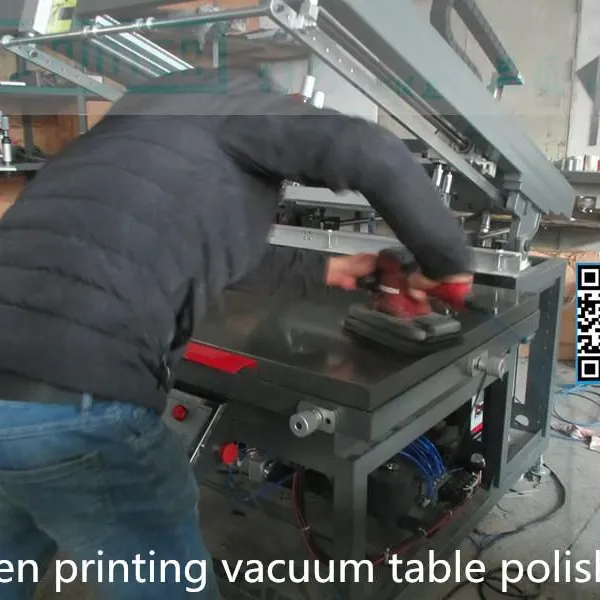

(4). Vacuum adsorption fixed printing pieces.
(5). The printing plate has up and down, left and right, before and after tuning device, which makes it works accurate and convenient on board.
(6). Equipped with a safety device so that the oblique arm is stopped in an upper position having a reliable security.
(7). Electronic control unit centralized control by the microcomputer controller, the whole operation more simple, flexible, and easy maintenance.
Screen printing is a printing technique whereby a mesh is used to transfer ink onto a substrate, except in areas made impermeable to the ink by a blocking stencil. A blade or squeegee is moved across the screen to fill the open mesh apertures with ink, and a reverse stroke then causes the screen to touch the substrate momentarily along a line of contact. This causes the ink to wet the substrate and be pulled out of the mesh apertures as the screen springs back after the blade has passed.
Hot tags: manual screen printing machine
Related auxiliary equipment: 25kw UV tunnel dryer for Glitter powder coating and uv glue coating
