TMP-100130A High precision line Semi-automatic Oblique Arm Screen Printer
- 1000 Set / Sets per Month
- shanghai
- T/T L/C
- 7 days
- TMP-90120 Oblique arm type flat screen printer
- TMP-100130 Spring automatic peeling screen Maquinas de serigrafia de gran tamano
- Two Color Tungsten Steel Ring for Tampoprint Pad Printing Machine
- Smart print Ceramic Scraper for Pad Pinter
- Pad Printer Consumable Pad printing machine special supplies
- plastic Ink Cup for tampoprint Pad Printer
Product Details
Brand Name: | Tamprinter | Model Number: | TMP-100130A |
Product Description

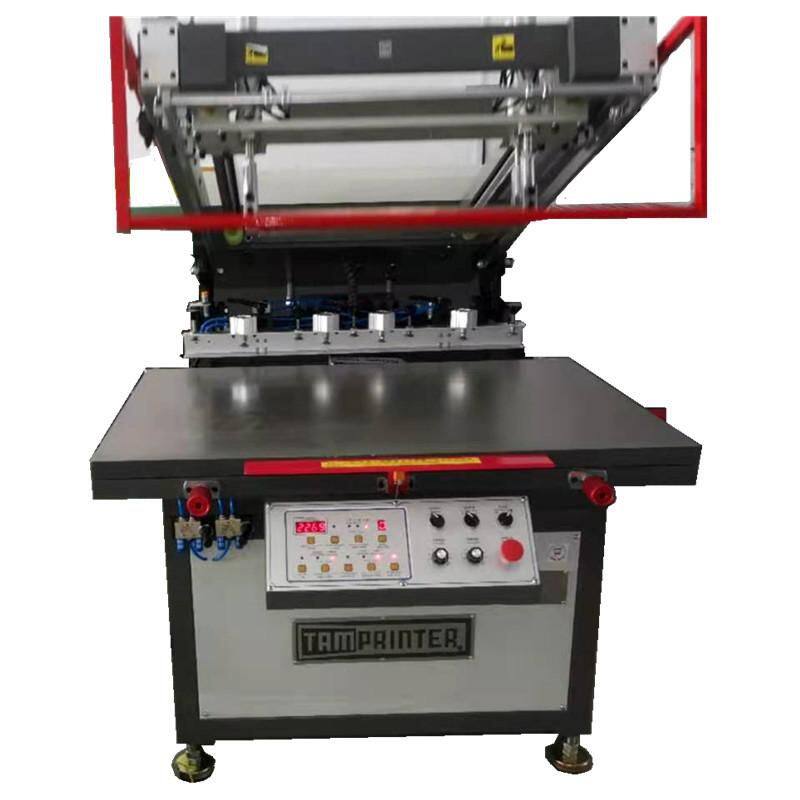

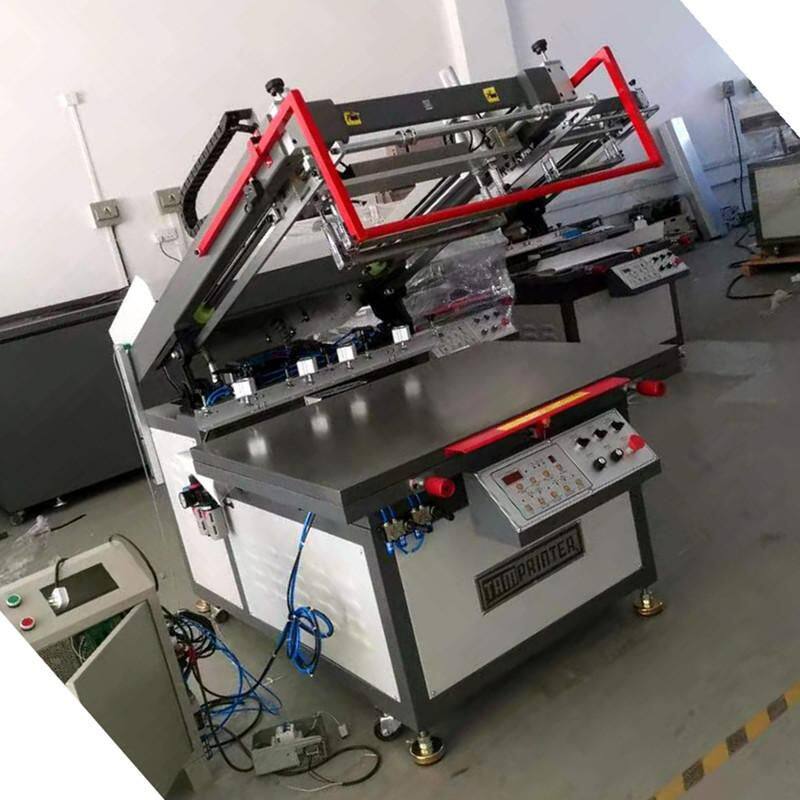

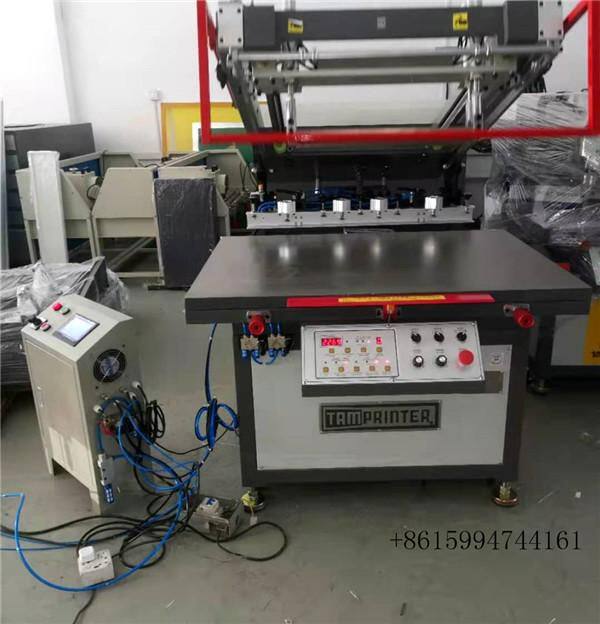

TMP-100130A Semi-automatic Oblique Arm Screen Printer
video link:
/p/CNRUir1g5qb/?igshid=1brykrow6pmd2
http://youtu.be/d0zJxbDc-Js
big type printer with Automatic glitter powder spill machine test video
https://youtu.be/_efN9mhuo7Q
youku Video
/v_show/id_XNTUxOTc1OTgw.html
/p/CJGR-3JrV8d/?igshid=165df0euae3yj
/p/CJFX-mZr0X8/?igshid=4kej31g27o2k
/p/CJFMWBVgubZ/?igshid=nhdmp8ow9lpc
/p/CJFLwVig3mW/?igshid=1j2ix51wiiqqg
1. Technical parameter:
Type | TMP-100130A |
Worktable area (mm) | 1100X1400 |
Max printing area (mm) | 1000X1300 |
Max screen fame size (mm) | 1300X1600 |
Thickness of materials (mm) | 20 |
Printing speed | 400~900pcs/h |
Air pressure (Mpa) | 0.4~0.8 |
Air consumption (L/pcs) | 13 |
Power | 5KW |
Max worktable height (mm) | 880 |
Dimension (LXWXH) | 2.38*1.95*1.6m |
Weight | 620kg |
Rated voltage | 380V/50Hz |
2. Application:
This series of flat screen printing machine is widely used in electronics industry (such as PCB, thin-film switch and so on), packaging industry (such as cigarette case, wine box, gift box and so on), paper board industry (such as trademark, calendar, oil painting, computer keyboard, new year picture, transfer print paper, adhesive sticker, credit card, plate board and so on).
3. Features:
(1). High precision line and synchronous printing transmission adopts motor drive, speed equality and can be adjusted, balanced speed, speed adjustable.
(2). Oblique arm lifting motor, frequency control, the machine runs smoothly.

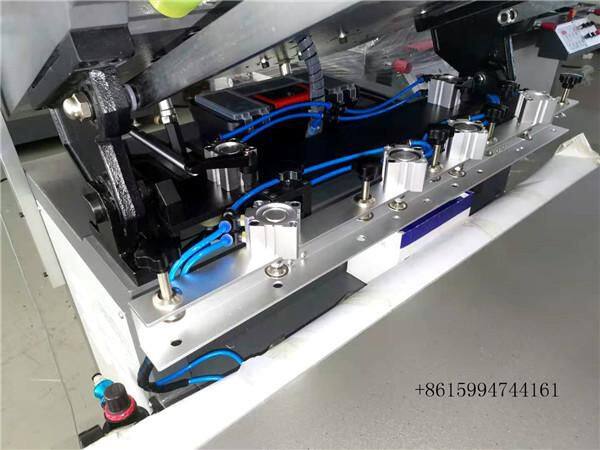

(3). Blade and back blade pressure regulating device, and can be adjusted to the thickness and size of printing.
(4). Vacuum adsorption fixed printing pieces.
(5). The printing plate has up and down, left and right, before and after tuning device, which makes it works accurate and convenient on board.
(6). Equipped with a safety device so that the oblique arm is stopped in an upper position having a reliable security.
(7). Electronic control unit centralized control by the microcomputer controller, the whole operation more simple, flexible, and easy maintenance.
Hot Tags: Flat printing machine
Related auxiliary equipment: fully automatic gas-electricity hybrid mesh screen tensioner

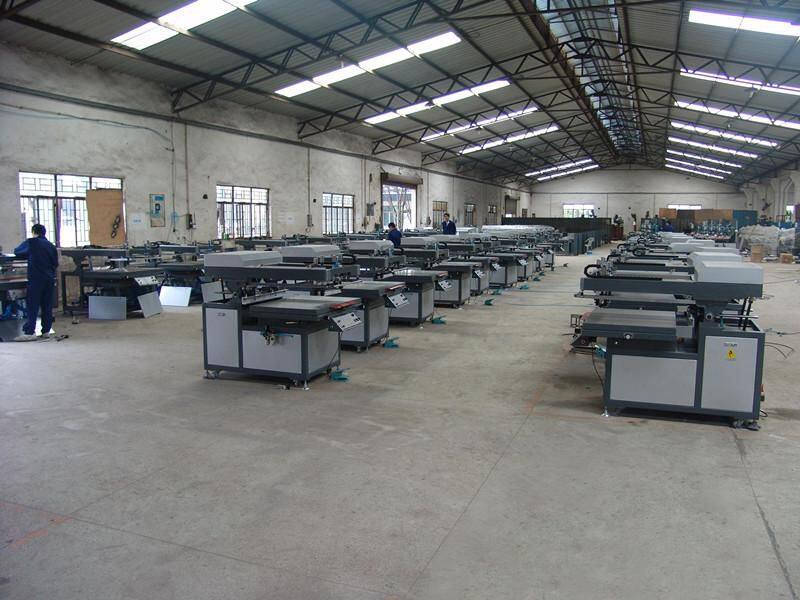

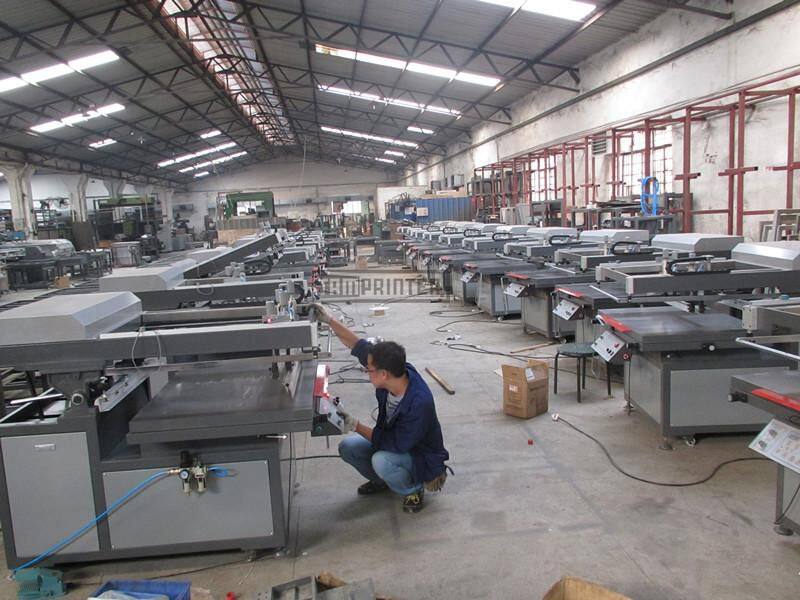

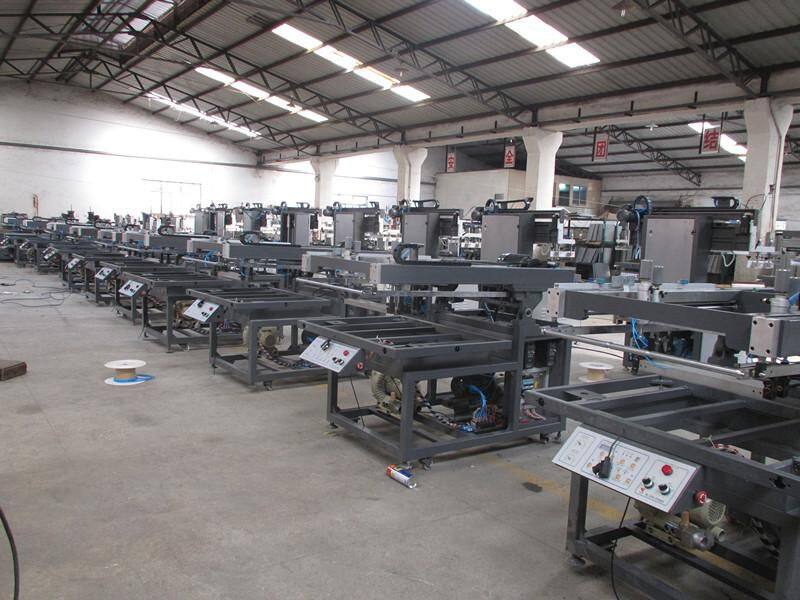

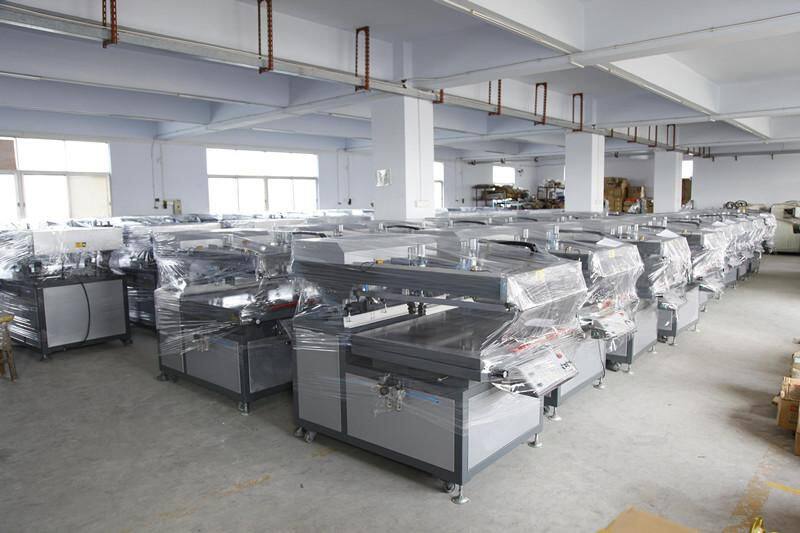

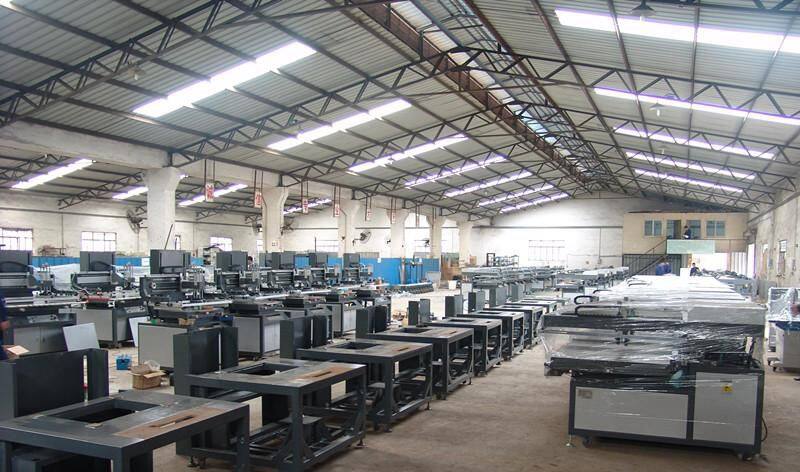

Company Profile
Tamprinter printing machinery group limited is one of the most professional special printer supplier of Plastic Field in China. We have supplied OEM service for the domestic counterparts since 2003. OEM products have been achieved CE certification.
Due to business expansion, Shenzhen Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products: Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Major market: Globle.
Business scopes:
1. Research, develop, produce and sell: Pad printer, Screen printer, Heat transfer machine, Hot stamping machine, Pre-post printer(UV curing machine, Flame treatment machine ,UV exposure clich machine, Coating emulsion machine, Silk mesh tighten machine, Screen stencil drying oven, Silk screen frame exposure machine, Steel pad plate oven, IR oven, IR drying tunnel conveyer, ) ;
2. Trade and authorize for the patent of the above products, Services about design, testing, maintenance, and technical consulting ;
3. Valet Manufacture: flame treatment gun,screen frame, Screen Stencil,pad, steel plates, film , Drying Racks Trolley and the relative moulds, jigs and parts;
4. Sale by proxy the relative supporting materials: printing ink, Ink Adjustment tool, Rubber pads Materials, Pad Printing Blade, ink cup and ring, Pad holder, ink roller, Screen Silk, Aluminium Screen Frame, Rubber Squeegee, sensitive emulsion, Emulsion Coating tool, Etching powder, Sensor Switch, Tension meter,Spraying gun, Circuit board, Inkwell, Solenoid Valve, hot stamping foil ,High temperature tape,Stamp plate,Silicon rubber roller,Heat transfer paper,High temperature glue, UV lamp ,UV lamps Trigger etc;
5. Our engineer can communicate with clients at anytime in english, design development use UG, Proe, Autocad, Mastercam ;
6. Import and export business of the above items.
