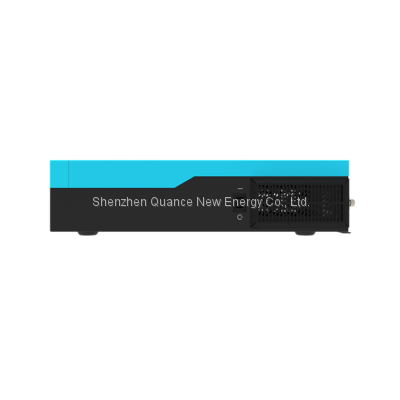

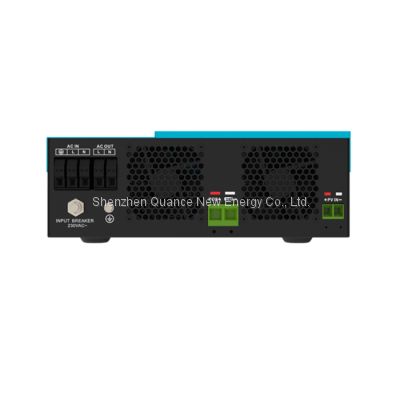

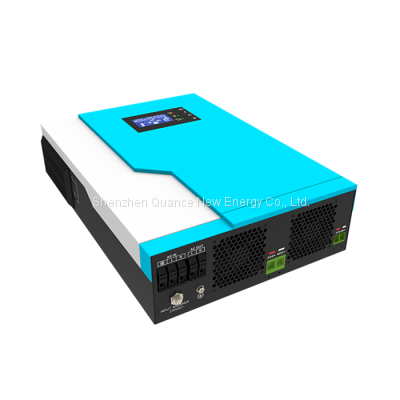

NM II PLUS SERIES 3.5KW 24V 5.5KW 48V OFF GRID PV SOLAR INVERTER CHINA MANUFACTURE PURE SINE WAVE
US$ 1 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Quance
Place of Origin:
China
Model Number:
NM II PLUS
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
New Energy Vehicle Power Bank NEV Power Box Solar NEV Charger SupplyNegotiableMOQ: 1 Piece -
Li-MAX Lithium Iron Battery Pack for Lead-Acid Battery Replacement Solar CellUS$ 1 - 100MOQ: 1 Piece
-
DUAL OUTPUT MAX 7.2KW 8.2KW 10.2KW SOLAR INVERTER WITH TOUCHABLE LCDUS$ 1 - 1000MOQ: 1 Piece
-
Lithium Iron Battery 51.2V LiFe PO4 Wall MountedUS$ 1 - 100MOQ: 1 Piece
-
Hot Selling Omron Inverter Omron Solar Inverter 3G3RX-A4185-Z 3G3RXA4185ZNegotiableMOQ: 1
Brand Name
Quance
Place of Origin
China
Model Number
NM II PLUS
Application
Home
Specification
Normal
Output Voltage (V)
24V
NM II PLUS SERIES 3.5KW 5.5KW OFF GRID PV SOLAR INVERTER
Features:
1.Pure sine wave solar inverter
2.Output power factor 1.0
3.WIFI&GPRS available for IOS and Android
4.Inverter can run without battery
5.Built-in 100A MPPT solar charger
6.High PV input voltage range(120-450VDC)
7.Built-in anti-dusk kit for harsh environment
8.Smart battery charge design to optimize battery life
| MODEL | 3.5KW | 5.5KW |
| Rated Output Power | 3500VA/3500W | 5500VA/5500W |
| Maximum Solar Charging Current | 100A | 100A |
| Input | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280VAC (personal computers);90-280VAC(home appliances) | |
| Frequency Rang | 50/60Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |
| Surge power | 7000VA | 11000VA |
| Efficiency (peak) Battery to INV | 94% | |
| Efficiency (peak) PV to INV | 97% | |
| Transfer Time | 10ms (for personal computer);20ms(for home appliances) | |
| BATTERY MODE OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Waveform | pure sine wave | |
| Efficiency (DC to AC) | 94% | |
| BATTERY & CHARGER | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating charge voltage | 27VDC | 54VDC |
| Overcharge Protection | 33VDC | 63VDC |
| Maximum Charge Current | 80A | 80A |
| SOLAR CHARGER | ||
| Maximum PV Array Power | 5000W | 6000W |
| MPPT Range @ Operation Voltage | 120-450VDC | |
| Maximum PV Array Open Current Voltage | 500VDC | |
| Maximum PV Array Open Current | 100A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension, Dx W x H(mm) | 100*300*440 | |
| Net Weight (kgs) | 11 | 12 |
| INTERFACE | ||

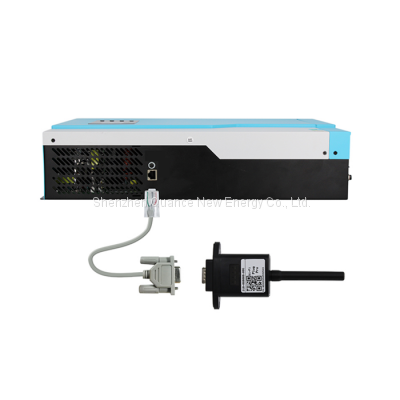

| Communication Port | USB/RS232/WIFI/GPRS | |
| ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | 0～55℃ | |
