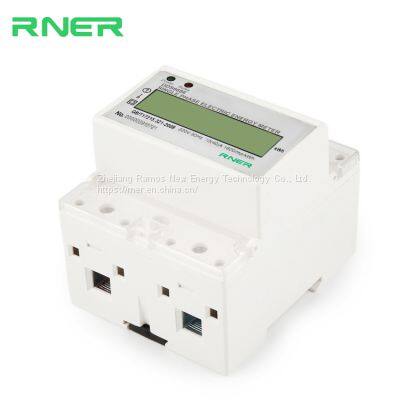

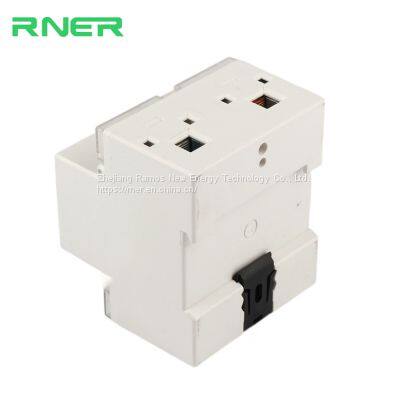

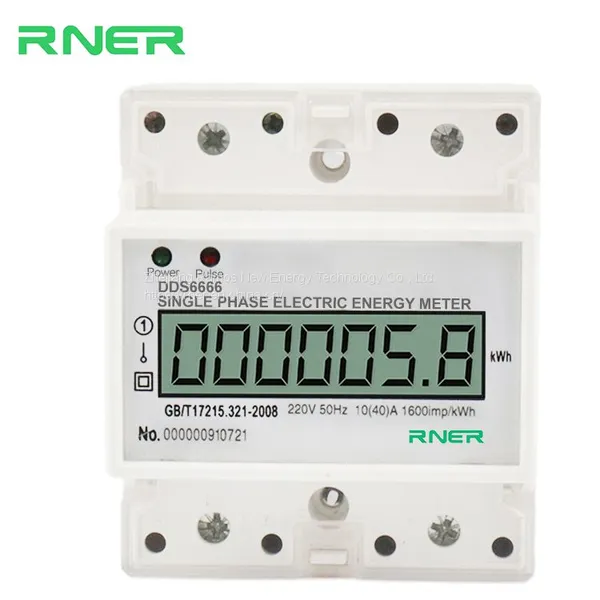

Kwh Single Phase Din Rail Electric Energy Mechanical Counter Meter Watt Hour Digital Power Single Phase Meters

Kwh Single Phase Din Rail Electric Energy Mechanical Counter Meter Watt Hour Digital Power Single Phase Meters thumbnail-1
Kwh Single Phase Din Rail Electric Energy Mechanical Counter Meter Watt Hour Digital Power Single Phase Meters thumbnail-2
Kwh Single Phase Din Rail Electric Energy Mechanical Counter Meter Watt Hour Digital Power Single Phase Meters thumbnail-3
Kwh Single Phase Din Rail Electric Energy Mechanical Counter Meter Watt Hour Digital Power Single Phase Meters thumbnail-4
Kwh Single Phase Din Rail Electric Energy Mechanical Counter Meter Watt Hour Digital Power Single Phase Meters photo-1
Kwh Single Phase Din Rail Electric Energy Mechanical Counter Meter Watt Hour Digital Power Single Phase Meters photo-2
Kwh Single Phase Din Rail Electric Energy Mechanical Counter Meter Watt Hour Digital Power Single Phase Meters photo-3
Kwh Single Phase Din Rail Electric Energy Mechanical Counter Meter Watt Hour Digital Power Single Phase Meters photo-4
US$ 6.9 - 8.5 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Single Phase DIN Rail mounting energy meter
Model Number:
Digital kilowatt hour meter
Phase:
Single Phase
Contact Supplier Request Quote Chat Now
Zhejiang Ramos New Energy Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Single Phase DIN Rail mounting energy meter
Model Number Digital kilowatt hour meter
Phase Single Phase
Output Voltage 220V
Operating Temperature -25℃~55℃
Dimensions 90*73.5*75mm
Display Type Digital Only
Accuracy Class 1.0
Measuring Energy Range 999999KWH
Product Paramenters
DDS single-phase rail-mounted energy meters are developed by Zhejiang Ramos New Energy Technology Co., Ltd. using microelectronic technology, large-scale integrated circuits, and SMT assembly process. The performance of these meters complies with both Chinese standards and international IEC62053-21 requirements for Class 1 or Class 2 single-phase energy meters. They accurately measure active energy in single-phase AC power grids operating at a rated frequency of 50Hz or 60Hz. This series of products features an LCD digital display, without a reset button, to prevent human manipulation of the data.
Voltage
200-250VAC
Current
0.1-80A
Reference Current (Max. Current)
5(80)A
Reference Voltage
220V/230V 50/60Hz
Operating Voltage
200-250VAC / 50Hz/60Hz
Operating Current
0.1-80A
Energy
0.1-99999.9 KWH
Power
0.1-17000W
Pole Width
17.5mm/0.7in
Material
Plastic
Installation
35mm DIN Rail
Wiring Method
Up-out and down-in/up-in and down-out
Product function

4P Kwh Meter Single Phase Digital
1.LCD digital display, optional function in communication:MODBUS RTS.
2.Accurate energy measurement using microelectronic and digital technology, with strong electromagnetic interference resistance and stable performance achieved through large-scale integrated circuits and precision surface-mount technology.
3.This product has the advantages of high reliability, small size, lightweight, attractive appearance, and convenient installation.


Product Tags: Digital Meter , single phase electric meter , Power Meter , Kwh Meters , Digital Watt Meter , home energy monitor , LCD Digital Display , Single Phase Din Rail Lcd Digital Display Electricity Power Consumption Energy Watt Meter , 35mm Standard Din Rail Meter
