Specifications
DMI100 multi-funtional level box1.360degrees measuring
2.Long term stability0.1degree

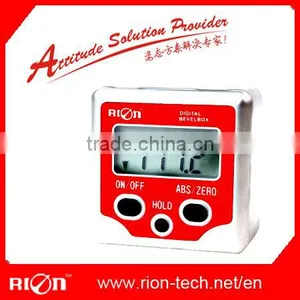

multi-funtional digital meter box, digital level box, bevel box with 360deg measurement range
General Description:
DMI100RealStar is a vest-pocket multi-funtional level box with high accuracy 0.1deg, Digital inclinometer is an innovative product that provides digital reading between±180(degrees) , Extra LCD is convenient to read. Measuring planecontaining disk magnet can stick to the surface to be measured.It is especiallyeasy to measure bevel angle of mitre saw ,automobile test and repair and soon...It performs the conversion between absolute measurement and relativemeasurement by simply pressing one button "ZERO"
The advanced sensortechnology and microprocessor circuit provide unsurpassed accuracy.Another special application is that display unit and tilt sensorunit is separated and connected by cable, The sensor unit is compact and easilyto assemble the place where you like. The shaft of tilt sensor is forconnecting the parts in machine. After the two units is connected with cable, thedisplay unit will show the angle when the sensor is tilted.The display unit canbe putted in the place at your wish. It is easily operate and read with twobuttons On/Off and Zero.T
Features:
1:Accuracy:0.1<90(degrees)
2:Repeatability:0.1(degrees)
3:Measurement range:±180(0-360degrees))
4:Power:3V Lithium battery
5:Data Quick reaction
6:Working Temperature 0-+45(Degrees Celsius)
7:Angle magnetic compensation
8:Data Hold Function
9:Waterproof:IP54
10:High accuracy vial optional
11:Strong magnet install
12:Separate structure can be used for various fields
13:Absolute&relative Zero Setting

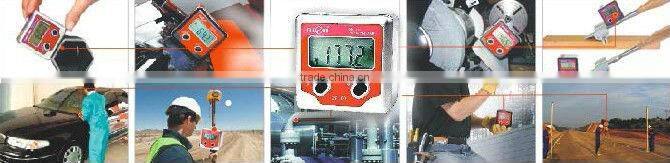

Applications:
1:Measuring plane containing disk magnet can stick to the surface to be measured.
2:Works great for miter saws and table saws.
3:Sets the angle of jointer fances and band saw tables.
4:Machine cone bevel measuring and bevel measuring in processing.
5:Telecommunication industry:Radar antenna angle calibration,elevation measuring for secondary planet antenna and television receiver.
6:Automobile:four-wheel location,pavement control and leveling for construction vehicles.
