Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > Digital Meter Digital ac Current Meter
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
GFUVE
Model Number:
FU2200
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing/Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Power Meter Series 3 Phase Network Power AnalyzerNegotiableMOQ: 1 Piece -
High Quality Digital Power Meter 3 Phase Power MeterNegotiableMOQ: 1 Piece
-
Multi-functional Network 3p3w Digital Power MeterNegotiableMOQ: 10 Pieces
-
LCD Panel Digital Meter 3p3w Power MeterUS$ 1 - 1,000MOQ: 1 Piece
-
Multi-function Internet Power Analyzer 3-phase Lcd Network Power MeterNegotiableMOQ: 1 Set
Place of Origin
Beijing, China
Brand Name
GFUVE
Model Number
FU2200
Measuring Current Range
0~6A
Measuring Voltage Range
30~600V
Accuracy Class
0.2%
Operating Temperature
-25 ~ 55 °C
Dimensions
Trepanning: 92 X 92mm

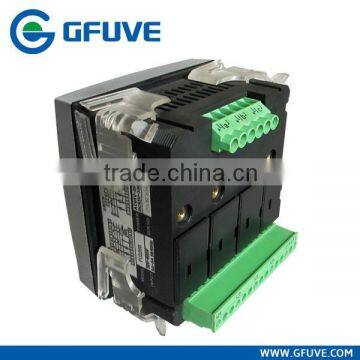

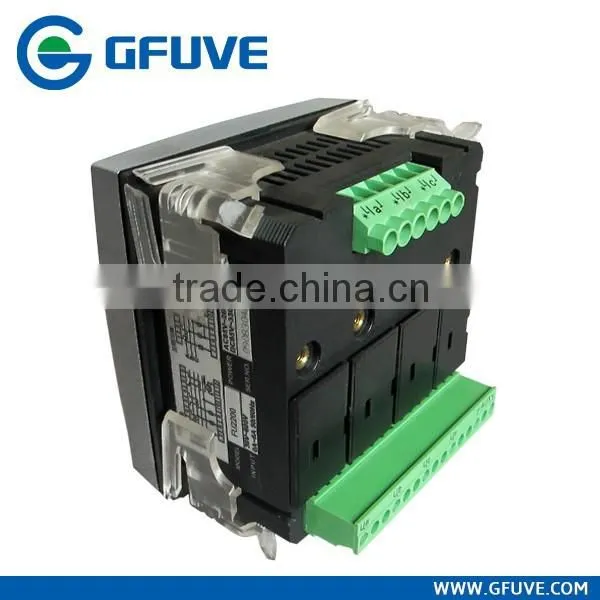

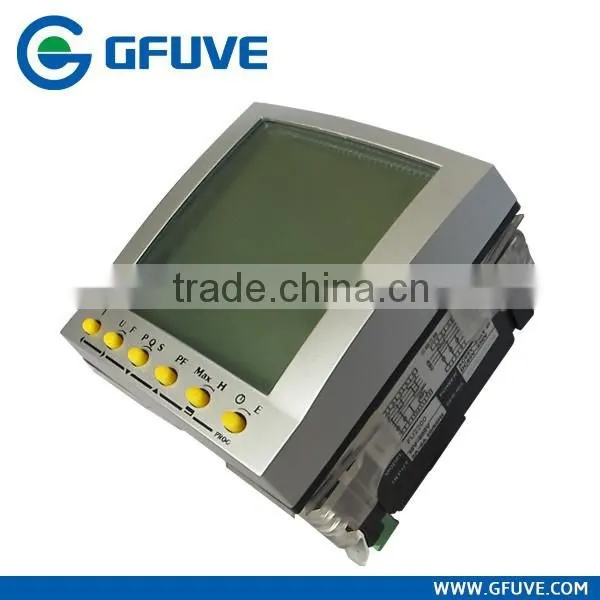

digital meter digital ac current meter
Product Description
FEATURES
- Multifunction power meter
- Measure all the electrical parameters
- It has RTC, calendar
- Accuracy class can reach 0.5s
- Pulse output is optional
- LCD display
PARAMETERS
| Electrical parameters | |
|---|---|
| Power supply (AC/DC) | AC 85-265V/DC 85-330V, DC18-90V (option) Power Consumption: <4VA |
| Measurement parameters | Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power (W); Reactive Power (Q); Apparent Power(S) |
| Computation | Forward active power energy Reverse active power energy Forward active power energy Reverse reactive power energy |
| Measuring range | 30-600V, 0-6A, 45-65Hz, -1 ~ 0 ~ 1 |
| Measuring accuracy | Frequency: 0.1% Electric energy: 0.5%, 1.0% Voltage : 0.2%±0.1V Current : 0.2%±0.001A Power : 0.5% ±0.4W Power Factor : 0.5% ±0.001 |
| Display | LCD Display, 128X64 Lattice, English and Chinese interface, 4 Displays. Green back-lit 4 operation keys. |
| Communication | RS-485 interface port support, 32(128) Networking, ModBus-RTU communication protocol. |
| Programmable | Measuring system: 3P4W/3P3W etc. Transformation ratio: PT, CT Communication: Address: 1-247; Baud: 1200-19200; Parity Bit: N/E/O RTC: year; month; day; hour; minute; second Energy: reset |
| Energy pulse (optional) | One active energy pulse output Pulse constant: 5000kWh Photocoupler output (0.1Ax30V) |
| Connection mode | 3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W |
| RTC | Accuracy drift less than 2.5min/year |
| Mechanical parameters | |
| Dimensions (mm) | Mounting Panel: 120x120 Thickness: 21 Depth: 118 |
| Mounting | Panel mounting Trepanning: 92x92mm |
| Environmental conditions | |
| Temperature | -25 to +55°C |
| Humidity | 20%-95%RH, without condensation |
