Home > Industrial Equipment & Components > Environment Protection Device > Waste Treatment Equipment > MED Approved 15ppm 5.0m3/h Marine Bilge Water Separator
US$ 4000 - 10000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
GOHI
Place of Origin:
China
Model Number:
YWC
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo, Shanghai
Delivery Detail:
5 days
Related Products
-
IACS Approved Marine Washing Room Waste Water Treatment PlantUS$ 5000 - 10000MOQ: 1 Set -
IACS Approved Marine Sewage Grey Water Treatment PlantUS$ 5000 - 10000MOQ: 1 Set
-
RMRS Approved 20 Persons Marine Compact Waste Water Sewage Treatment Plant STPUS$ 5000 - 10000MOQ: 1 Set
-
RS, EC, CCS Approved IMO MEPC 279(70) Standard 150m3/h Ship Marine Ballast Water Treatment System BWTSUS$ 50000 - 90000MOQ: 1 Set
-
EC Approved IMO MEPC107(49) Standard 15ppm Marine Bilge Oily Water SeparatorUS$ 4000 - 10000MOQ: 1 Set
Brand Name
GOHI
Place of Origin
China
Model Number
YWC
Basic Info.
Model NO.
YWC-5.0 Marine Bilge Water Separator
Structure
Fixed
Usage
Oil-Water Separator
Type
Press Filter
Mechanical Principle
Vacuum
Performance
Automatic
Rating Capacity
0.25m3/H~5 M3/H Oily Water Separator
Certificate
Ec,CCS.BV.RS Oily Water Separator
Oil Content in The Effluent Water
15 Ppm Oily Water Separator
with Equipment
15ppm Bilge Alarm
Standard
Imo.Mepc.107(49) Oily Water Separator
Pump
England Mono Pump
Electric Control Box
Germany Scheneider
15ppm Bilge Alarm
Included
Application
Used for Vessels,Seaport,Dock,Industry,Petroleum
Power of Pump
0.37~2.2kw
Transport Package
Plywood Case
Specification
15ppm bilge separator
Trademark
Oily Water Separator
Origin
China
HS Code
84211990
Production Capacity
120sets
Product Description

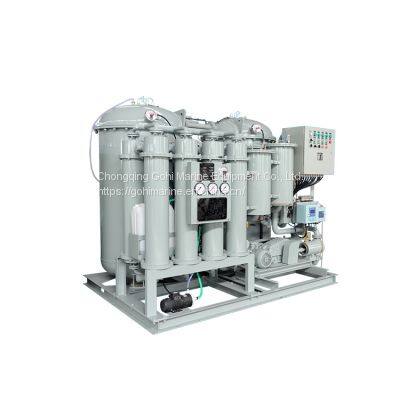

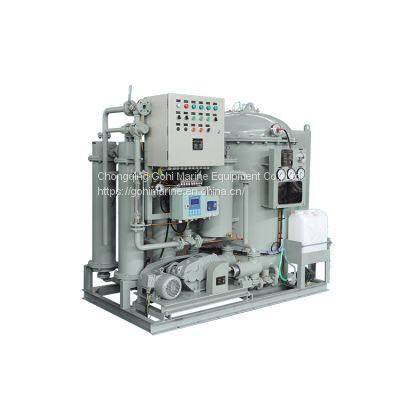

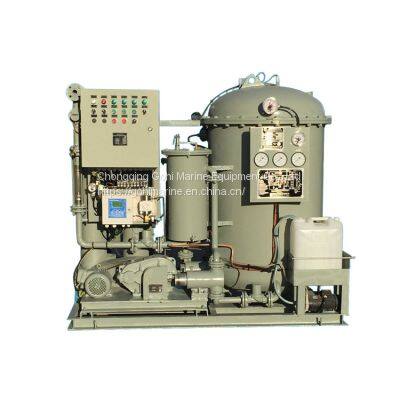

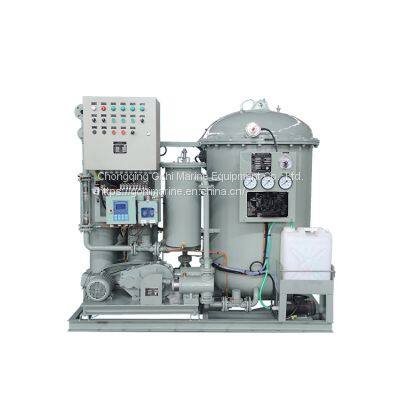

MED Approved 15ppm 5.0m3/h Marine Bilge Water Separator
1. Introduction of MED Approved 15ppm 5.0m3/h Marine Bilge Water Separator
YWC Series 15ppm Marine Bilge Oily Water Separator (15ppm Bilge Separator) is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC 107(49) standard, the oil content in effluent water ≤ 15ppm.
YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) of 9 types with the capacity from 0.25m3/h to 5.00 m3/h, The smallest type is YWC-0.25 which can be installed on ship less than 1000DWT. The biggest type is YWC-5.00 which can be installed on ship more than 300 thousand DWT. This separator can also be used in industrial and petroleum, besides in ship vessels.
2. Main parameters of MED Approved 15ppm 5.0m3/h Marine Bilge Water Separator
(1)capacity: From 0.25m3/h to 5m3/h Oily Water Separator
(2) Oil content in the effluent water ≤ 15 ppm
(3) Meet the standard of IMO MEPC. 107(49) Oily Water Separator
(4) Heating mode: Steam /electric heating
(5) CCS, EC,RS,BV certificate Oily Water Separator
(6) Applicable ship: Less than 1000 DWT to above 300 KDWT
(7) there are 9 types with different capacities
1. Introduction of MED Approved 15ppm 5.0m3/h Marine Bilge Water Separator
YWC Series 15ppm Marine Bilge Oily Water Separator (15ppm Bilge Separator) is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC 107(49) standard, the oil content in effluent water ≤ 15ppm.
YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) of 9 types with the capacity from 0.25m3/h to 5.00 m3/h, The smallest type is YWC-0.25 which can be installed on ship less than 1000DWT. The biggest type is YWC-5.00 which can be installed on ship more than 300 thousand DWT. This separator can also be used in industrial and petroleum, besides in ship vessels.
2. Main parameters of MED Approved 15ppm 5.0m3/h Marine Bilge Water Separator
(1)capacity: From 0.25m3/h to 5m3/h Oily Water Separator
(2) Oil content in the effluent water ≤ 15 ppm
(3) Meet the standard of IMO MEPC. 107(49) Oily Water Separator
(4) Heating mode: Steam /electric heating
(5) CCS, EC,RS,BV certificate Oily Water Separator
(6) Applicable ship: Less than 1000 DWT to above 300 KDWT
(7) there are 9 types with different capacities
3.MED Approved 15ppm 5.0m3/h Marine Bilge Water Separator
| Specification OF Oily Water Separator | |||||||||
| Type-YWC | 0.25 | 0.5 | 1 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 |
| Max Speed (m 3 /h) | 0.25-0.31 | 0.5-0.62 | 1.0-0.25 | 1.5-1.87 | 2-2.25 | 2.5-3.12 | 3-3.75 | 4.0-5.0 | 5-6.25 |
| Pump Power (kw) | 0.75 | 1.1 | 1.1 | 1.1 | 2.2 | 2.2 | 3.0 | 3.0 | 3.75 |
| Electrical Heating (kw) | 1 | 3 | option | option | option | -- | -- | -- | 10 |
| Steam Heating m 2 /kw | -- | -- | 1/30 | 1.5/45 | 2/60 | 2.5/75 | 3/90 | 4/120 | 5/150 |
| Height(mm) | 1320 | 1460 | 1500 | 1660 | 1700 | 1900 | 2020 | 1820 | 1900 |
| Weight(kg) | 450 | 800 | 860 | 1810 | 2260 | 2800 | 3260 | 3900 | 4600 |
| Marine (net weight) | 1000 | 1000 5000 | 5000 10000 | 10000 30000 | 30000 50000 | 50000 100000 | 100000 200000 | 100000 300000 | > 300000 |
