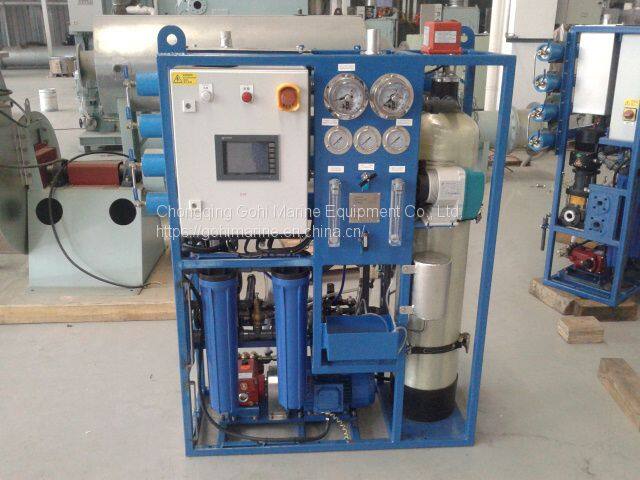

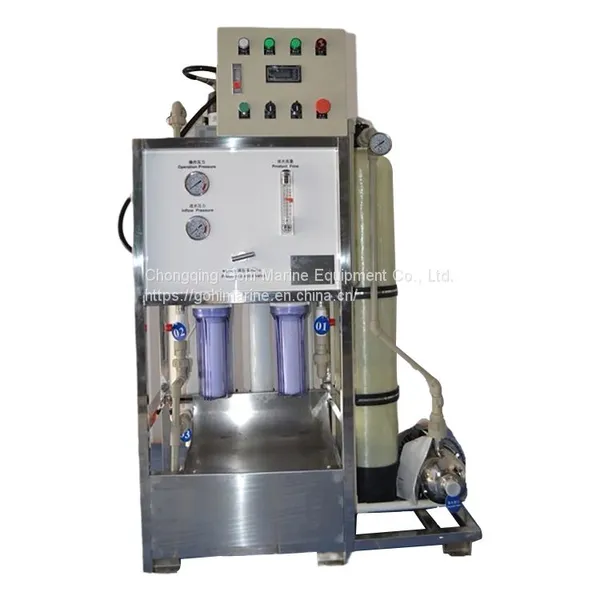

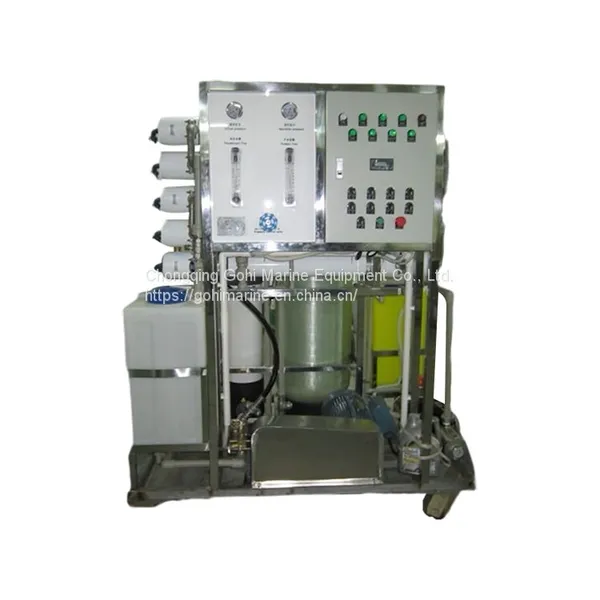

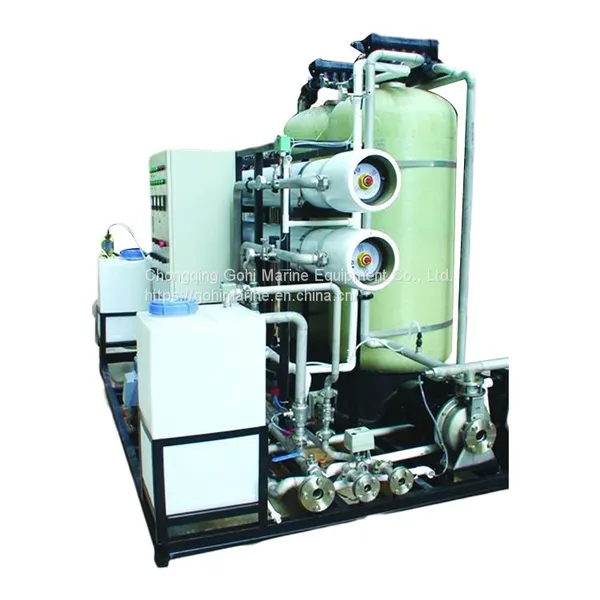

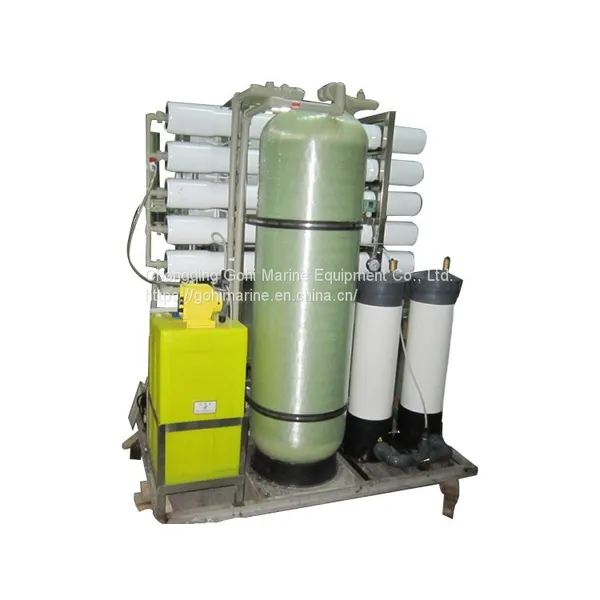

1T/D Reverse Osmosis RO Seawater Desalination Plant

Name: 1T/D Reverse Osmosis RO Seawater Desalination Plant
Brand: GOHI
Availability: InStock

FOB Price

US$ 2000 - 5000 / Set

1 Set(Min. Order)

Port Ningbo, Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GOHI		Place of Origin	China
Model Number	FSHB-1 Seawater Desalination Plant

Product Description

Model NO.

FSHB-1

Product Recover Rate

30%

Operating

Automation and Manual

Voltage

AC 380V/50 Hz(If Special, Can Be Customized)

Product Flow

1 M3/Day

RO Membrane

USA Dow(Optional)

High Pressure Pump

Grundfos(Optional)

Usage

Drinking Water, Industrial Process Water Treatment

Warranty

1 Years

Transport Package

International Standard Export Package

Specification

1400mm*700mm*1900mm

Trademark

GOHI

Origin

China

HS Code

8421219990

Production Capacity

200 Sets Per Month

Product Description

<1>Product Description

With world leading "Reverse Osmosis Membrane technology", the improved design seawater desalination equipment efficiently convert seawater into ultra clean and clear drinking water free from odors and bacteria.
The converted water meets the national drinking water quality standard .

Base parameter

Raw water
TDS	<=36000mg/L
Inlet Temperature	5~45ºC
Inlet Flow	2.08 m3/h

Product water
TDS	<=700mg/L(City tap water standard)
Salt Rejection rate	>=99.5%
Product Recovery rate	30%
Product Flow	15m3/day
Operating Pressure	<6.5Mpa

Power
Voltage	380V/50Hz/three-phase
Power	5.5 KW
Protection Levels	IP54

Work environment
Environment Temperature	0~45ºC
Air Humidity	20~90%

Product Specification

1000 Liter Per Day Small RO Seawater Desalination Plant for Boat and Borehole Water
Model	FSHB-1
Water Yield	1m3/d
Configurations	USA DOW RO membrane / Grundfos pump(Optional)
Application	Drinking Water, industrial process water treatment
Net Weight	650 KG
Dimension	1400mm700mm1900mm
Warranty	1 years

Design and manufacture

Servicing space	Face 1000mm, Back 700mm, The left and right side 1000mm.
High-pressure pump	Imported
Feed pump inlet size	DN25
Concentrate water outlet size	DN20
Product water outlet size	DN15

Features
1) The most advanced RO system and membrane component.
2) Efficient energy recovery technology.
3) Adoption of high-quality safety pressure relief device & observation system.
4) Stable operation & high-quality producing water.

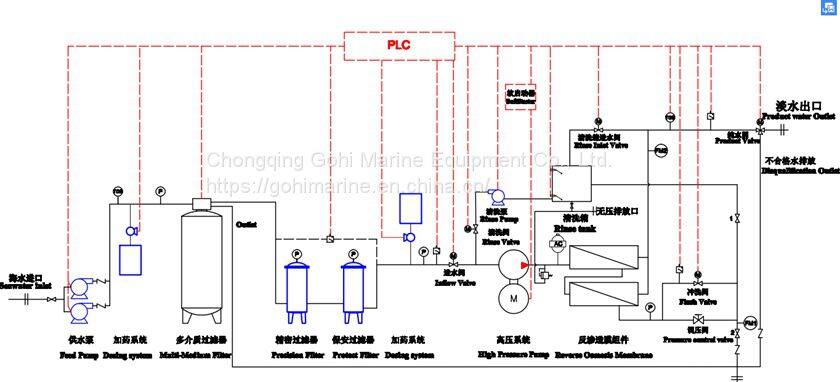

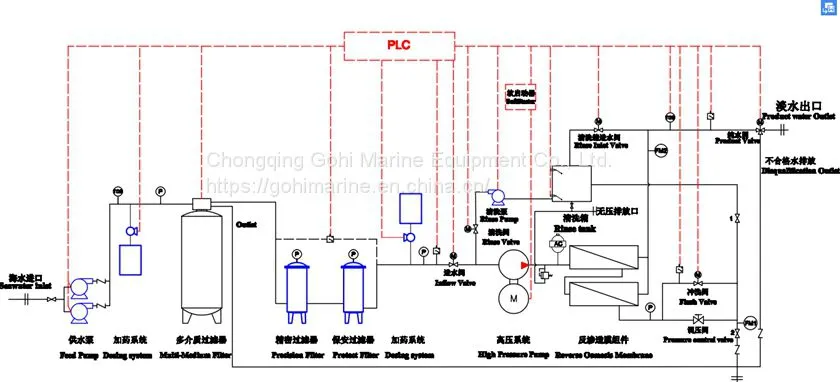

Process flow diagram
Raw water -- Multimedia filter -- Precision filter -- High pressure pump -- Reverse Osmosis system -- Product water

This equipment can make seawater get rid of mineral,Pb ppm,organism and bacteria and many others, and become ultra clean and clear freshwater which meets the national drinking water quality standard.

The system has installed new body case with all pipes made of resistant material, so that the whole system can use a long time.

RO system has adopted advanced RO system components and high-quality membranes elements, and has designed according to the equipment's output combining with unique efficient technology so that the system can save much energy.

More advanced devices has been installed in this system, such as flow and pressure control meters,atmospheric valve and blow down piping, which make sure the whole system work stably , safely and conveniently.

System components & introduction

Feed pump: Single water flow: 4m3/h Head of delivery: 30m Power:0.75 KW	Brand name: Grundfos(Optional) Providing backwashing and rinsing engine for multi medium filter and precision filter.
Multi medium filters: Dimension:Ø400x1600mm, FRP Single water output: >3m3/hr Output pressure: 0.4Mpa	The function of multi medium filter is to guarantee the entire alga, specially the suspended solid, minerals, metals and many other large particulate get rid of the original water .The filter can reduce the pollution index of the original water which can meet the RO system's requirement at a long term.
Precision Filter: 4m3/h,5μm,UPVC	The inner part of UPVC micro filtration filter is set 10um winding wire filter cartridge and 5umpp filter cartridge. In order to prevent the material leakage in filter and left suspended solid from entering the membrane system before water enter reverse osmosis equipment through passing activated carbon filter, a security filter should be set ahead of the membrane system. Taking account of the filtering effect, operation cost and convenience to replace the filter bag and other operation, this design adopts the most advanced filtration technology of our company.
High pressure pump:	Brand name: Grundfos(Optional) The effect of high pressure pump is to provide enough input pressure for reverse osmosis device. According to the nature of reverse osmosis itself, a certain degree of driving force is needed to overcome osmotic pressure and other resistance and to reach the specific productivity designed.
Reverse osmosis system:	RO membrane:DOW(Optional) RO system is the central desalination unit in this system, almost all soluble salt, colloid, organics and microbe will be cleaned out by applying the RO membrane's peculiarity. The qualified output water by pretreatment enter RO system. Water molecule throw membrane, collect by plumbing, finally, enter water tank. Concentrate water be collected by another plumbing, finally, it is exhausted. the system have valves, monitoring meter and programming controller operating system, they will ensure systematic running chronically.
Rinse system:	Ro system after running chronically, It can be polluted by some substances rinse out hardly. Micro-salt and organics scale chronically to make film performance decline, operating pressure go up, so system must be rinse with chemical agent, so that it return to normal.
Site online monitoring instruments:	In order to monitor the normal operating and realize automatic operation under certain conditions, we has equipped with site online monitoring and control instruments in the system, which includes:Pressure Switch,Safety Valve,RO output conductivity meter,Output Rota meter.
Device Framework:	The framework is made of industry-standard thick-walled stainless steel tube, and pipe outer surface is polished.
Control system:	Base control system: The basic components of Electrical control system adopt Schneider's components, with high-pressure pump and output pump of PLC control module control system. On-site control cabinet: Equipment operating interface has on-site control cabinet,which is made of color steel spray.

Working principle of seawater desalination plant

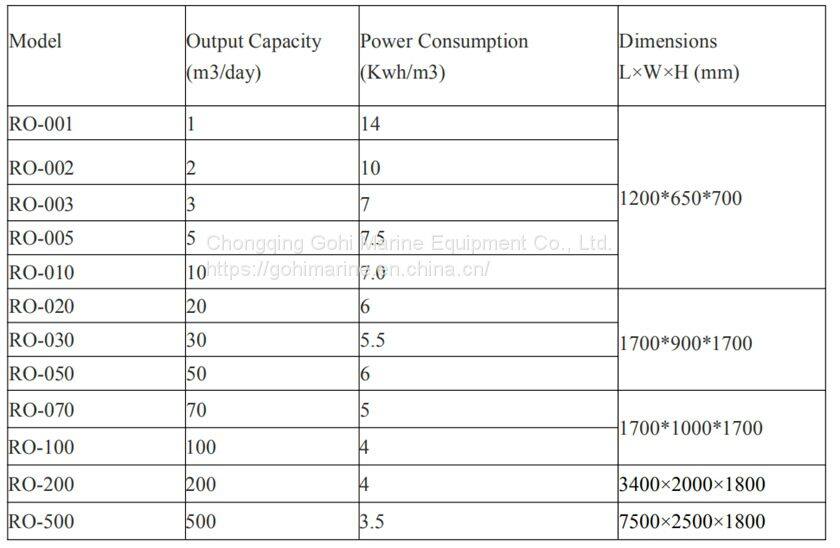

Seawater Desalination Plant Model List
