Original ICFRIEND Mipi Nb Max box + UFS 4 in 1 Socket UFS BGA 153,UFS 254,UFS 297 Adapter + E-MATE eMMC 13 in 1 Adapter. MiPi NB-Max is a tool intended for reading and writing user data on UFS and eMMC chips.
ICFRIEND MiPi NB-MAX eMMC UFS CHIP PROGRAMMER + MIPITESTER + BGA SOCKET ADAPTERS
ICFRIEND MiPi NB-MAX Box is compatible with the following models of Cell phones:
LG/Samsung/Huawei/ZTE/Lenovo/Oppo/Vivo
Features:
Read / Write eMMC and UFS memory chips
Supports ISP (In-System Programming)
UFS / UMCP / ISP - Data transfer speed
UFS/UMCP
UFS 2.0 / 2.1 / 3.0 / 3.1 supported
HS-G2 high speed mode
80-130 MB/s (writing) / 100-180 MB/s (reading)
for 100 MB higher speed you need to use USB 3.0 + high speed SSD
UFS ISP
Flying Line Mode PWM-G1 6-15MB/s (reading / writing)
EMMC/EMCP - Data transfer speed
EMMC 4.5 / 5.0 / 5.1 supported
HS200 80-120MB/s (write) / 120MB/s (read)
EMMC ISP 5-15MB/s (read / write)
Upgrade NAND / PCIE / NVME / NOR / SPI / I2C Flash
Supports UFS/UMCP dedicated descriptors, attributes, flags and other chip initialization and advanced settings
LUN cutting
Read / Write / Specify boot area
Read / Write EMMC/EMCP User Area and BOOT1/2
Read / Write advanced RPMB, GPP
Enhanced Area settings
Voltage output (VCC, VCCQ) 1.1 V - 3.3 V + intelligent short circuit protection
Supported BGA:
UFS BGA 254
UFS BGA 153
eMMC BGA 153-169
eMMC BGA 254
eMMC BGA 221
eMMC BGA 162-186

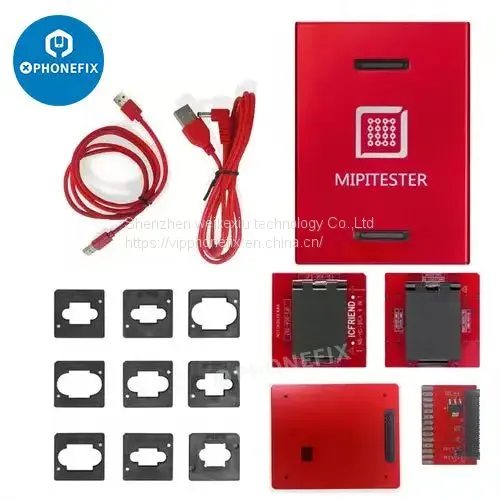

Package Content:
1x MiPi Tester Box
1x ISP Adapter
1x USB 3.0 Cable
1x USB 5V Cable
NB-EMMC-BGA 13 in 1 set:
eMMC-BGA221
eMMC-BGA529
eMMC-BGA162-186
eMMC-BGA136
eMMC-BGA168
eMMC-BGA153
eMMC-BGA169
eMMC-BGA100
eMCP-BGA254
eMCP-BGA186
eMCP-BGA136
eMCP-BGA529
eMCP-BGA168

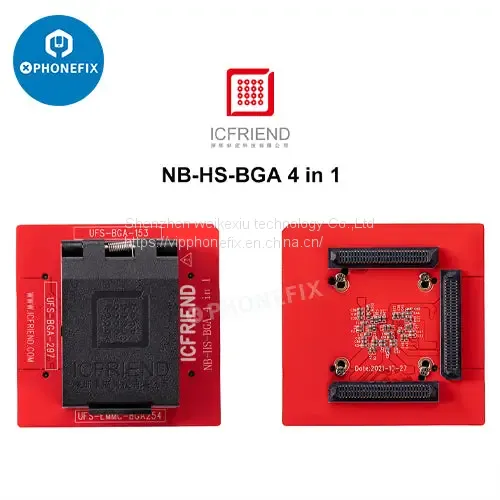

NB-HS-BGA 4 in 1 set:
UFS-BGA-297
UFS-eMMC-BGA254
UFS-153
1x EMMC UFS P1 Adapter
