Help CenterHW Chrysanthemum USB 1.0 Engineering Cable For HUAWEI Phone
Related Products
-
IMFC Function 1 Year Activation For Unlock Repair Apple WatchUS$ 79 - 80MOQ: 1 Piece -
JABEUD UD-1600 Mac Adapter Box Kill Mac For Macbook Unlock RepairUS$ 355 - 356MOQ: 1 Piece
-
R-SIM 17 IOS15 Unlocking Card For IPhone 6-13 Pro MaxUS$ 6 - 7MOQ: 1 Piece
-
R-SIM 16+ IOS15 5G SIM Unlock Card For IPhone 6-13 Pro MaxUS$ 6 - 7MOQ: 1 Piece
-
HW Chrysanthemum 3rd Gen USB 1.0 Engineering Port For Huawei RecoveryUS$ 1 - 2MOQ: 1 Piece

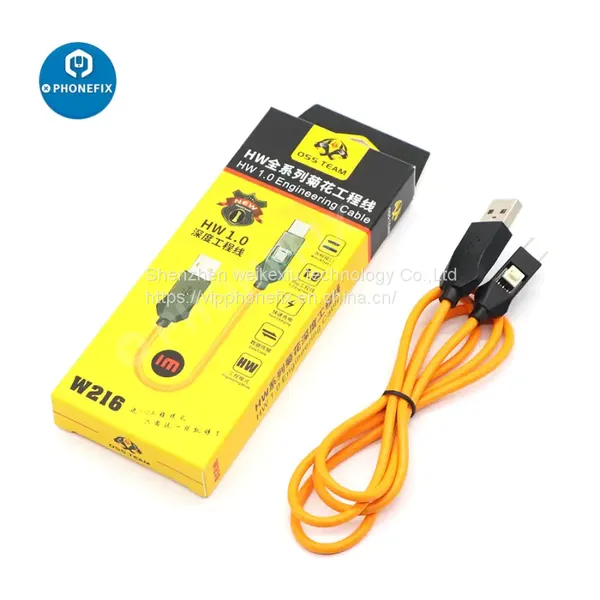

OSS TEAM W216 HW Chrysanthemum USB 1.0 Engineering Cable solves Huawei mobile phones without USB 1.0 port after disassembling and short circuit, HW Chrysanthemum 1.0 Engineering Port fix tool with switch button for Huawei phone repair.
Features:
1. HW Chrysanthemum 1.0 Port solves mobile phone without USB 1.0 port after disassembling and short circuit.
2.HW Chrysanthemum 1.0 Port solves mobile phone without USB1.0 port problem without Font disassembly
3.HW Chrysanthemum 1.0 Port with switch button, which is more stable.
4. Independent power supply, not 5V, short circuit will not burn the phone.
5. With led indicator (power/power on indicator).
6.It can't unlock directly, just let the phone enter USB1.0.
Button description:
1. It can be used as a normal cable without any operation;
2. Press the button to force the USB 1.0 port to start the engineering mode.
Instructions for use:
1. Disassemble the mobile phone and short-circuit (short-circuit the point according to the respective software prompts)
2. Insert the engineering cable into the mobile phone, press the button to start the engineering mode.
3. The USB 1.0 port that will appear on the computer, then burn the bottom layer through the software (that is, turn on the BL)
4. After writing the bottom layer and switch to fast boot mode. press the switch twice (each time interval is 3 seconds; you can test it yourself)
5. The driver will appear on the computer port, and then other operations can be performed.
Note: This product is an auxiliary tool, and the back cover needs to be removed and short-circuited; It cannot be unlocked directly, it can only enter the 1.0 project mode.
