Ceramic fiber could be used for heat insulating because of its air porosity of 90% inside it. Based on its 1260C classified temperature, the ceramic fiber is an ideal substitutes for asbestos product used for thermal insulation and heat protection. It doesn’t burn, rot, mildew, deteriorate, resist most acids and has low thermal expansion.

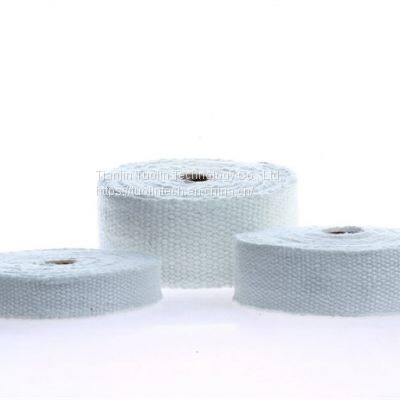

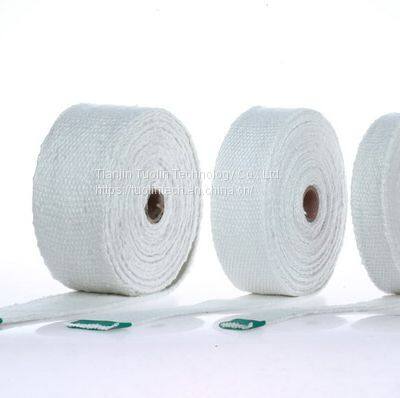

Tianjin Tuolin Technology Ceramic fiber cloth is a woven fabric made of type 1260C ceramic fiber yarns. The ceramic fiber cloth contains about 15~18% binder materials which should be added when spinning the ceramic fiber yarn. And the stainless steel wire and the fiberglass filament inside could keep the ceramic fiber cloth high temperature performance when it is used.
Ceramic fiber Composition: Al2O3 : 45~47%, SiO2 : 49~55%, Fe2O3 <1.2%
Ceramic fiber diameter: 2~6um
Ceramic fiber length: >50mm
Thermal Conductivity(800℃): 0.17 W/m·K
Shot:<8.5%
Classification Temperature: 1260 ℃
Melting Temperature: 1760 ℃
Thickness: 2mm - 6mm
Width: 20mm – 300mm
Length: 30m or 50m
Density: 500kg/m3
Binder: Viscose, Polypropylene, Polyester
Glass fiber Reinforced: E-glass, C-glass, -(650℃)
Stainless steel wire Reinforced: Inconel wire, SUS304, SUS316, SUS310, SUS201,-(1050℃)
The ceramic fiber tape could be used in industrial thermal insulation, piping and electrical cable lining, shielding against heat radiation, high temperature oven door curtain, flange jointing with bolts (for ladder tape), pipe wrap, high temperature gaskets for flanges and wrapping material, friction reinforcement materials, etc.
