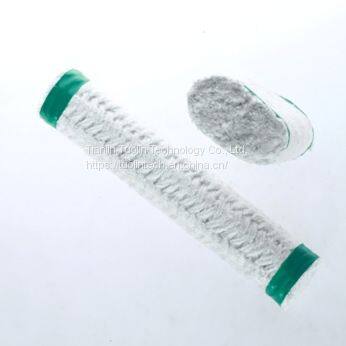

Ceramic fiber rectangle packing

Ceramic fiber could be used for heat insulating because of its air porosity of 90% inside it. Based on its 1260C classified temperature, the ceramic fiber is an ideal substitutes for asbestos product used for thermal insulation and heat protection. It doesn’t burn, rot, mildew, deteriorate, resist most acids and has low thermal expansion.

Tianjin Tuolin Technology Ceramic fiber cloth is a woven fabric made of type 1260C ceramic fiber yarns. The ceramic fiber cloth contains about 15~18% binder materials which should be added when spinning the ceramic fiber yarn. And the stainless steel wire and the fiberglass filament inside could keep the ceramic fiber cloth high temperature performance when it is used.

Ceramic fiber Composition: Al₂O₃ : 45~47%, SiO₂ : 49~55%, Fe₂O₃ <1.2%

Ceramic fiber diameter: 2~6um

Ceramic fiber length: >50mm

Thermal Conductivity(800℃): 0.17 W/m·K

Shot:<8.5%

Classification Temperature: 1260 ℃

Melting Temperature: 1760 ℃

Size: 10×20mm – 50×120mm

Length: 200m - 10m

Density: 600~800kg/m3

Binder: Viscose, Polypropylene, Polyester

Glass fiber Reinforced: E-glass, C-glass, -(650℃)

Stainless steel wire Reinforced: Inconel wire, SUS304, SUS316, SUS310, SUS201,-(1050℃)

The ceramic fiber rectangle packing could be used in thermal insulation and sealing of various stove and boiler, burner sealing, seal for heat exchange, kiln car, seal or insulation for heat resistant in furnace and seal for high temperature purpose.
