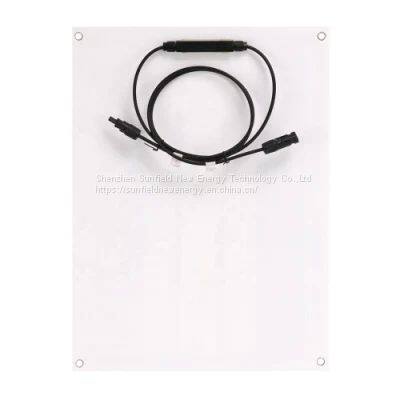

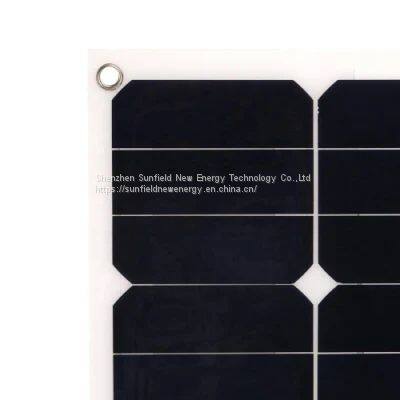

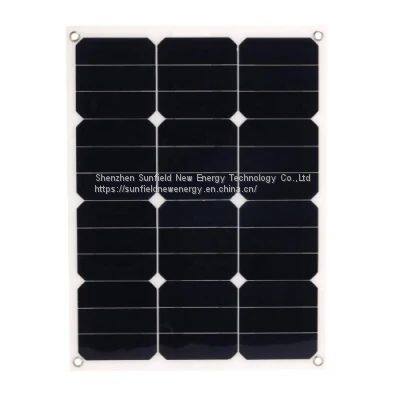

40W 19.8V high efficiency mono flexible solar panel
Poduct Features:
1) Better flexibility: can be bending angle up to 40-50 degrees.
2) Durable with TPT back sheet, no glass, no frame.
3) Light weight for easy carrying&shipment and installation, 83% lighter than normal rigid panel.
4) Thin: the thickness is only 2.5mm, which is more suitable to your yacht or RV roof , boat etc...
5) Can be stepped on it with soft soled shoes.
6) Made by back-contact mono Sunpower solar cells, the efficiency can reach 24% max.
7) 30% high power output than market solar panels, steady perfect generate power performance.
8) Round corners to prevent from being scratched.
9) ETFE film to make the life time to reach 10 years at least.
10) Can be installed with clue, adhesive, screws, or grommets at the corners.
11) Widely used: golf cars, yachts, boats, caravans, electric cars, travel tourism cars, patrol cars, roofs, camping, roof power generations, tents, portable bags, backpacks, portable generator kits etc..
Product Features:
MONO/POLY |
MONO |
Item No. |
SFED-F40SP |
Cell brand |
USA SunPower cells |
Maximum power (Wp) |
40 |
Maximum power voltage (V) |
19.8 |
Maximum power current (A) |
2.02 |
Open circuit voltage (V) |
23.8 |
Short circuit current (A) |
2.22 |
Cell efficiency (%) |
23% |
Number of cells (Pcs) |
36(9*4) |
Size of cell (mm) |
125*125 |
Size of module (mm) |
545*415*2.5 |
Weight per piece (KG) |
≈1.85 |
Front side material |
PET or ETFE |
Junction Box Type |
IP67, 2 bypass diodes inside |

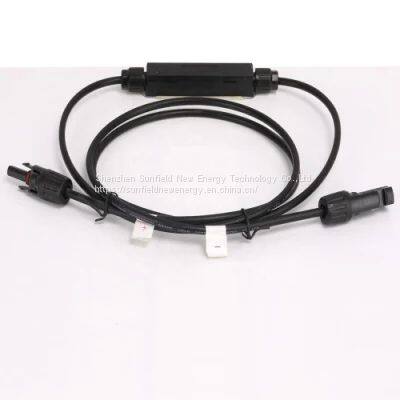

Cables and length |
2.5mm², 900mm+MC4 connectors |
Grommets |
Φ6mm/8mm/10mm |
Connector |
MC4 |
Maximum System Voltage |
700V |
Maximum Series Fuse Rating |
10A |
Temperature Range |
-40---+85℃ |
Power guarantee |
5 years for the whole products, 90% power for 5 years, 80% power for 10 years. |
Company Profile:
Company Name: Shenzhen Sunfield New Energy Technology Co., Ltd
Year established: 2015
Type of company: factory/manufacturer
Main Products: glass type mono and poly solar panels, flexible solar panels, portable folding solar chargers, PET laminated solar panels, small solar generators.
Solar cells used: USA SunPower back contact solar cells, Hetero-junction cells, Perc cells...
Certificates: ISO, CE, ROHS, UCKA.
Address: 201, No. 33-5, Gong Keng Lang Industrial Park, Xintian Community, Guanhu Street, Longhua District, Shenzhen, China.
Packing:
Carton box +wooden pallet/wooden case
