100W 19.8V high efficiency mono flexible solar panel
- 1000 Piece / Pieces per Month
- Shenzhen
- T/T
You May Like
-
55W 18V high efficiency mono flexible solar panel
-
130W 19.8V high efficiency mono flexible solar panel
-
235W 37.5V high efficiency mono flexible solar panel
-
7W 6.6V high efficiency mono flexible solar panel
-
20W 19.8V high efficiency mono flexible solar panel
-
140W 22.5V high efficiency mono flexible solar panel
Product Details
Brand Name | SUNFIELD | Place of Origin | China | |
Model Number | SFED-F100HDT | Size | 950*540*2.5MM | |
Max. Power | 100W | Number of Cells | 33 |
Product Description

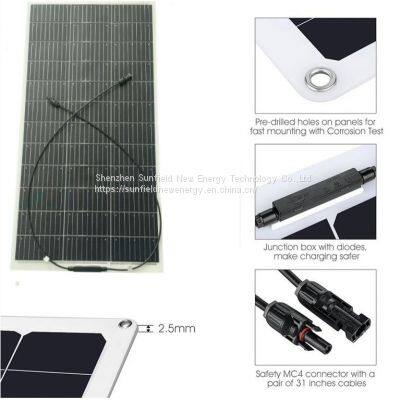

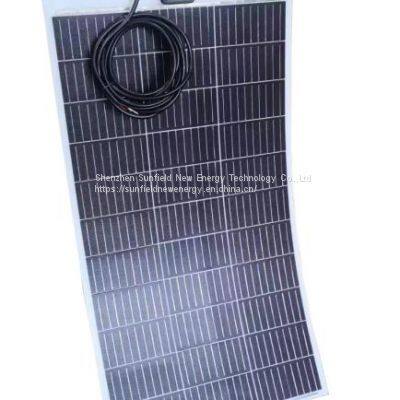

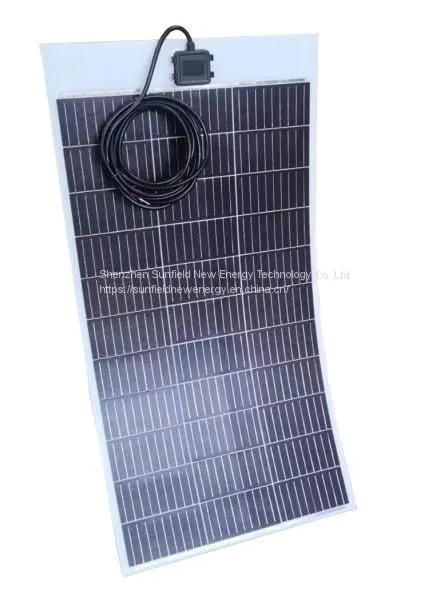

100W 19.8V high efficiency mono flexible solar panel
Product Features:
1) Better flexibility: can be bending angle up to 40-50 degrees.

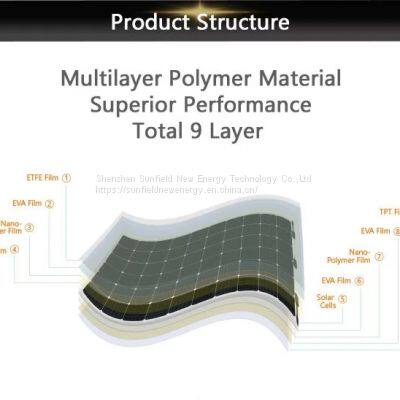

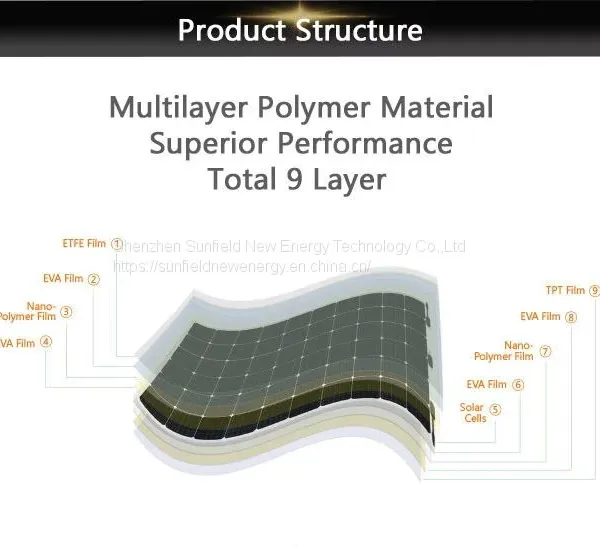

2) Durable with TPT back sheet, no glass, no frame.
3) Light weight for easy carrying&shipment and installation, 83% lighter than normal rigid panel.
4) Thin: the thickness is only 2.0-2.5mm, which is more suitable to your yacht or RV roof , boat etc...
5) Can be stepped on it with soft soled shoes.

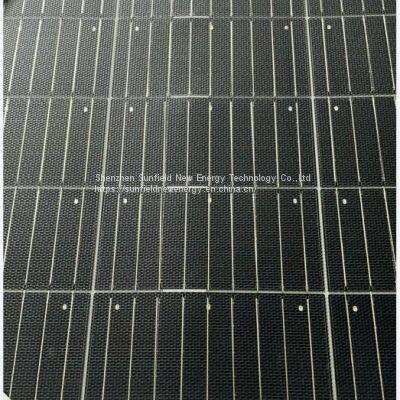

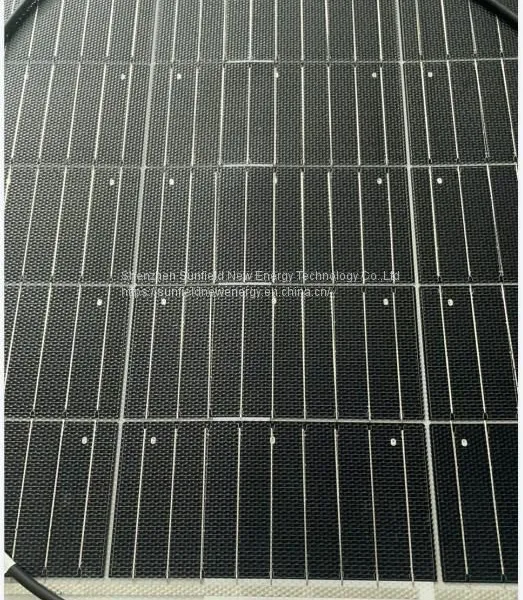

6) Made by double-side mono Hetero-junction solar cells, the efficiency can reach 25% max.
7) 30% high power output than market solar panels, steady perfect generate power performance.
8) Rounding corners to prevent from being scratched.
9) Hardening process surface prevent from scratched.
10) Can be installed with clue, adhesive, screws, or grommets at the corners.

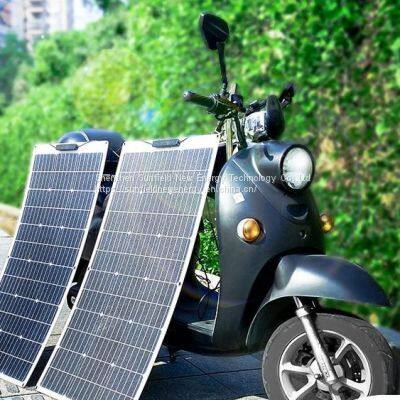

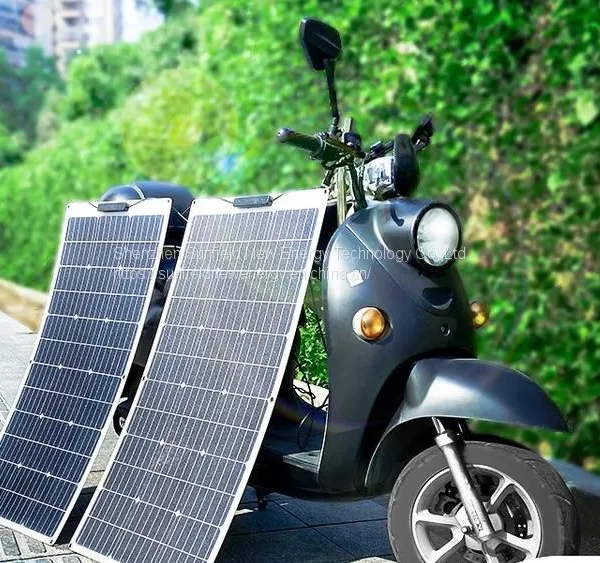

11) Widely used: golf cars, yachts, boats, caravans, electric cars, travel tourism cars, patrol cars, roofs, camping, roof power generations, tents, portable bags, backpacks, portable generator kits etc..
Product Specification:
MONO/POLY | MONO |
Item No. | SFED-F100HDT |
Cell brand | Hetero-junction solar cells |
Maximum power (Wp) | 100 |
Maximum power voltage (V) | 19.8 |
Maximum power current (A) | 5.05 |
Open circuit voltage (V) | 22.9 |
Short circuit current (A) | 5.45 |
Cell efficiency (%) | ≥24% |
Number of cells (Pcs) | 33(3*11 pcs of 1/2 cells) |
Size of cell (mm) | 158.75*158.75 |
Size of module (mm) | 950*540*2.5 |
Weight per piece (KG) | ≈1.10 |
Front side material | PET or ETFE |
Junction Box Type | IP67, 2 bypass diodes inside |
Cables and length | 2.5mm², 900mm+MC4 connectors |
Grommets | Φ6mm/8mm/10mm |
Connector | MC4 |
Maximum System Voltage | 700V |
Maximum Series Fuse Rating | 15A |
Temperature Range | -40---+85℃ |
Power guarantee | 5 years for the whole products, 90% power for 5 years, 80% power for 10 years. |
Company Profile:
Company Name: Shenzhen Sunfield New Energy Technology Co., Ltd
Year established: 2015
Type of company: factory/manufacturer
Main Products: glass type mono and poly solar panels, flexible solar panels, portable folding solar chargers, PET laminated solar panels, small solar generators.
Solar cells used: USA SunPower back contact solar cells, Hetero-junction cells, Perc cells...
Certificates: ISO, CE, ROHS, UCKA.
Address: 201, No. 33-5, Gong Keng Lang Industrial Park, Xintian Community, Guanhu Street, Longhua District, Shenzhen, China.
Packing:
Carton box +wooden pallet/wooden case
