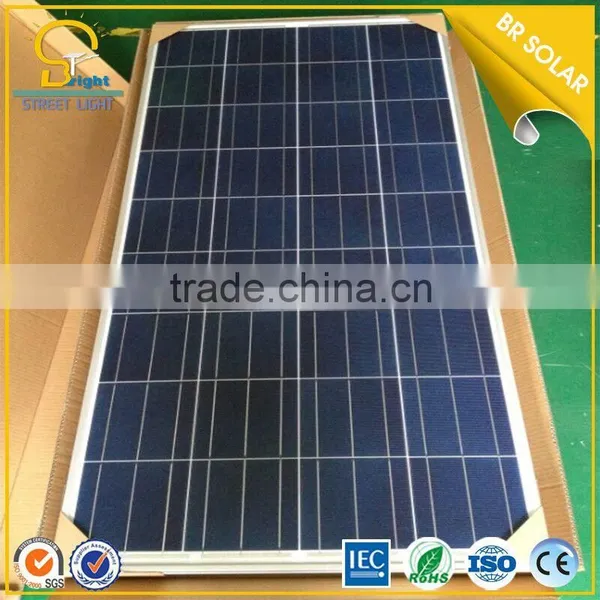

Sunpower solar panel system solar panel kit China supplier
The type of solar panel
Monocrystalline cells are cut from a single crystal of silicon- they are effectively a slice from a crystal.
In appearance, it will have a smooth texture and you will be able to see the thickness of the slice.
These are the most efficient and the most expensive to produce. They are also rigid and must be mounted in a rigid frame to protect them.
Polycrystalline (or Multicrystalline) cells are effectively a slice cut from a block of silicon, consisting of a large number of crystals.
They have a speckled reflective appearance and again you can you see the thickness of the slice.
These cells are slightly less efficient and slightly less expensive than monocrystalline cells and again need to be mounted in a rigid frame.
Technical Specification:
Specification for 280W Solar Modules | |
Product Name: |
280Watts Solar Panel |
Model Number: |
BR-P280W |
Place of Origin: |
China |
Solar cell spec: |
156*156 Poly crystalline silicon solar cells |
Specifications: |
PV module with 280W maximum power |
Max. system voltage: |
1000V DC |
Power tolerance: |
0%-3% |
Surface max. load capacity: |
70m/S(200KG/sq.m) |
Weight: |
22.5KG |
Dimensions: |
1950mm*990mm*50mm |
Electrical characteristics: | |
Vmp(V): |
35.2V |
Imp(A): |
7.95A |
Voc(V): |
44.8V |
Isc(A): |
8.33A |
Cell efficiency(%): |
≥16.4% |
Module efficiency(%): |
≥14.4% |
FF(%): |
70-72% |
Conditions (STD): | |
Bypass Diodes |
3pcs 15A |
Irradiance: |
1000W/M2 |
Temperature: |
25°C |
Absolute maximum rating: | |
Operating temperature: |
-40°C to +80°C |
Storage temperature: |
-40°C to +80°C |
Packing: |
2 PCS/CTN |
Payment: |
30% TT in advance, 70% before shipment or against copy of B/L. |
Junction box |
TUV Certified,MC4 Connector, Water-proof. |
Glass |
High-Transmission,Low iron tempered glass. |
Limited Warranty |
Warranty: 5 years. |
Solar PV Module Panel Pack: carton and pallet packing;
Applications

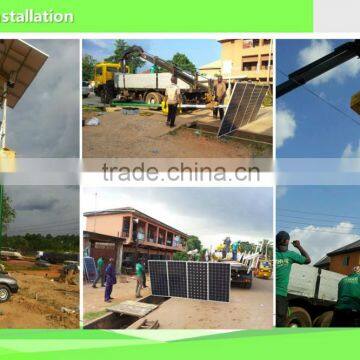

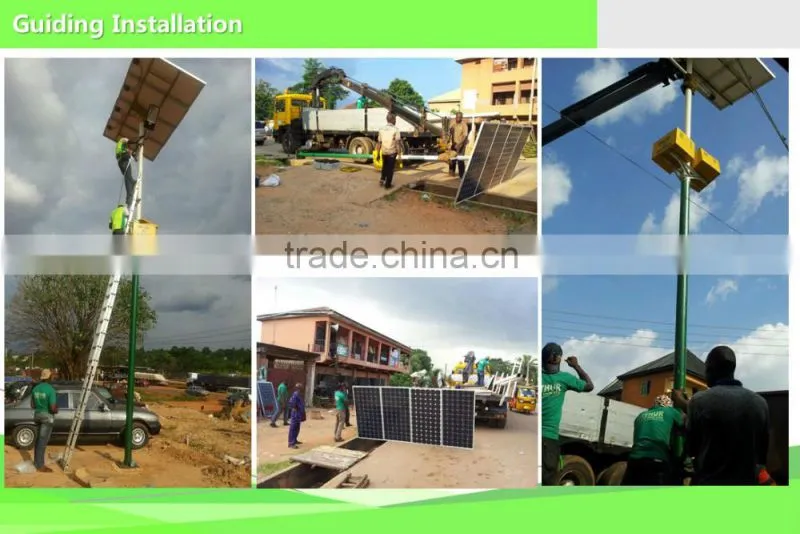

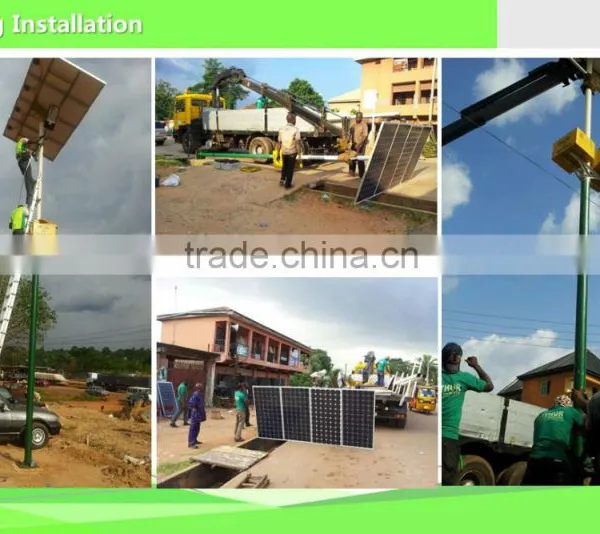

SOME OF OUR PROJECTS
Yangzhou Bright Solar Solutions Co., Ltd.
Add: 16th At Lianyi Road,Yangzhou City, Jiangsu Province, P.R.China
THANKS FOR CHOOSING YANGZHOU BRIGHT SOLAR SOLUTIONS CO., LTD, ANY REQURIE ARE WELCOME :-)
