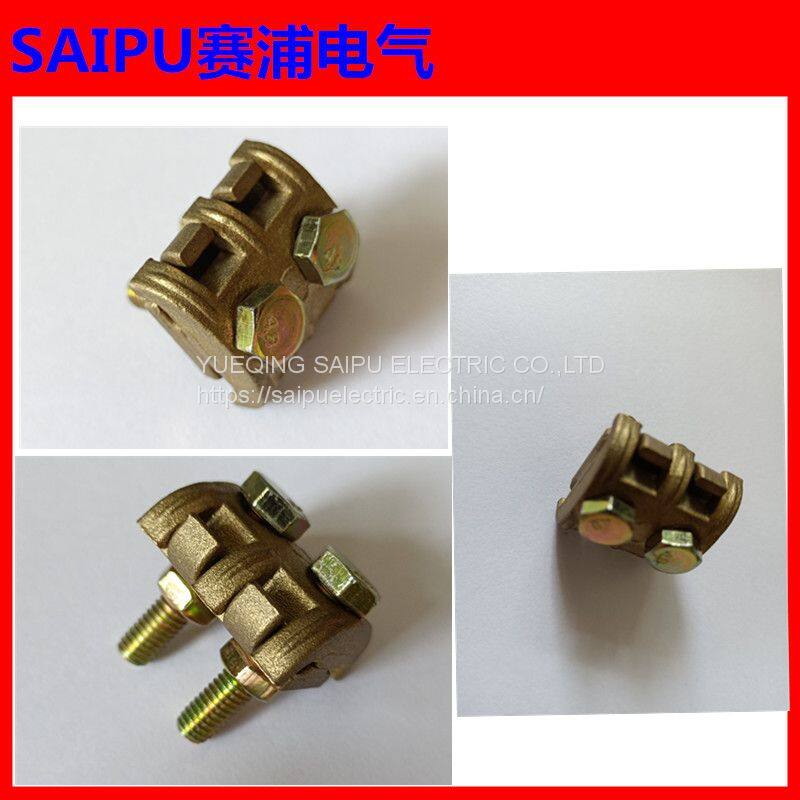

Tap-off Coated Copper Parallel Groove Connector
- 100000 Piece / Pieces per Month
- Any seaport of china
- T/T PayPal Other
- 7 days
You May Like
-
Glue-filled waterproof junction box
-
TERMINALS WITH COPPER AL MATERIAL OF UL SGS STANDARD
-
Waterproof insulation piercing connector with high strength corrosion resistant plastic and galvanized steel bolts
-
tension clamp wire anchor strain clamp and cable plastic wedge type dead end clamps
-
wire and cable plastic wedge type anchor strain clamp tension clamp dead end clamps for 4 wires
-
wire and cable plastic wedge type anchor strain clamp tension clamp dead end clamps for 4 wires
Product Details
| Brand Name | SP | Place of Origin | China | |
| Model Number | PAG APG PG | Material | Aluminium | |
| Usage | Heavy Duty | Standard or Nonstandard | Standard | |
| Structure | G Clamp |
Product Description
Material:
Bolts:High strength, corrosion-resistant,aluminium alloy with hot forged
bimetallic sheet,for copper tap-off
Bolts:hot-dip galvanized
Nuts:hot-dip galvanized
Conical Washers:corrosion-protected.
Pressure Pad:Aluminium alloy,with spring washers hot-dip galvanized
CAPG1
Conductor(mm2) | Bolts | |
A1 | Cu | |
16-70 | 1.5-10 | 1×M8 |
16-95 | 1.5-35 | 1×M8 |
16-70 | 6-50 | 1×M8 |
35-120 | 10-50 | 1×M8 |
CAPG2
Conductor(mm2) | Bolts | |
A1 | Cu | |
16-95 | 1.5-10 | 2×M8 |
25-95 | 1.5-35 | 2×M8 |
16-70 | 6-50 | 2×M8 |
35-120 | 10-50 | 2×M8 |
25-120 | 10-95 | 2×M8 |
95-120 | 10-50 | 2×M10 |
35-200 | 16-185 | 2×M10 |
50-300 | 35-240 | 2×M10 |
50-150* | 25-70 | 2×M10 |
70-120 | 95-120** | 2×M10 |
CAPG3
Conductor(mm2) | Bolts | |
A1 | Cu | |
35-185 | 35-185 | 3×M10 |
50-300 | 35-240 | 3×M10 |
Part No. | Main(mm2) | Tap(mm2) | A(mm) | B(mm) | Bolts |
PGA11 | 6-64 | 6-35 | 36 | 45 | 1×M8 |
PGA12 | 6-64 | 6-64 | 36 | 50 | 2×M8 |
PGA22 | 10-70 | 10-70 | 36 | 50 | 2×M8 |
PGA31 | 10-95 | 6-35 | 40 | 50 | 1×M8 |
PGA32 | 10-95 | 10-95 | 40 | 50 | 2×M8 |
PGA41 | 35-120 | 10-35 | 45 | 50 | 1×M8 |
PGA42 | 25-120 | 25-120 | 45 | 50 | 2×M8 |
PGA52 | 25-150 | 25-150 | 48 | 55 | 2×M10 |
PGA551 | 50-150 | 6-54 | 40 | 55 | 1×M10 |
PGA62 | 50-240 | 50-240 | 61 | 70 | 2×M10 |
PGA63 | 50-240 | 50-240 | 61 | 70 | 3×M10 |
