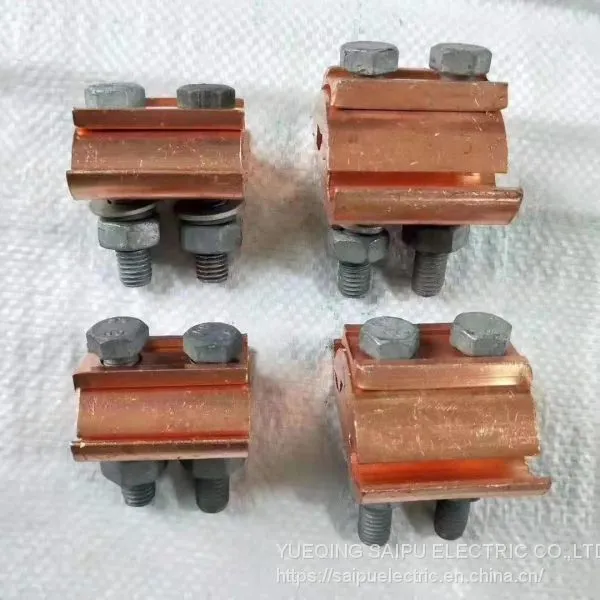

Help CenterCopper Parallel Groove Connector
Related Products
-
1 Bolt Aluminium-Copper Parallel Groove ConnectorUS$ 0.05 - 6MOQ: 1000 Pieces -
3 BOLTS Aluminium-Copper Parallel Groove ConnectorUS$ 0.5 - 6MOQ: 1000 Pieces
-
Tap-off Coated Copper Parallel Groove ConnectorUS$ 0.05 - 6MOQ: 1000 Pieces
-
Aluminium-Copper Parallel Groove ConnectorUS$ 0.05 - 6MOQ: 1000 Pieces
-
Aluminium Parallel Groove ConnectorUS$ 0.05 - 6MOQ: 1000 Pieces
Material:
Bolts:High strength, corrosion-resistant,aluminium alloy with hot forged
bimetallic sheet,for copper tap-off
Bolts:hot-dip galvanized
Nuts:hot-dip galvanized
Conical Washers:corrosion-protected.
Pressure Pad:Aluminium alloy,with spring washers hot-dip galvanized
CAPG1
Conductor(mm2) |
Bolts |
|
A1 |
Cu |
|
16-70 |
1.5-10 |
1×M8 |
16-95 |
1.5-35 |
1×M8 |
16-70 |
6-50 |
1×M8 |
35-120 |
10-50 |
1×M8 |
CAPG2
Conductor(mm2) |
Bolts |
|
A1 |
Cu |
|
16-95 |
1.5-10 |
2×M8 |
25-95 |
1.5-35 |
2×M8 |
16-70 |
6-50 |
2×M8 |
35-120 |
10-50 |
2×M8 |
25-120 |
10-95 |
2×M8 |
95-120 |
10-50 |
2×M10 |
35-200 |
16-185 |
2×M10 |
50-300 |
35-240 |
2×M10 |
50-150* |
25-70 |
2×M10 |
70-120 |
95-120** |
2×M10 |
CAPG3
Conductor(mm2) |
Bolts |
|
A1 |
Cu |
|
35-185 |
35-185 |
3×M10 |
50-300 |
35-240 |
3×M10 |
Part No. |
Main(mm2) |
Tap(mm2) |
A(mm) |
B(mm) |
Bolts |
PGA11 |
6-64 |
6-35 |
36 |
45 |
1×M8 |
PGA12 |
6-64 |
6-64 |
36 |
50 |
2×M8 |
PGA22 |
10-70 |
10-70 |
36 |
50 |
2×M8 |
PGA31 |
10-95 |
6-35 |
40 |
50 |
1×M8 |
PGA32 |
10-95 |
10-95 |
40 |
50 |
2×M8 |
PGA41 |
35-120 |
10-35 |
45 |
50 |
1×M8 |
PGA42 |
25-120 |
25-120 |
45 |
50 |
2×M8 |
PGA52 |
25-150 |
25-150 |
48 |
55 |
2×M10 |
PGA551 |
50-150 |
6-54 |
40 |
55 |
1×M10 |
PGA62 |
50-240 |
50-240 |
61 |
70 |
2×M10 |
PGA63 |
50-240 |
50-240 |
61 |
70 |
3×M10 |
