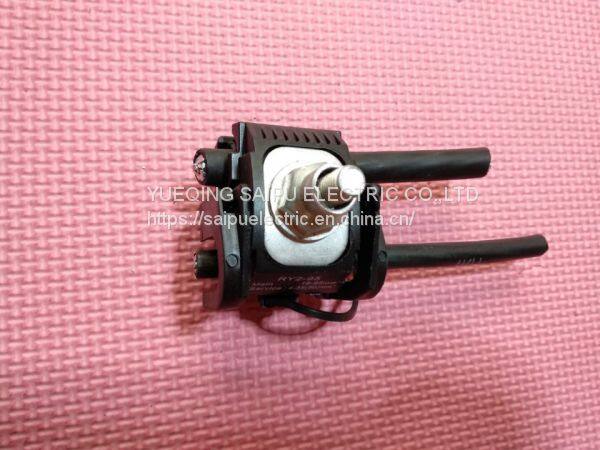

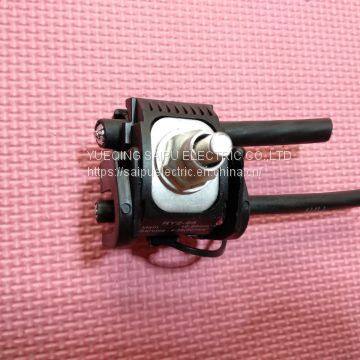

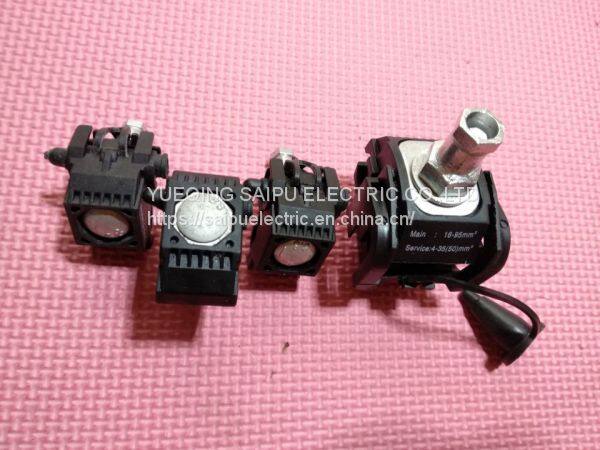

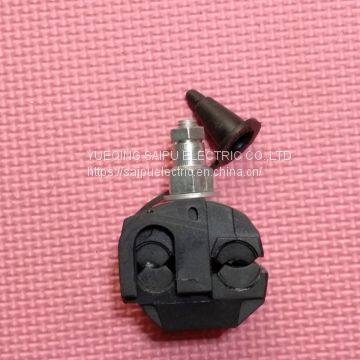

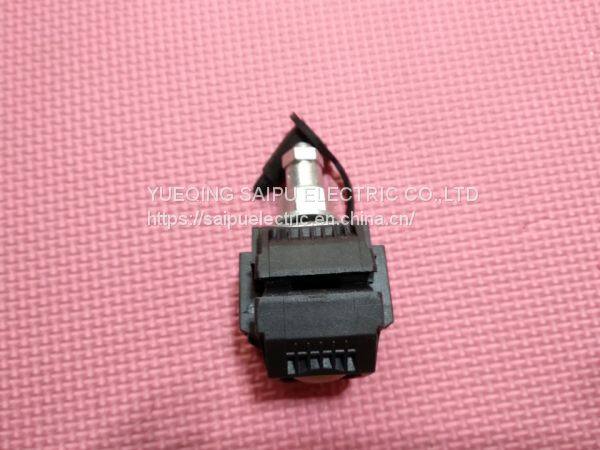

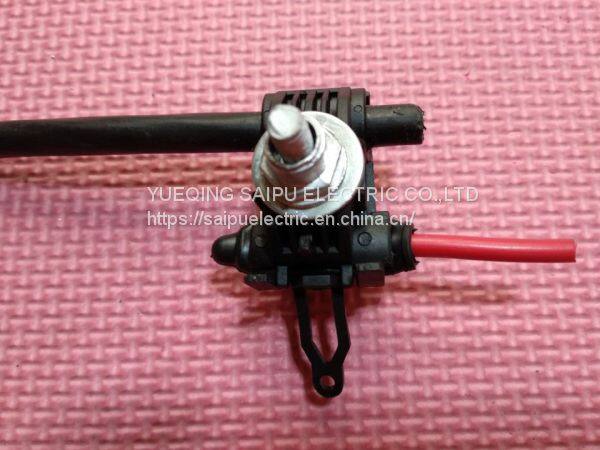

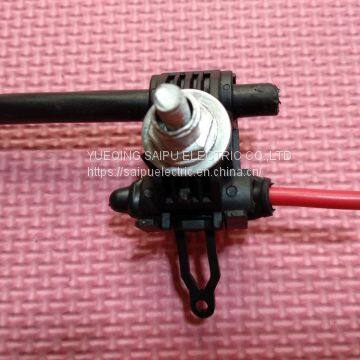

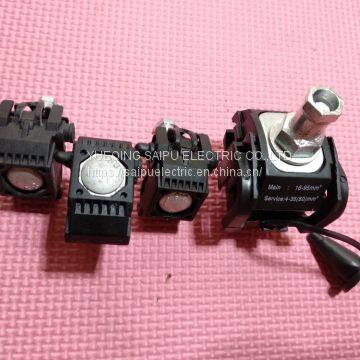

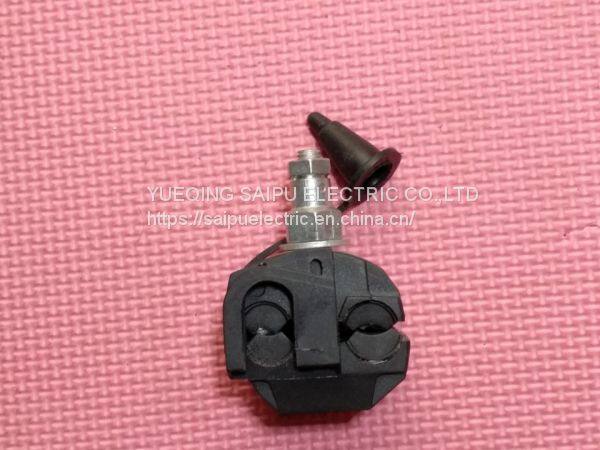

Waterproof Insulation Piercing Connector With High Strength Corrosion Resistant Plastic and Galvanized Steel Bolts

Certification: CE certification，ISO9001

Material of Nut:Zinc Alloy

Material of Washer :Steel

Material of Bolt: dakeluo to protect

Material of Body :Nylon66

Material of Blade:copper tinned

(the material also can according to your requirement)

Mainly application: The connection of main circuit, the connection of main circuitry and outdoor circuitry, the connections of main circuitry and electric appliance and street lamps

For fire-resistant or fire-retardant cables connecting branches (such as: Tunnel, construction and so on)

1.Mainline: Insulated Cu or Al

2.tap: Insulated Cu or Al

3.Connection Quality: "Hot spots" are eliminated with a shear head screw that ensures the correct tightening torque.

4.Easy installation: To install the whole series as only two hex wrenches (1/2" and 5/8").

5.Safe: I. P. C can be installed on an energized conductor, however, the tap must not be under load.

7.Corrosion Resistant: Connectors are made from high strength corrosion resistant plastic .Using corrosion-resistant shell, Anti-climate change, high-intensity， ultraviolet insulation materials

8.Extension puncture site and contact with senior waterproof cover functions (IP27), the water pressure of 4 KV ,Extension Cover may as required under extreme left or  right side.

Application

These connectors have been designed to meet the rigid requirements of Global Power Distribution Companies. Easy of installation has been combined with excellent mechanical, electrical and environmental characteristics to provide a connector capable of terminating Aluminum or Copper stranded conductors.

Description

Tin plated copper blades imbedded inmolded plastic and surrounded with a sealing compound insure electrical contact in LV overhead distribution networks. A single torque-control nut draws the two halves of the connector together and shears off when the teeth have pierced the insulation and made contact with the conductor strands.

SAIPUEP can be used with insulated aluminium or copper conductors.
Fully sealing rubber provides safe live line working.
Both main and branch conductor insulations are pierced by a single

bolt action. Test voltage 4kV/50 Hz/1 min in water.
Connector’sdesign enables live line installation without peeling the

insulation from conductor.
