Beverage Bottle Thickness Test Equipment

Application

 There are various ways of measuring the wall thickness of a bottle and one commonly used and easiest way is by a contact method wall thickness tester.

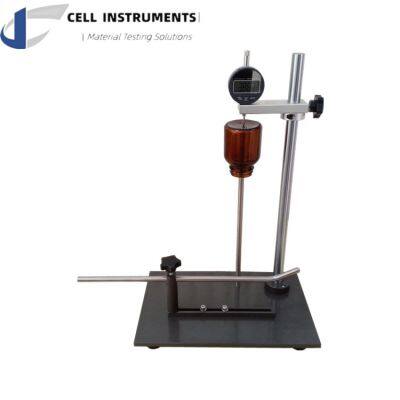

 WTT series wall thickness tester is equipped with a test stand with a thickness gauge. it is the ideal wall thickness measuring instrument for PET drink bottle, can, glass bottle, aluminum pot, infusion bottle, beer bottles, oral liquid bottles, ampoule, penicillin bottles etc.

Features

WTT series are application to measure the wall thickness of packing container with complex pattern and they has the advantage of user friendliness, durability, high precision.

1. 1.Electronic digital display measuring result

2. 2.Grating sensing technology

3. 3.Both bottom and wall thickness measurement

Main Parameters

Sample Diameter 10mm-120mm (Customization available)

Test Range 0-12.7mm

Division value 0.01mm/0.001mm(optional)

Measurable Height 300mm (Customization available)
