Hot Sale ASTM F392 Gelbo Flex Durability Tester for Flexible Films Sterile Medical Packaging

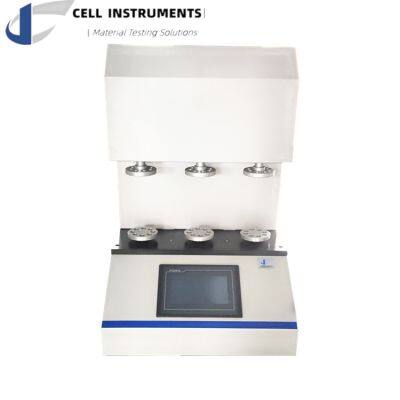

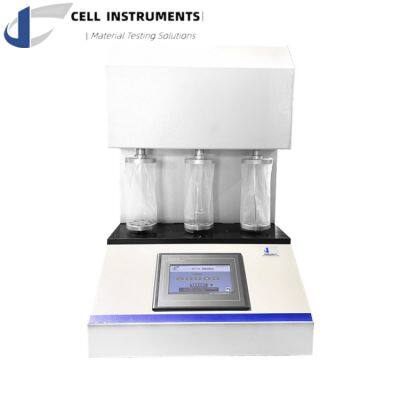

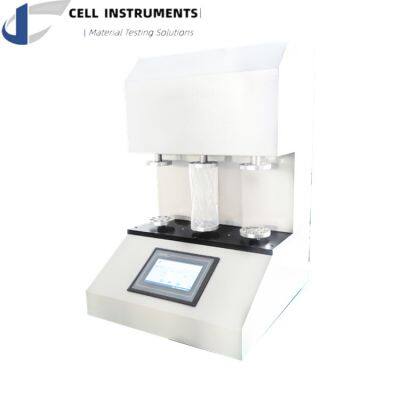

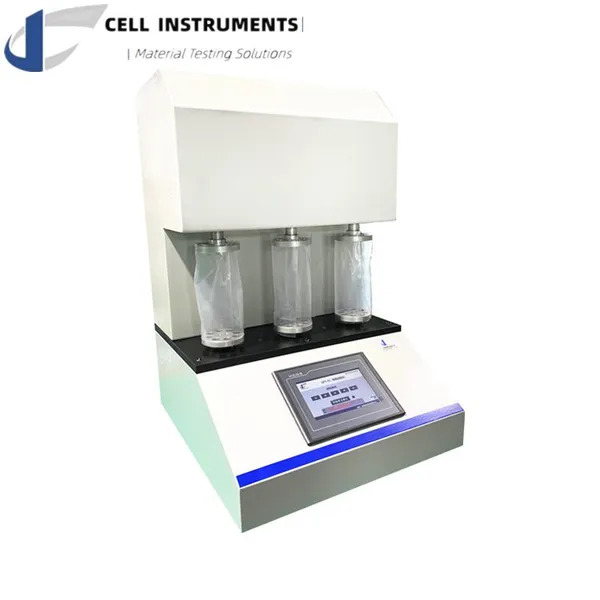

The GFT-02 flex durability tester is used to measure the resistance against repetitive strain for films, composites and coating films, etc. Flex failure is determined by measuring the pinholes formed in the sample structure. It is also called Gelboflex.

Principle

The sample size (200 by 280 mm) is attached to the flex tester mandrels. The flexing action consists of a twisting motion combined with a horizontal motion (compression), thus repeatedly twisting and crushing the film. The test set up gives a twisting motion of 440º in the first 90 mm of the stroke and is followed by a straight horizontal motion of 65 mm. The speed is 45 cycles per minute.

Technical data

Flex Frequency         45 cpm/minute

Flex Angle         440° (90 mm) or 400° (80 mm)

Horizontal Stroke     155 mm or 80 mm

Stations        4

Sample size      280 mm x 200 mm

Features

1.         PLC control and 7 inch touch screen operation

2.         5 standard test modes and 4 test stations

3.         Long and short stroke fast switching

4.         Condition A,B,C,D and E can be chosen

5.         Micro printer

6.         Could realize test frequency random setting

Standard: ASTM F392, "Flex durability of flexible barrier materials"
