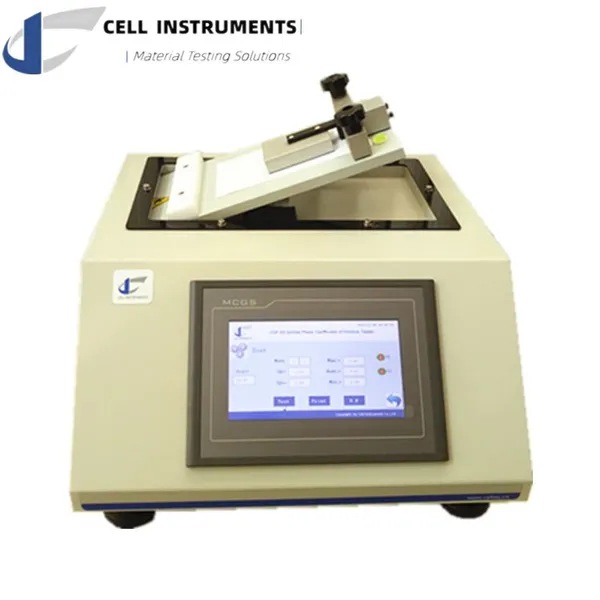

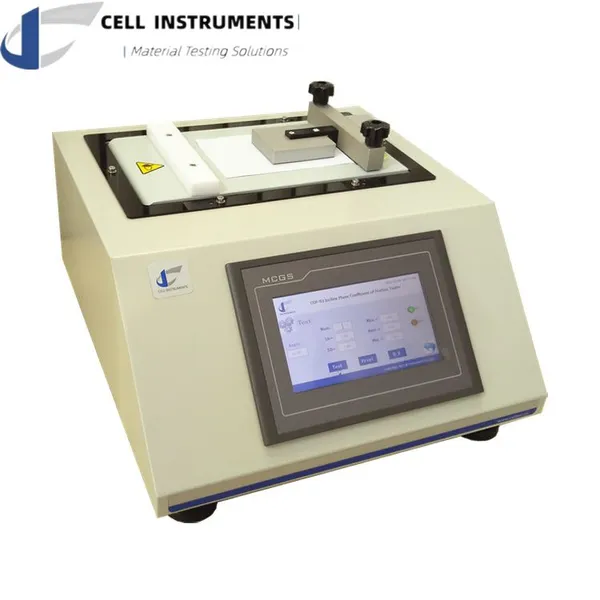

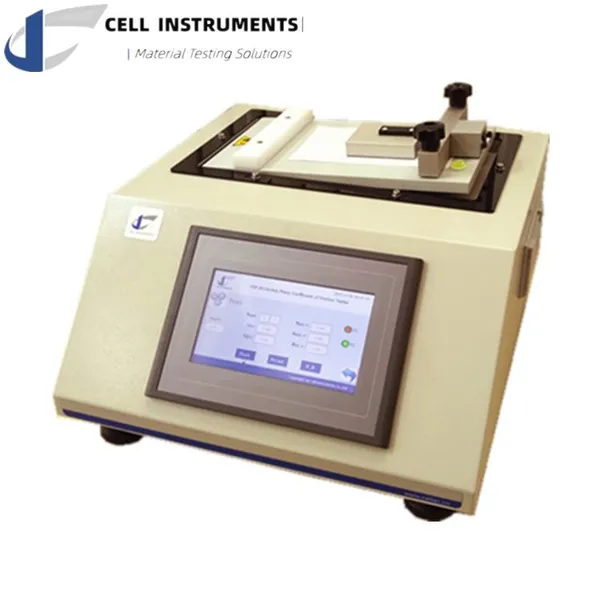

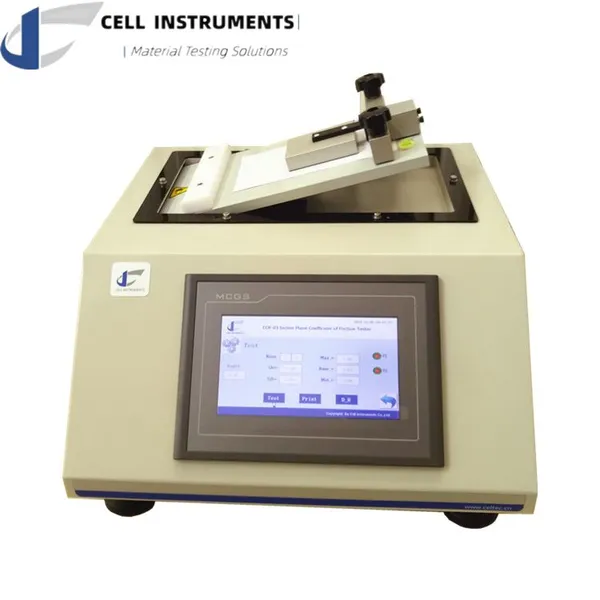

Digital Inclined Coefficient Of Friction Testing Machine For Conveyor Belt

•


• USES AND METHOD

Incline plane coefficient of friction tester measures the static coefficient of friction of various materials using a variable inclined plane and a sliding block. It measures the static COF of plastic films, sheets, rubber, paper, board, woven , fabrics, wood, coatings, brake pads, etc.

The static COF is measured by the angle at which one test surface begins to slide against another inclined surface as the incline is increased at a constant and preset rate. The test result is numerically equivalent to the tangent of that angle.

Features

PLC control and HMI touch screen operated

Real time display of max, min, average and SD of test result

In accordance with multiple international standards

Both angel and static COF (tangent value) can be measured

Microprint of easy printing of test result

RS232 and profession software ( optional）

TECHNICAL DATE

Angle range      0° ~ 60°

Accuracy           0.01°

Stroke               0.1°/s ～ 10.0°/s

Sled                  200g, 235g, or 1300g(choose one or others)

Power               AC 110~220V

STANDARS

ASTM D202, ASTM D4918, TAPPI T815
