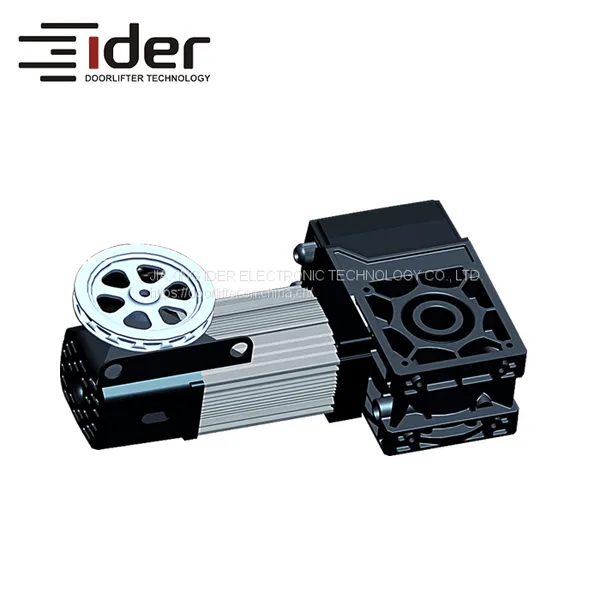

GYM260S-2 GYM350S-2 GYM500S-2 GYM650S-2 Industrial Roller Shutter Gate Operator With Electronic Limit Switch
- T/T
You May Like
-
GYJ40 GYJ50 GYJ70 GYJ100 High Speed Door Motor for PVC Folding Door
-
GYM50-1 70-1 60S-1 100S-1 150S-1 Industrial Gate Operator With Mechanical Limit Switch
-
GYM50-1 70-2 60S-2 100S-2 150S-2 Industrial Gate Operator With Electronic Limit Switch
-
GYM100S-3 Industrial Door Operator Encoder Motor With Frequency Conversion Limit
-
GYJ40 GYJ50 GYJ70 GYJ100 High Speed Door Motor for PVC Folding Door
-
GYM260S-2 GYM350S-2 GYM500S-2 GYM650S-2 Industrial Roller Shutter Gate Operator With Electronic Limit Switch
Product Details
| Brand Name | IDER | Place of Origin | Poland | |
| Model Number | GYM260S-2 GYM350S-2 GYM500S-2 GYM650S-2 | Material | Aluminum | |
| Open Style | Retractable | Opening Pattern | Automatic |
Product Description
Large Industrial Door Operator: GYM260S-1,GYM260S-2,GYM350S-1,GYM350S-2,GYM500S-1,GYM500S-2
· Semi-automatic manual chain mechanism;
· The reduction gearbox adopts precision worm gear and worm drive and oil-immersed lubrication, smooth transmission, low noise, long service life;
· Lead to adopt high precision 14 absolute encoder(16000 pulse point) of electronic limit mechanism. A great of improve the precision of limit;
· Original motor built-in brakes, effectively reduce motor inertial, enhances the accuracy of the lim;
· Double limit protection, more safe and reliable;
· Safety brake systems inside reducer.
Model | GYM260S-1 | GYM260S-2 | GYM350S-1 | GYM350S-2 | GYM500S-1 | GYM500S-2 |
Input Voltage | AC380V | AC380V | AC380V | AC380V | AC380V | AC380V |
Rated Power | 800W | 800W | 1000W | 1000W | 1000W | 1000W |
Rated Current | 3.5A | 3.5A | 3.5A | 3.5A | 3.5A | 3.5A |
Startup Torque | 260N.m | 260N.m | 350N.m | 350N.m | 500N.m | 500N.m |
No-load Running Time | 25min | 25min | 25min | 25min | 25min | 25min |
Maximum Door Weight | 50m2 | 50m2 | 70m2 | 70m2 | 100m2 | 100m2 |
No-load Rotating Speed | 12r/min | 12r/min | 12r/min | 12r/min | 8r/min | 8r/min |
Diameters of the hole for output shaft | Φ32/35/40mm | |||||
Retarding Mechanism | Mechanism completely built with cooper worm wheels and worm rods | |||||
Lubrication | Oil submerging | |||||
Thermal Protective Temperature | 120ºC | |||||
Max. Limited Journey | 20 rounds rotation of the output shaft | |||||
Ambient Temperature | -20ºC~+45ºC | |||||
Working System | S2 20% | |||||
Noise | ≤60dB | |||||
Protective level | IP 54 | |||||
Mode of manual chain | Universal chain style | |||||
Swift Release Upon Power Failure | Pull-rope release(optional) | |||||
Type of limit switch | Mechanical limit | Electronic limit | Mechanical limit | Electronic limit | Mechanical limit | Electronic limit |
Total weight | 26kg | 26kg | 28kg | 28kg | 28kg | 28kg |
