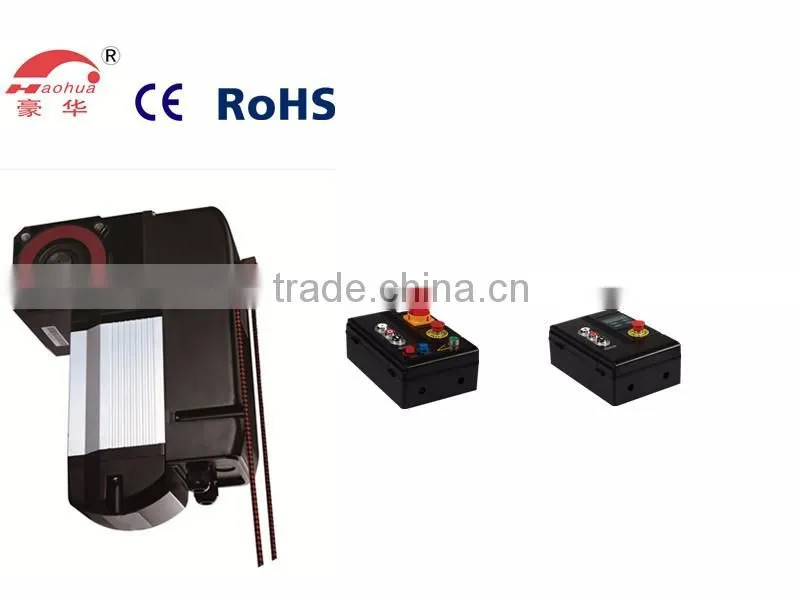

HH-40S Automatic industrial Door Operator With CE, RoHs

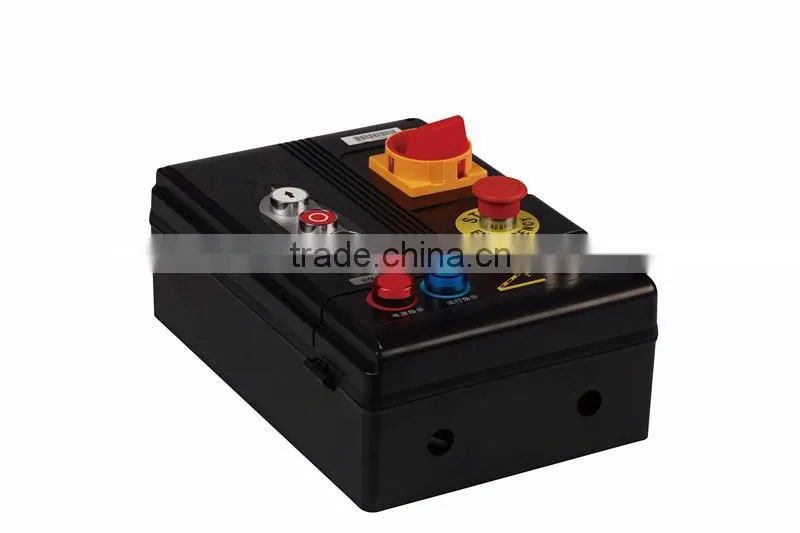

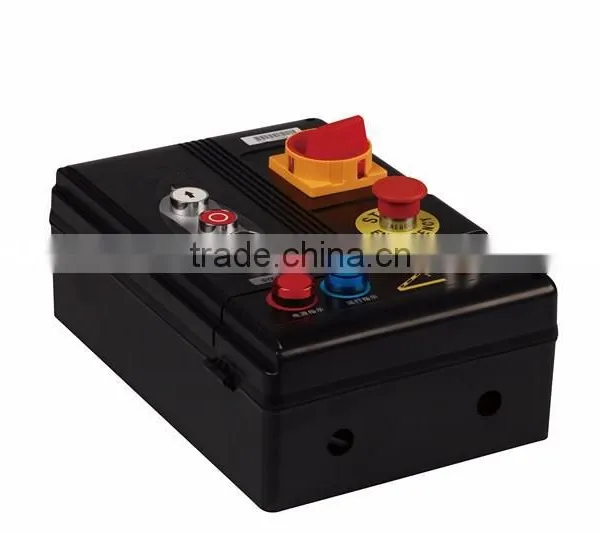

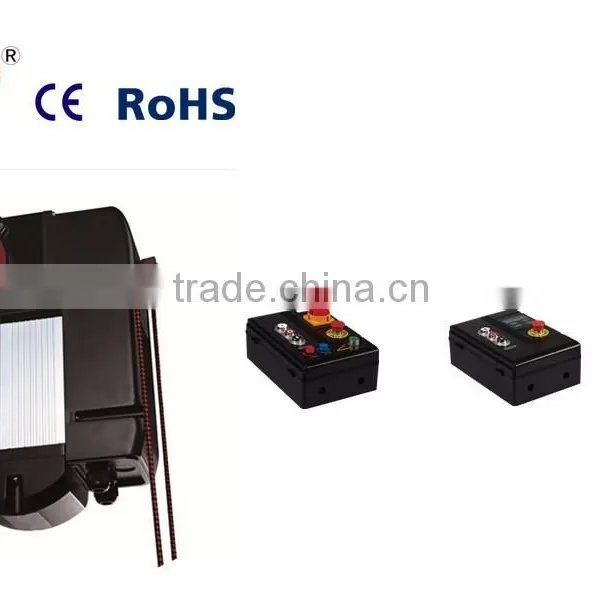

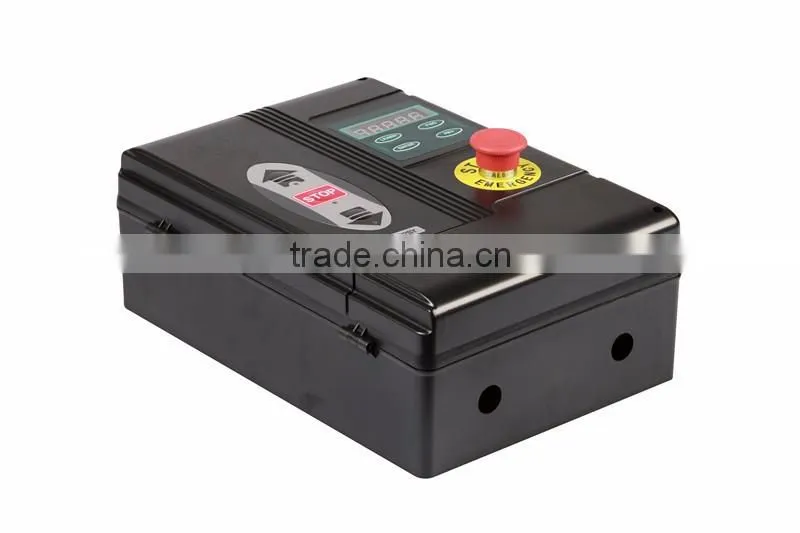

Control System- Split type control
Control system- relize interlock control
Table of performance parameters for the Door-openers for industrial Purposes
Model |
GYT50 |
|
|
|
Input voltage |
AC220V |
|
Noise |
≤55dB |
Rated power |
300W |
|
Mode of manual chain |
Universal chain style |
Startup torque |
35N.m |
|
Swift release upon power failure |
pull-rope release(optional) |
No-load runing |
15min |
|
Max.limited journey |
20 rounds rotation of the output shaft |
|
Maximum door weight |
500KG |
|
Type of limit switch |
The absolute value encoder electronics limit |
|
Supportive power control |
Split type |
|
Diameters of the holefor output shaft |
Φ25.4mm |
|
Thermal protective
temperature |
120℃ |
|
Ambient temperature |
(-20℃ ~+45℃) |
|
Retarding mechanism |
Mechanisn completely built with coooer worm wheels and worm roads |
|
Working system |
S2 20% |
|
No-load rotating speed |
24r/min |
|
Protective level |
IP54 |
Lubrication |
oil submerging |
|
Total weight |
14KG |
Products Feature:

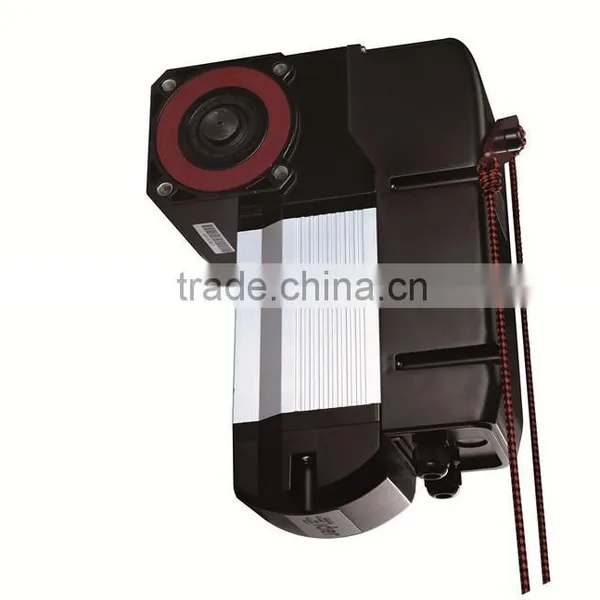

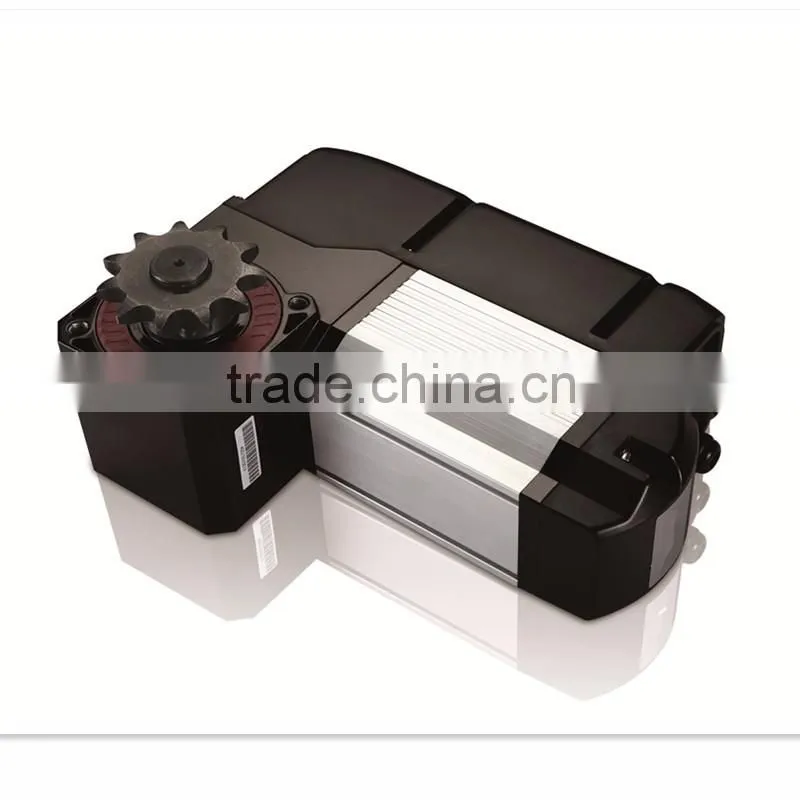

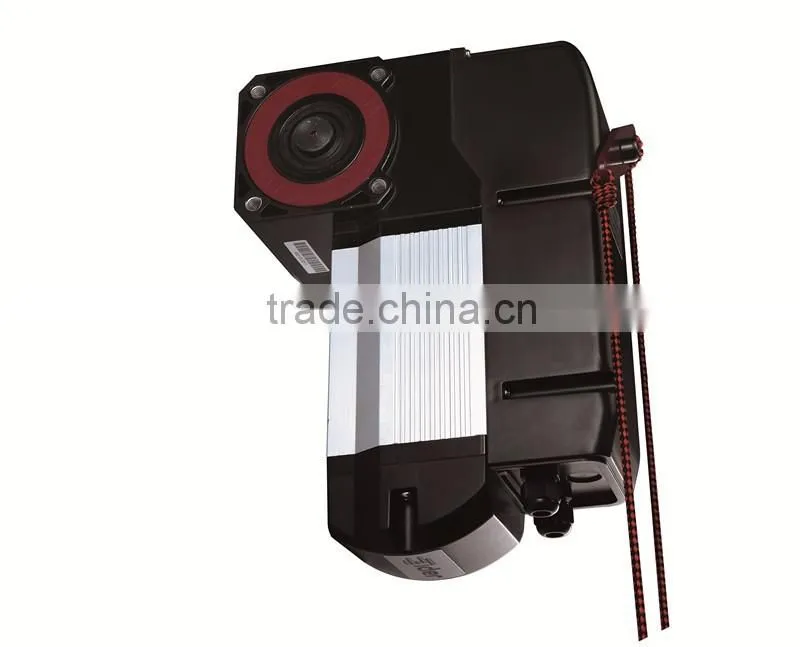

1. The operator is composed of motor, gearbox, manual release mechanism and control system.
2. Using high efficiency worm reducer, large speed ratio, high efficiency, low power, safety and good
self-locking.
3. The operator is oil submerging ,good lubrication, low noise, long use life.
4. The built-in control system with remote control, manual control, limiting accurate, convenient adjustment.
5.The motor with thermal protection and overload automatic shutdown protection function.
6. Nice design, beautiful appearance, compact structure, small volume.
7.The suitable working environment temperature is between -20 ℃~ 50 ℃, IP54 protection class with stable pe
rformance and safety.
8. Some customized special specifications for customer request.
Company info.
Why Choose Us?
-We are factory which is professional manufacturer with more than 20 years production experience.
Specialized is engaged in the industrial door operator research and development, manufacturing and sales, the company has 20 years experience in design and manufacture of electric door machine industry technical team and management team.Company
cooperate with German companies, in strict accordance with the European standards for production, quality validation from users all over the world.
-Faster delivery time
-Compele after-sale services system
Sample policy?
-7 days after received your payment of sample fee and freight.
For detailed information, please check below contact details:
