Product Introduction

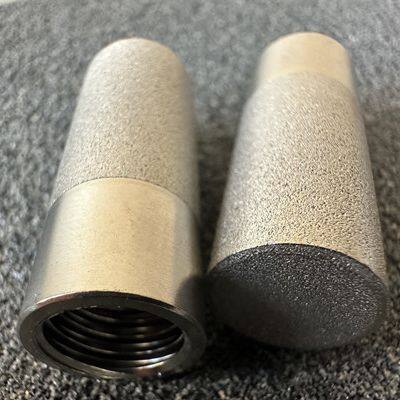

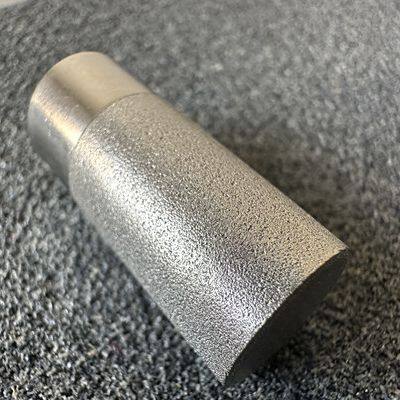

The Stainless steel sintered muffler is a device that uses the sound absorption and scattering effects of sintered metal materials to reduce noise. It is usually sintered by a large number of metal powders to form a porous structure with excellent sound absorption properties.
Sintered metal mufflers are widely used in machinery, fans, air compressors, gas turbines, generators, combustion chambers, smoke exhaust systems, vehicle exhaust pipes, ship cabins, and other fields. It can effectively absorb high-frequency noise, low-frequency noise, and pulsating noise, reduce noise, improve the working environment, and protect personnel health.
The Stainless steel sintered muffler has the advantages of corrosion resistance, high temperature resistance, wear resistance, easy cleaning, etc., and can work stably for a long time. At the same time, due to the characteristics of its porous structure, the sintered metal muffler also has a certain resistance, which can produce a certain damping effect on the flow of gas or liquid, thereby achieving the effect of flow control.
Parameter
Thread specification screw thread: M12*1.5
Outer diameter: Outside diameter OD (mm)14
Inside diameter: ID (mm)11
Overall length: OL (mm)38.5
Material: stainless steel316 + 304
Operating temperature: below 600°C
Filtration accuracy: 30-40um
Processing technology: machining + sintering process
Applications
Flow-Control Mufflers
Sintered metal flow control muffler is a device used to reduce the noise of gas or liquid flow. Usually in the shape of a cylinder, the interior has a specific pore size, pore distance, and pore area, these parameters can adjust the flow and velocity of gas or liquid. By controlling the flow and velocity of fluids, sintered metal flow control mufflers can reduce the noise caused by fluid flow. In addition, the sintered metal material itself also has sound absorption properties and can absorb noise.
Use these silencers with your air tools and cylinders to reduce noise and filter exhaust. Stainless steel mufflers offer excellent corrosion resistance.
High-Noise-Reducing Mufflers
The sintered metal high-noise muffler is a device that can effectively reduce high noise. It is made of sintered metal material, usually in the shape of a cylinder, with a series of small holes or channels inside, which can cause multiple reflections, refractions, and frictions of gases or liquids as they pass through the muffler, thereby dissipating and dispersing sound waves energy to achieve the effect of reducing noise.
Compared with traditional noise mufflers, sintered metal high noise mufflers have a higher noise absorption coefficient and wider frequency range, and can be applied to higher noise levels and wider frequency ranges. It has been widely used in the fields of aviation, shipbuilding, automobile, machinery manufacturing, and petrochemical industry.
Flame-Resistant Mufflers
The sintered metal flame retardant muffler is a kind of muffler that can be used in high temperature, high pressure, and flammable environment. It is made of sintered metal material, which has the characteristics of flame retardancy, high-temperature resistance, corrosion resistance, etc., and can maintain stable performance in harsh environments.
Sintered metal flame retardant mufflers are usually used in high temperature, high pressure, and flammable occasions in petroleum, chemical, metallurgy, aerospace, and other fields, such as furnace burners, heat exchangers, flue gas discharge systems, etc. It can effectively reduce noise and vibration generated under high temperature and high-pressure conditions, and at the same time has flame retardant properties, which can effectively avoid safety accidents such as fire and explosion.
Package and Shipment
1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.
2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the designated place of the customer without damage.
