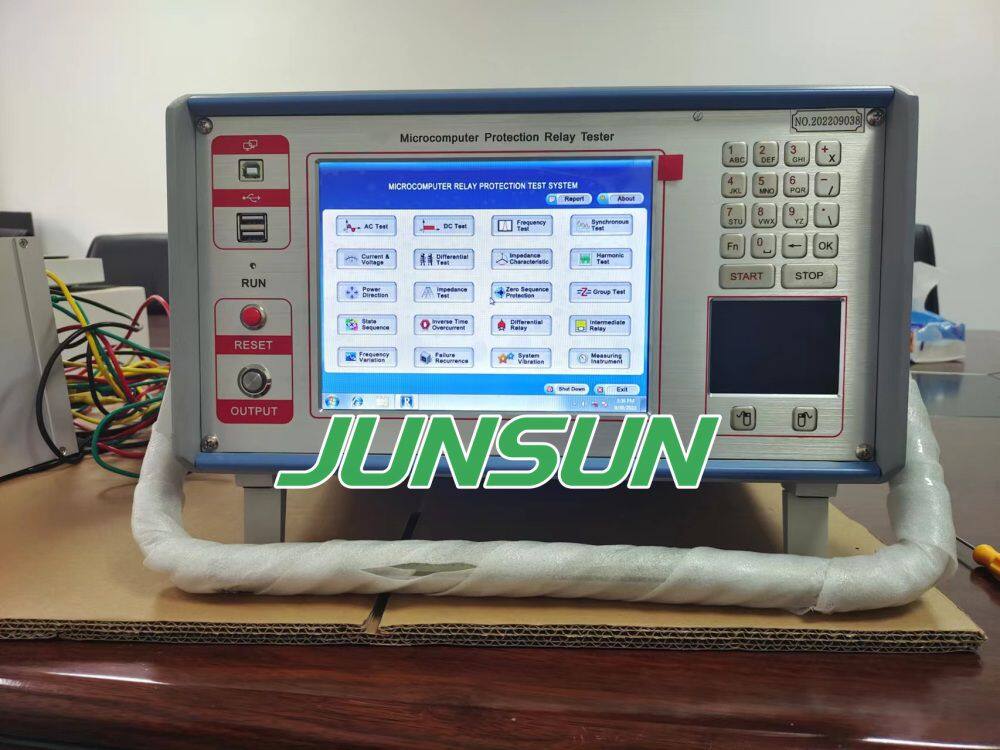

Help CenterMicrocomputer Type Three Phase Relay Protection Tester Secondary Current Injection Test Set
Related Products
-
JBFD-H Portable Handheld Type UHF TEV Partial Discharge Detector Tester for Transformer/ Switchgear/ GISUS$ 2999 - 4999MOQ: 1 Set -
High Quality Low Price Switch Cabinet & Transformer Partial Discharge Tester (Handheld Type)US$ 2999 - 4999MOQ: 1 Set
-
Portable Type Partial Discharge (PD) Testing Equipment for Switchgear/ Transformer/ GIS/ CableUS$ 2999 - 4999MOQ: 1 Set
-
High Reliability JS3045 Series Digital Insulation Resistance Megohm MeterUS$ 499 - 999MOQ: 1 Set
-
50KV 100KV 200KV Oil-Immersed/Dry Type Testing Transformer AC DC Withstand High Voltage Hipot TesterUS$ 999 - 9999MOQ: 1 Set
KEY FEATURES
Windows 7
DSP+FPGA
16 bit DAC output
GPS synchronous test function
USB and PC interface
Powerful software
High accuracy, compact structure, easy to use
Standard four-phase voltage, three-phase current output, voltage is 125V per phase
Current is 40A per phase. Three phase parallel up to 120A.
1. Meets all the requirement of field tests. This tester with standard 4 phase voltage, 3 phase current output, voltage 125V/phase, current 30A/phase, 3 phases in parallel can up to 120A. Digital Signal Processor Microcomputer. Not only test the traditional relays and protectors, but also test the modern microcomputer relays, special for transformer differential protection and transfer equipment.
2.All technical indicators fully meet the standard DL/T624-1997: Technical condition of the relay computer test device.
3. Classic Windows 7 operating interface, friendly man-machine interface, easy and fast to operate; High-performance embedded industrial control computer and 8.4-inch resolution of 800 × 600 TFT true color display which provides rich visual information, includes the current working condition and all kinds of help information.
4. The Windows 7 system comes with the restore function; avoid system crashes caused due to illegal shutdown, or malfunction, etc.
5. Equipped with ultra-thin industrial keyboard and optical mouse, complete a variety of operations using keyboard or mouse the same as ordinary PC.
6. The main control board is DSP + FPGA architecture, 16 bit DAC output, generates high - density sine wave 2000 points each circle to fundamental wave, which greatly improve the wave quality and the accuracy of the test instrument.
7. Using high-fidelity linear amplifier. Both to ensure the accuracy of a low current, but also guarantee the stability of the high current.
8. USB directly connect with PC, without any adapter cable, easy to use.
9. Can be connected to a laptop computer (Optional). Laptop computers and industrial machines use the same software, no need to re-learn the methods of operation.
10. With a separate DC auxiliary voltage source, output voltage 110V(1A), 220V(0.6A), provides relays or protective devices which require DC power.
11. The software with self-calibrating function, which avoid to calibrate accuracy by adjusting relays after open the case, greatly improve the stability of the accuracy.
