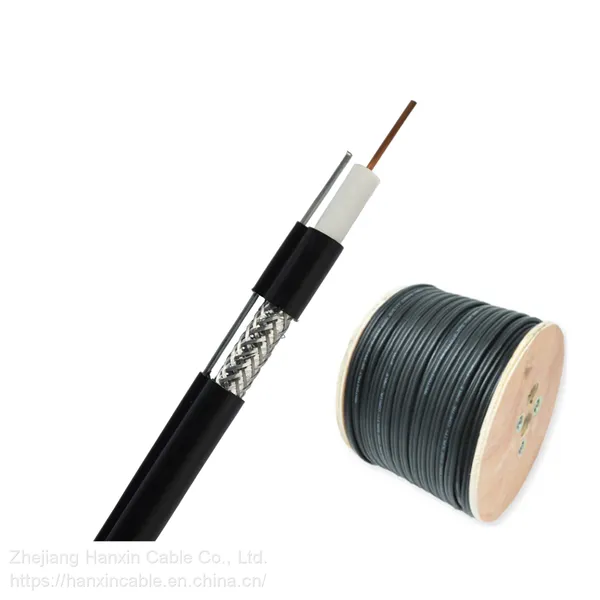

21years Professional Manufacture Produce RG6 Rg59 Coax Coaxial Cable With RoHS CE
US$ 10 - 20
MOQ: 50 Cartons
Key Specifications
Get Latest Price
Brand Name:
OEM
Place of Origin:
China
Type:
Coaxial
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
10 days
Related Products
-
Rg11 Coaxial/Computer Cable/ Data Cable/ RG6/Rg59 Coaxial CableUS$ 10 - 15MOQ: 50 Rolls -
CCTV Cable 75ohm Rg Coaxial Cable Series RG6 / Rg11 / Rg59US$ 10 - 20MOQ: 50 Boxes
-
LAN Cable UTP Cat5e 24AWG Copper 4pair Test 100m PassUS$ 20 - 40MOQ: 50 Pieces
-
GYTA GYTS GYFTY GYTA53 GYTC8S Gyxtc8s 2- 96core Optical Fiber CableUS$ 130 - 170MOQ: 50 Rolls
-
Drop Wire VDSL Telephone Cable/Data Cable/ Communication Cable/ Connector/ Audio CableUS$ 20 - 30MOQ: 50 Rolls
Brand Name
OEM
Place of Origin
China
Type
Coaxial
Number of Conductors
8
1.Product Construction (RG6 coaxial cable):
1) Center Conductor:18AWG 1.024mm Bare copper, 21% CCS
2) Foil Shield: Un-bonded, Bonded, Double bonded, double un-bonded Aluminum Foil, Copper foil, are Available
3) Braiding Shield:Al,BC,TC,CCA,CCS Available
Wire Diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm Available
Braid form: 16x2/3/4/5/6/7/8/9/10/11/12, 24x2/3/4/5/6/7/8 Available
Coverage: Between 30-98%
4) Jelly APD optional per requriments.
5) PVC Jacket: UV, Flame retardant, LSZH, LSLH Available
6)Electrical characteristics:
|
Attenuation |
[@68o F. (20o C.)] |
|
|
Frequency (MHz) |
Maximum (dB/100 ft.) |
Maximum (dB/100 m) |
|
5 |
0.58 |
1.9 |
|
50 |
1.5 |
4.9 |
|
100 |
2.0 |
6.5 |
|
200 |
2.8 |
9.2 |
|
400 |
4.1 |
13.6 |
|
700 |
5.6 |
18.4 |
|
900 |
6.2 |
20.3 |
|
1000 |
6.5 |
21.4 |
|
1450 |
8.0 |
26.2 |
|
1800 |
8.5 |
27.9 |
|
2100 |
9.5 |
31.1 |
|
2250 |
10.0 |
34.0 |
|
3000 |
11.4 |
37.5 |
