Product Introduction

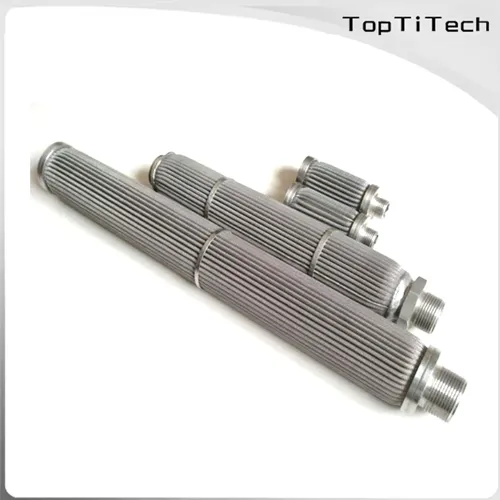

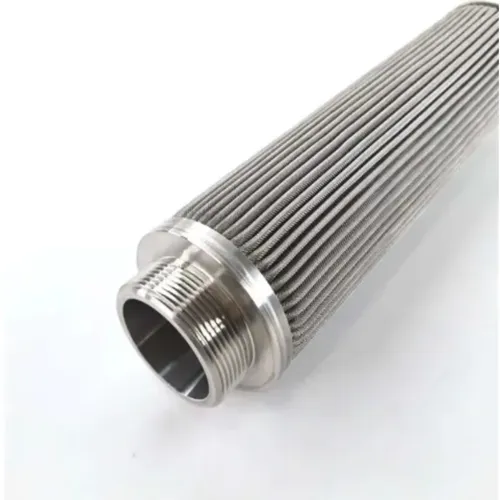

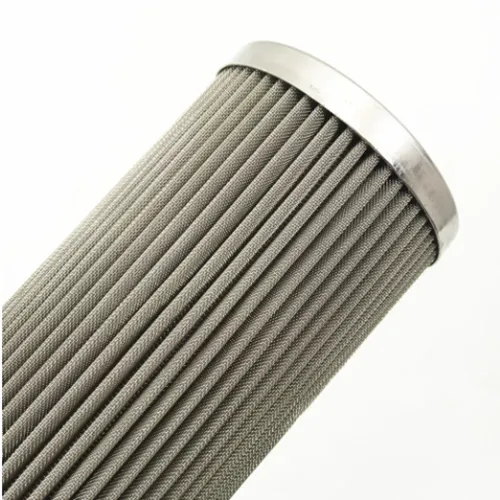

The advantages of a large filtering surface, good dirt-holding capacity, and reusability are the key characteristics of the pleated sintered mesh filter, which is a common filtering device. The pleated sintered mesh filter can be used for a variety of filtering applications because of its unique construction.
This filter's filter medium is mostly constructed of sintered metal fiber felt or stainless steel wire mesh, both of which exhibit excellent levels of temperature and corrosion resistance. A robust porous filter cartridge is created during manufacture by folding wire mesh or metal fiber felt into a pleated shape and sintering at each wire contact point. To guarantee cartridge stability and durability, the procedure can be carried out at high temperatures.
Parameters
Material: stainless steel, some special alloys are also available
Filtration rate: 0.2 microns to 500 microns
Length: 3.9" to 59"
Outer diameter: 1.378" to 3.15"
Working temperature: -200 °C to 600 °C
Cleaning: ultrasonic cleaning, high-temperature baking, cleaning agent
Packing: wooden case or export case, generally wrapped in a plastic bag separately first
Features
1. Creates a larger filtration area
The pleated design of the sintered filter element creates a larger filtration area and a more efficient filtration process. The pleats are formed by folding the filter material in a zigzag pattern, which increases the surface area of the filter media. This increased surface area allows for more contact between the filter media and the fluid being filtered, which improves filtration efficiency.
2. Reduces the flow resistance of the filter element
In addition to providing a larger filtration area, the pleated design also reduces the flow resistance of the filter element. This is because the pleats create a more uniform distribution of fluid flow across the filter media, which reduces the pressure drop across the filter element. This results in a more efficient filtration process and can help to extend the life of the filter element.
3. Provides a higher pollutant loading capacity
The pleated design of the sintered filter element also provides a higher pollutant loading capacity. The pleats create more space for pollutants to collect, which allows the filter element to remove more contaminants before needing to be replaced or cleaned.
Applications
Some industries that require high levels of filtration, such as the chemical and pharmaceutical industry, and the food industry, may use sintered pleated filter cylinders more frequently than others. Ultimately, the usage of sintered pleated filter cylinders depends on the specific filtration requirements of each industry. The pleated filter cylinders are also used in various other industries, including:
◉Aerospace industry
◉Electronics industry
◉Oil and gas industry
◉Water treatment industry
◉Pulp and paper industry
◉Paint and coatings industry
◉Power generation industry
◉Semiconductor industry
Package and Shipment
1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.
2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the designated place of the customer without damage.
