Home > Electrical & Electronics > Electric Motor > DC Motor > RS-545SA OD Φ 35.8/36 mm Carbon Brush DC Motor With Plastic End Cap

RS-545SA OD Φ 35.8/36 mm Carbon Brush DC Motor With Plastic End Cap

Name: RS-545SA OD Φ 35.8/36 mm Carbon Brush DC Motor With Plastic End Cap
Brand: Foneacc
SKU: 171886203
Availability: InStock

RS-545SA OD Φ 35.8/36 mm Carbon Brush DC Motor With Plastic End Cap thumbnail-1

RS-545SA OD Φ 35.8/36 mm Carbon Brush DC Motor With Plastic End Cap thumbnail-2

RS-545SA OD Φ 35.8/36 mm Carbon Brush DC Motor With Plastic End Cap thumbnail-3

RS-545SA OD Φ 35.8/36 mm Carbon Brush DC Motor With Plastic End Cap thumbnail-4

RS-545SA OD Φ 35.8/36 mm Carbon Brush DC Motor With Plastic End Cap thumbnail-5

RS-545SA OD Φ 35.8/36 mm Carbon Brush DC Motor With Plastic End Cap photo-1

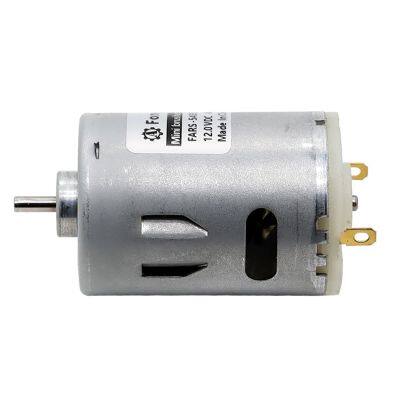

RS-545SA OD Φ 35.8/36 mm Carbon Brush DC Motor With Plastic End Cap photo-2

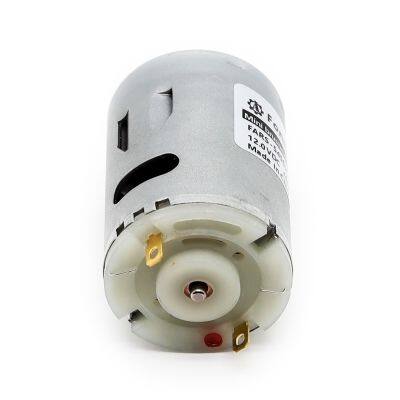

RS-545SA OD Φ 35.8/36 mm Carbon Brush DC Motor With Plastic End Cap photo-3

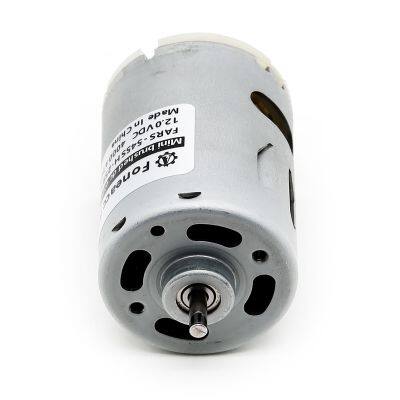

RS-545SA OD Φ 35.8/36 mm Carbon Brush DC Motor With Plastic End Cap photo-4

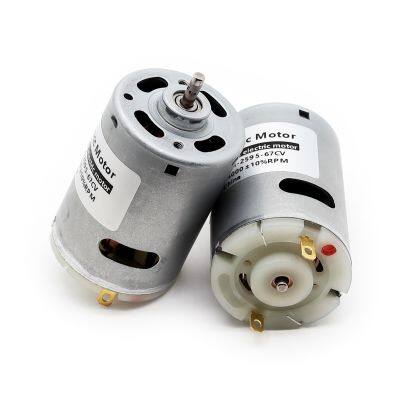

RS-545SA OD Φ 35.8/36 mm Carbon Brush DC Motor With Plastic End Cap photo-5

US$ 0.1 - 1 MOQ: 500 Pieces

Key Specifications

Get Latest Price

Brand Name:

Foneacc

Place of Origin:

China

Model Number:

RS-545SA

Contact Supplier Request Quote Chat Now

Foneacc Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Foneacc

Place of Origin China

Model Number RS-545SA

Type Micro Motor

Certification ROHS

Torque 180.6g.cm

Construction Permanent Magnet

Efficiency IE 2

Voltage(V) DC 24V

Output Power 58W

Continuous Current(A) 0.57A

Speed(RPM) 5761RPM

Commutation Brush

RS-545SA OD Φ 35.8/36 mm carbon brush DC motor with plastic end cap

Main features:

|- Model Number: RS-545SA, OD Φ 35.8/36 mm carbon brush DC motor with plastic end cap
|- Shell Stator Size : Φ 35.8* L 50 mm(Φ 1.409 inch * 1.97 inch)
|- Shaft : Φ 3.175mm(0.125 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 50W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 0.5 Kgf-cm(0.49 N-m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)

RS-545SA dc motor data examples:

Model	Voltage		No load		At Maximum Efficiency					Stall
	Range	Rated	Speed	Current	Speed	Current	Torque	P.out	EFF.	Torque	Current
	V		R/min	A	R/min	A	g-cm	W	%	g-cm	A
RS-545SA-2870	6-20	9	2,270	0.23	1,840	1	150	2.83	68.7	792	4.3
RS-545SA-2486	9-20	12	4,800	0.25	3,800	0.99	175	6.83	57.5	840	3.8
RS-545SA-2595	9-20	12	4000	0.06	3200	0.48	120	3.94	68.4	600	2.16

Dimensions and performance curves of RS-545SA dc motor for reference:

Download RS-545SA DC motor datasheet for clear view:

RS-545SA-datasheet.pdf

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.

Product Tags: high torque DC motor , RS-545SA miniature dc motor , OD Φ 35.8/36 mm brushed dc motor
