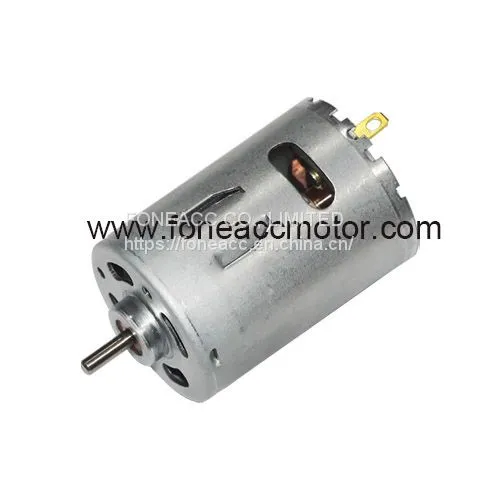

Help CenterRS-540 35.8 mm Diameter Micro Brush dc Electric Motor
Related Products
-
RF-528 33 mm Diameter Micro Brush dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces -
RF-520 33 mm Diameter Micro Brush dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces
-
RS-395 27.7 mm Diameter Micro Brush dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces
-
RS-390 27.7 mm Diameter Micro Brush dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces
-
RS-385 27.7 mm Diameter Micro Brush dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces
1.MECHANICAL CHARACTERISTICS
1.1.Size: Dia35.8*L50mm
1.2.End Play:0.05~0.55mm
1.3.Operating Temperature: -10°C ~ +60°C.

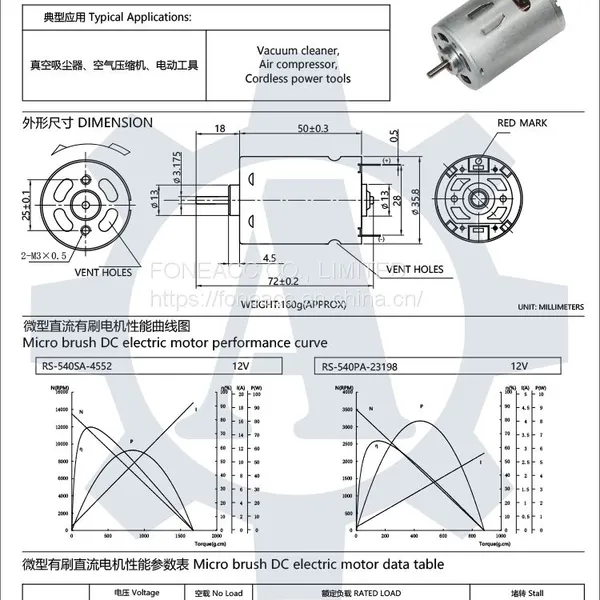

1.4.Dimension drawing: See.
2.ELECTRICAL CHARACTERISTICS (At initial stage after 30 seconds run-in):
2.1.At No load
2.1.1.Speed: 2450 ±10% rpm
2.1.2.Current: 0.0.065A(max 4.0 A)
2.2.At Max Efficiency
2.2.1.Torque: 84.86 g.cm
2.2.2.Speed: 1974 ±10% rpm
2.2.3.Current: 0.257 A(max 21.6A)
2.3.At Stall
2.3.1.Torque: 447 g.cm
2.3.2.Current: 1.08 A(max 108A)
2.4.Direction of Rotation: CCW (Counter-Clockwise when viewing from the output shaft end
with positive voltage applied to positive terminal.
3.MEASURING CONDITIONS
3.1.Rated voltage: 12V DC
3.2.Motor Position: To be measured with motor horizontally held.
3.3.Environmental temperature:25±10°C.
3.4.Environmental humidity:65%±20%RH.
| Model | Voltage | No Load | At Max. Efficiency | Stall e | ||||||
| Operating Range(V) | Nominal | Speed | Current | Speed | Current | Torque | Output | Eff | Torqu | |
| V | r.p.m | A | r.p.m | A | g.cm | W | % | g.cm | ||
| RS-540-5045 | 4.5 ~ 12.0 | 12 | 17,800 | 0.98 | 15,300 | 6.15 | 320 | 50.26 | 68.1 | 2,278 |
| RS-540-4565 | 4.5 ~ 18.0 | 12 | 11,000 | 0.52 | 9,450 | 3.18 | 260 | 25.22 | 66.1 | 1,845 |
| RS-540-33110 | 6.0 ~ 24.0 | 12 | 6,750 | 0.3 | 5,700 | 1.6 | 220 | 12.87 | 67 | 1,414 |
| RS-540-18270 | 12.0 ~ 30.0 | 12 | 2,780 | 0.13 | 2,150 | 0.42 | 126 | 2.78 | 55.2 | 556 |
| RS-545-5016 | 3.0 ~ 9.0 | 9 | 22,500 | 1.5 | 19,000 | 8.12 | 262 | 51.1 | 69.9 | 1,684 |
| RS-545-2870 | 6.0 ~ 30.0 | 9 | 2,270 | 0.23 | 1,840 | 1 | 150 | 2.83 | 68.7 | 792 |
| RS-545-2486 | 9.0 ~ 30.0 | 12 | 4,800 | 0.25 | 3,800 | 0.99 | 175 | 6.83 | 57.5 | 840 |
| RS-545-17145 | 12.0~45.0 | 40 | 9,250 | 0.12 | 8,065 | 0.64 | 200 | 16.56 | 64.7 | 1,561 |
Click here to view HD PDF file.
Remark:The above technical data are only for reference,we can customize them according to different requirements after evaluation.
