Specifications
12V Hair Dryer Motor RS-555
Diameter 35.8*57mm, Shaft 3.175mm
Voltage:3.6~60V
No-load Speed:3000~25000 rpm
ROHS compliance
1.motor size:35.8*57.0mm
2.mounting holes:2-M3.0*0.5
3.shaft:3.175mm in diameter, the length can be as customer required
4.power: can be as customer required
5.can match with 36/37mm gearbox
6.can be double shaft foran encoder,11ppr
7.samples are available now
8.part of motor specifications are listed below:
Basic Structure: Zinc coated steel housing / Zinc coated steel end cap
Application:Pan/tilt camera, dc motor for toy car, 12v DC Micro RS 555 Motor, 12v DC Micro RS 555 Motor, 12v DC Micro RS 555 Motor, 12v DC Micro RS 555 Motor, 12v DC Micro RS 555 Motor, 12v DC Micro RS 555 Motor,auto shutter, welding machines, water meter, IC card, grill, oven, cleaning machine, garbage disposers, household appliances, slot machines, money detector, toy car,automatic actuator,pump and RC model.
Weight: Approx. 220g
MODEL: RS-555, RS-550, RS-540 & RS-545 Models specs as below:
| Model | Voltage | No Load | At Max. Efficiency | Stall Torque | ||||||
| Operating Range(V) | Nominal | Speed | Current | Speed | Current | Torque | Output | Eff | ||
| V | r.p.m | A | r.p.m | A | g.cm | W | % | g.cm | ||
| RS-540S-5045 | 4.5 ~ 12.0 | 12 | 17,800 | 0.98 | 15,300 | 6.15 | 320 | 50.26 | 68.1 | 2,278 |
| RS-540S-4565 | 4.5 ~ 18.0 | 12 | 11,000 | 0.52 | 9,450 | 3.18 | 260 | 25.22 | 66.1 | 1,845 |
| RS-540S-33110 | 6.0 ~ 24.0 | 12 | 6,750 | 0.3 | 5,700 | 1.6 | 220 | 12.87 | 67 | 1,414 |
| RS-540S-18270 | 12.0 ~ 30.0 | 12 | 2,780 | 0.13 | 2,150 | 0.42 | 126 | 2.78 | 55.2 | 556 |
| RS-545S-5016 | 3.0 ~ 9.0 | 9 | 22,500 | 1.5 | 19,000 | 8.12 | 262 | 51.1 | 69.9 | 1,684 |
| RS-545S-2870 | 6.0 ~ 30.0 | 9 | 2,270 | 0.23 | 1,840 | 1 | 150 | 2.83 | 68.7 | 792 |
| RS-545S-2486 | 9.0 ~ 30.0 | 12 | 4,800 | 0.25 | 3,800 | 0.99 | 175 | 6.83 | 57.5 | 840 |
| RS-545-17145 | 12.0~45.0 | 40 | 9,250 | 0.12 | 8,065 | 0.64 | 200 | 16.56 | 64.7 | 1,561 |
| model | voltage | no load | at maximum efficiency | stall | |||||||||
| range | nominal | speed | current | speed | current | torque | output | eff. | torque | current | |||
| v | rpm | a | rpm | a | mN.m | gf.cm | w | % | mN.m | gf.cm | a | ||
| RS-550pc-8019 | 6~9.6 | 7.2 | 15300 | 1.4 | 13540 | 10.8 | 41.7 | 425 | 59.1 | 68 | 363 | 3700 | 83 |
| RS-550vc-7525 | 6~14.4 | 12 | 17600 | 1.2 | 15730 | 10.1 | 58.3 | 594 | 95.9 | 69 | 549 | 5596 | 85 |
| RS-555sa-4022 | 6~12 | 8 | 9600 | 0.53 | 8000 | 3.42 | 21.56 | 220 | 18.1 | 66 | 130 | 1326 | 17.9 |
| RS-555ph-2670 | 9~15 | 12 | 4500 | 0.2 | 3800 | 0.83 | 16.71 | 170.1 | 6.69 | 67.2 | 107.8 | 1100 | 4.26 |
|
RS-555sh-6838 |
16~21 | 18 | 15000 | 0.8 | 11000 | 2.8 | 30 | 306 | 34.6 | 68.7 | 161.7 | 1650 | 11.4 |

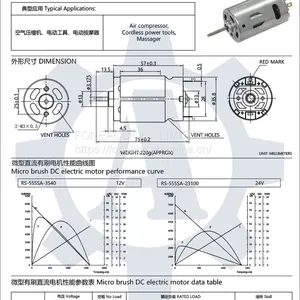

Click here to view HD clear specification of rs-555 micro dc motor
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
