Chinese first brand roundness measurement machineWilson,one of the drafting members of the National Standard of Roundness Measuring Machines(GB/T 26098-2010)
Automatic roundness measuring instrument roundness measuring equipment roundness tester
Wilson, the ranking contour and roundness measuring machine manufacturer and supplier in China.
Wilson form measuring solutions are ideal for accurately assessing complex geometry. No matter you're measuring form shape, surface roughness, or roundness and cylindricity, there's a suitable solution for your practical application.

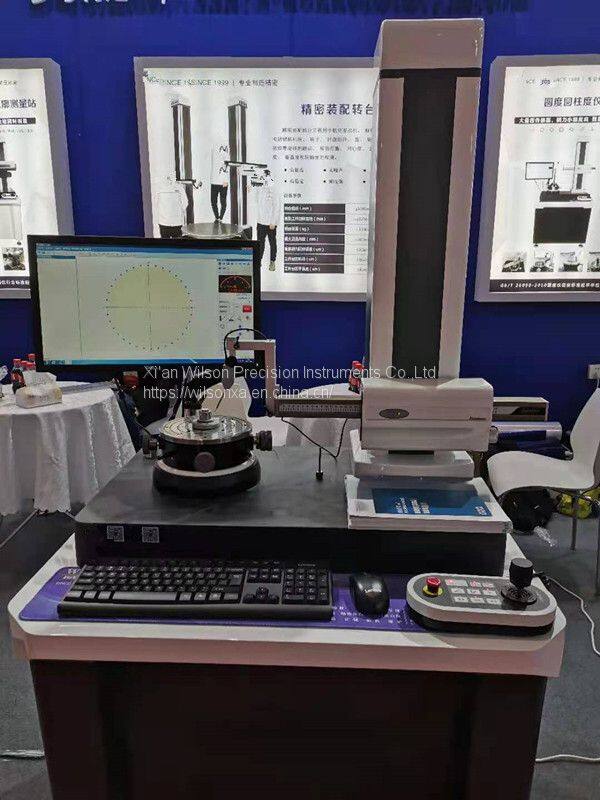

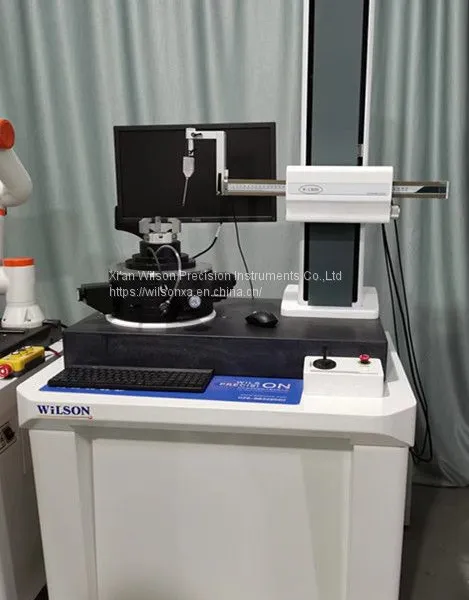

This CA series high accuracy roundness/cylindricity measuring instrument delivers ±0.0125μm accuracy and its rotary table with auto-centering and auto-tilting functions.
Main parameters: roundness, cylindricity, concentricity, coaxiality, flatness, parallelism, perpendicularity, eccentricity
Main Functions:
Measurement of roundness, cylindricity, straightness, runout, full runout, taper, diameter, concentricity, coaxiality, flatness, parallelism, perpendicularity, eccentricity, etc. of various regular and irregular ring-shaped workpieces
Analysis of surface waviness (Wc, Wp, Wv, Wt, Wa, Wq), spectrum analysis, wave height analysis
Roundness evaluation method: minimum area method, least squares method, minimum external circle method, maximum internal tangent circle method
Roundness filtering method: 1-500, 1-150, 1-50, 1-15
Waviness: 3-16, 15-500, 17-100
Technical Features:
● Accuracy: Adopting high precision rotary aerostatic bearing structure, the accuracy is up to ±0.0125μm.
● Lifespan: The spindle adopts air floating structure, which never wears out and keeps the accuracy for a long time, and the instrument has a long lifespan.
● Data acquisition adopts imported precision circular grating, which collects 14,400 points per week with high accuracy and stability.
● Appearance: One-piece structure, beautiful and elegant.
● CA measurement software based on WINDOWS system, with intuitive and friendly interface, easy operation and rich measurement functions.
● Automatic recognition of contour interruption, automatic rejection of notch, abnormal point function.
● Partial arc measurement roundness function.
● Powerful analysis function, such as taper, diameter, ripple degree, wave height and spectrum analysis, etc.
● SPC statistical analysis: statistical analysis of a large number of measurement data and graphic analysis report.
● The measurement parameters can be set to judge the process requirements to improve the observability of quality control.
● Single or multiple measurement data can be printed on the same page.
● Different sizes of ruby styli can be selected at will.
● High quality and reliable industrial control computer is adopted.
Product Parameters:
Item/Model |
CA35 |
CA65 |
CA95 |
CA125 |
CA255 |
|
Measuring range |
Parts max turning diameter |
φ420mm |
φ500mm |
|||
Max measuring height |
550mm |
650mm |
||||
Max measuring depth |
Use standard probes: 100mm (when the aperture diameter is less than 36mm, the maximum measurement of the non-standard fixture is 300mm,the aperture diameter is greater than 36mm, optional) |
|||||
Max load |
25Kg |
50Kg |
100Kg |
150Kg |
250kg |
|
Size |
Machine size |
910×700×1500mm |
||||
Package size |
1000×900×2000mm |
|||||
