Home > Products > Vitrified Grinding wheel > 6A2 Vitrified Diamond Grinding Wheels for PCD & PCBN Tools

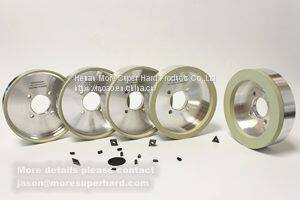

6A2 Vitrified Diamond Grinding Wheels for PCD & PCBN Tools
- China
- T/T D/P D/A PayPal Cash
- 15 days
You May Like
-
6A2 Resin Bond Diamond Grinding Wheel for Carbide
-
11V9 Hybrid Diamond Grinding Wheels for CNC Tools
-
11V9 Resin Diamond Grinding Wheels for Thermal Spray Coating Industry
-
Vitrified CBN Grinding Head for Medical Equipment
-
1A1R Electroplated Diamond Cutting Blades for Aircraft Industry
-
Electroplated Diamond Band Saw Blades
Product Details
| Brand Name | Moresuperhard | Place of Origin | China | |
| Model Number | 6A2 | Size | Customized | |
| Shape | Cup-Shaped | Hardness | Superhard | |
| Bonding Agent | Ceramic | Abrasive | Diamond |
Product Description
Brief Introductions:
Type: | 6A2 |
Bond: | Vitrified |
Application: | PCD&PCBN tools |
Specification: | Customized |
Brand Mark: | Moresuperhard |
Trade Terms: | FOB |
Packages: | Hard carton |
Delivery Time: | 15 workdays by express |
Introductions of Moresuperhard’s Vitrified grinding wheels
Polycrystalline Diamond is diamond grit that has been fused together under high-pressure, high-temperature conditions in the presence of a catalytic metal. The extreme hardness, wear resistance, and thermal conductivity of diamond make it an ideal material for the cutting tools manufacturing.

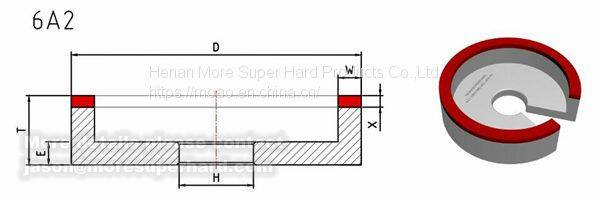

Type | D(mm) | T(mm) | H(mm) | W(mm) | X(mm) |
6A2 | 100 | 40 | 32,40 | 3,5,10,15,20 | 10 |
125 | 40 | 32,40 | 3,4,5,10,15,20 | 10 | |
150 | 40 | 32,40 | 1,2,3,5,10,15,20 | 10 | |
Other size can be made according to customer’s requirement. | |||||
Detailed Specifications can be customized!
Advantages of Moresuperhard’s Vitrified grinding wheels
* The porous structure of the abrasive improved diamond exposure and can prevent vertical streaks on workpiece and improve surface quality
* Accurately control geometric tolerances to make a good abrasive layer
* Good self-sharpening, high grinding efficiency, high wear resistance and less abrasive grain consumption
* High precision workpiece. PCD tools can reach high efficiency, good surface finish and edge no chipping
* Vitrified bond wheels offer tool life greater than 150 times that of a resin bond wheel and can be easily trued and dressed on the machine
About us:
More Super Hard devotes to develop and produce advanced diamond & CBN grinding wheels to provide you a complete grinding solution. With the advanced bond systems (Vitrified bond, Resin bond, Metal bond, Hybrid bond and electroplated), our products cover all grinding types, flat grinding, cylindrical grinding, internal grinding, centerless grinding, profile grinding, peripheral grinding, etc. Fit manual grinder and also CNC grinding center.
