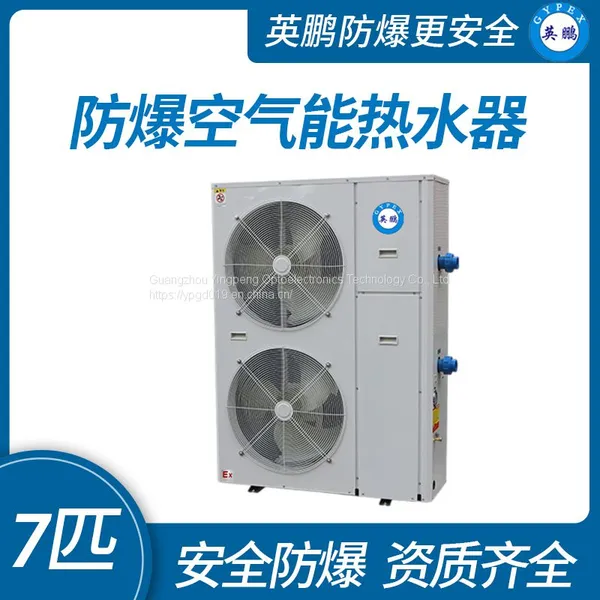

Yingpeng explosion-proof explosion-proof air energy water heater 7 pieces

principle

The air energy heat pump operates according to the "inverse Carnot" principle and the inverse Carnot cycle principle. By operating the compressor system, it absorbs heat from the air to produce hot water. The specific process is as follows: the compressor compresses the refrigerant, and after compression, the temperature rises to a higher level. After passing through the condenser in the water tank, hot water is produced. After heat exchange, the refrigerant returns to the compressor for the next cycle. In this process, the air heat is absorbed by the evaporator and introduced into the refrigerant, which is then introduced into the water to generate hot water. A new generation of water heaters heated by compressor air, namely air energy heat pump water heaters. Visually speaking, the "outdoor unit" compresses air like an air pump, causing the air temperature to rise, and then conducts heat into the indoor water storage tank through a liquid that will boil at -17 ℃, and then releases the heat and conducts it into the water.

Product parameters;

Suitable for the ambient temperature range- 12~43℃

Maximum outlet water temperature; 60℃

20 ℃ ambient heating capacity; 19kw

20 ℃ ambient temperature water yield; 409L

-7 ℃ ambient heating capacity; 11.3KW

-7 ℃ ambient temperature water output; 243L

Power Supply; 380V-50HZ

Operation control; Microcomputer fully automatic control, running status display, abnormal status alarm

Safety devices; High and low voltage switch, anti freezing switch, overcurrent protection switch, compressor overheat protection device

compressor; 1 unit

cryogen; R410a

Inlet and outlet pipes; DN25

Water output; 4.2m3/H

Air outlet method; Top out wind
