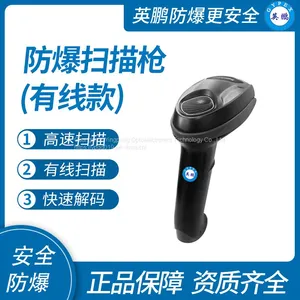

Help CenterGuangzhou Yingpeng Explosion-proof Scanning Gun (wired Version)
Related Products
-
Guangzhou Yingpeng Explosion-proof Chain HoistNegotiableMOQ: 1 Box -
Guangzhou Yingpeng Explosion-proof Iron Bucket Heating Blanket - BlackNegotiableMOQ: 1 Box
-
Guangzhou Yingpeng Explosion-proof Iron Bucket Heating Blanket - Silver WhiteNegotiableMOQ: 1 Box
-
Guangzhou Yingpeng Explosion-proof Fire Water Cannon With a Range of 55 MetersNegotiableMOQ: 1 Box
-
Guangzhou Yingpeng Explosion-proof Fire Water Cannon With a Range of 60 MetersNegotiableMOQ: 1 Box
Physical characteristics:
Size: 170mm x 95mm x 70mm
Weight: 126g
Voltage: SVDC
Current: 350mA
Performance characteristics:
Sensor pixels: 640 pixels (high) x 480 pixels (high)
Light source: Illuminance: 3500K
Field of view angle: 36 degrees x 25 degrees
Rotation tilt deflection: 360 *, ± 65 *, ± 60 °
Print contrast: minimum reflection difference of 25%
Motion tolerance: Up to 25 inches. Every second (63.5 centimeters)
Supported interfaces for interface support: USB.RS232
Symbol decoding ability:
One-dimensional barcode/1-D: UPC, EAN, code 128, code 39, code 93, code 11, 5 of matrix 2, 5 of code interleaving 2, etc
2D barcode/2-D: data matrix, maximum code. QR code, WeQR, Aztec, etc
User environment:
Working temperature: between 0 ℃ and 50 ℃
Storage temperature: -40 ° C to 70 ° C
Humidity: 0% to 95% relative humidity, non condensing
Seismic shock specification: designed to withstand a drop of 1.5 meters (5 ')
Ambient light immunity Ambient light license: 100.000 lux
Decoding range:
Code 39 (5 million): 30mm-150mm
100% unsaturated fatty acid (13 mils): 50mm to 380mm
Code 39 (17.8 million): 20 millimeters and 230 millimeters
1D minimum resolution: 4 mils
Performance may be affected by barcode quality and environmental conditions
Product features: The use of intrinsically safe explosion-proof locks does not ignite explosive mixtures in the surrounding environment due to sparks, arcs, and thermal energy generated during use, and has explosion-proof performance that meets the requirements of intrinsically safe explosion-proof; Suitable for various flammable and explosive environments, gas stations, gas stations, chemical pharmaceuticals, military supplies, firecrackers, fireworks, oil mining, etc.
The execution standards for this series of products are as follows:
GB3836.1-2010 Explosive Atmospheres - Part 1: General Requirements for Equipment
GB3836.2-2010 Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures "d"
GB3836.4-2010 Explosive Atmospheres - Part 4: Equipment Protected by Intrinsically Safe "i"
GB3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "
GB3836.15-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 15: Electrical Installation in Hazardous Areas (excluding Coal Mines)"
Applicable scope:
1. This product is suitable for explosive environments such as petrochemical, metallurgical, textile, food, bioengineering, pharmaceutical, warehouse, aerospace engineering, and places with temperature control requirements;
Zone 2.1 and Zone 2 hazardous gas locations
3. Class IIA, IIB, IIC, T1-T4 explosive gas or steam environment;
