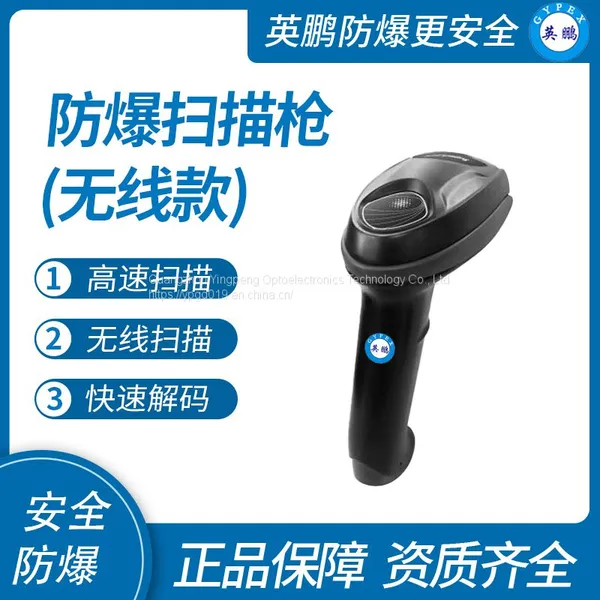

Guangzhou Yingpeng Explosion-proof Scanning Gun (wireless Version)

physical characteristics

Size: 207 mm x 82 mm x 109mm

Weight: 475g

Electric current: 5V DC+/-10% @ 500

Performance characteristics:

Sensor element: 640 pixels (high) × 480 pixels high

Source of light source: Aiming: 617 nanometer LED; Lighting: 625 nanometer LED

On site corner: 40 * (meters) x 31.5 * (five)

Pi Tu Tu Tu Bi Biao Yaw Roll/Pitch/Yaw: 360 *, ± 65 *, ± 60 °

Battery capacity: 4 2v/2600mAh

Charging time: 5-6h

Battery life: Scan once every 1 second, capable of working continuously for 10 hours,

Wireless technology: Bluetooth 5.0

Operating distance: 200 meters (Saux)

Print contrast: minimum reflection difference of 25%

Supported interfaces for interface support: US8.OTA, RS232

Motion tolerance of motion film: up to 5M per second

Symbol decoding ability:

Push barcode 1-0: UPCFANCode128Cose 39. Code 93 Code 11. Material25 Latest address Codabar, MSI

Plessey, GS1 data column, China Post, Korea Post, etc

Two push barcodes 2-0, PDF417, MicroPDF417, data matrix, Maxi code, QR code, MicroOR, Aztec Haruin, etc

User environment:

Working temperature: 0 to 50 degrees Celsius

Storage temperature: 40 ° to 70 °

Humidity: 0% to 95% relative humidity, non condensing

Specification for shock resistance: designed to withstand 1.5 meters (5 ") of droplets

Environmental light immunity Environmental light immunity: 100.000 tux

Decoding range

$5 million (Code 33): 30mm-100mm

13 ml (100% Uka): 40mm: 270mm

Minimum one-dimensional resolution: 3 million

Performance may be affected by barcode quality and environmental conditions

Product features: The use of intrinsically safe explosion-proof locks does not ignite explosive mixtures in the surrounding environment due to sparks, arcs, and thermal energy generated during use, and has explosion-proof performance that meets the requirements of intrinsically safe explosion-proof; Suitable for various flammable and explosive environments, gas stations, gas stations, chemical pharmaceuticals, firecrackers, fireworks, oil mining, etc.

The execution standards for this series of products are as follows:

GB3836.1-2010 Explosive Atmospheres - Part 1: General Requirements for Equipment

GB3836.2-2010 Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures "d"

GB3836.4-2010 Explosive Atmospheres - Part 4: Equipment Protected by Intrinsically Safe "i"

GB3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "

GB3836.15-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 15: Electrical Installation in Hazardous Areas (excluding Coal Mines)"

Applicable scope:

1. This product is suitable for explosive environments such as petrochemical, metallurgical, textile, food, bioengineering, pharmaceutical, warehouse, aerospace engineering, and places with temperature control requirements;

Zone 2.1 and Zone 2 hazardous gas locations

3. Class IIA, IIB, IIC, T1-T4 explosive gas or steam environment;
