Quarry Cone Crusher Symons Cone Crusher For Rock Stone Crushing

Zhengzhou VANGUARD Machinery Technology Co., Ltd.
Quarry Cone Crusher Symons Cone Crusher For Rock Stone Crushing thumbnail-1
Quarry Cone Crusher Symons Cone Crusher For Rock Stone Crushing thumbnail-2
Quarry Cone Crusher Symons Cone Crusher For Rock Stone Crushing thumbnail-3
Quarry Cone Crusher Symons Cone Crusher For Rock Stone Crushing thumbnail-4
Quarry Cone Crusher Symons Cone Crusher For Rock Stone Crushing thumbnail-5
Quarry Cone Crusher Symons Cone Crusher For Rock Stone Crushing photo-1

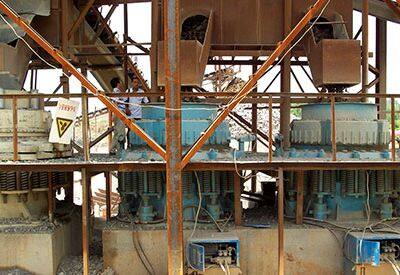

Quarry Cone Crusher Symons Cone Crusher For Rock Stone Crushing photo-2
Quarry Cone Crusher Symons Cone Crusher For Rock Stone Crushing photo-3

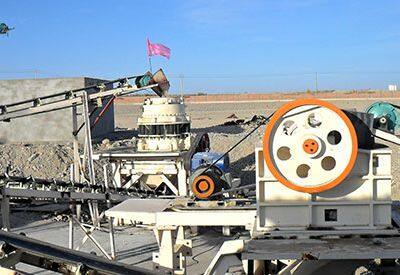

Quarry Cone Crusher Symons Cone Crusher For Rock Stone Crushing photo-4
Quarry Cone Crusher Symons Cone Crusher For Rock Stone Crushing photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
VANGUARD
Place of Origin:
China
Type:
Jaw Crusher
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name VANGUARD
Place of Origin China
Type Jaw Crusher
Certification ISO9001-2008 international quality management system certification and European CE certification
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 months
Application stone,ore,coal,sand
Condition New
Motor Type AC Motor
Capacity(t/h) 10-750 T/H

Product Description

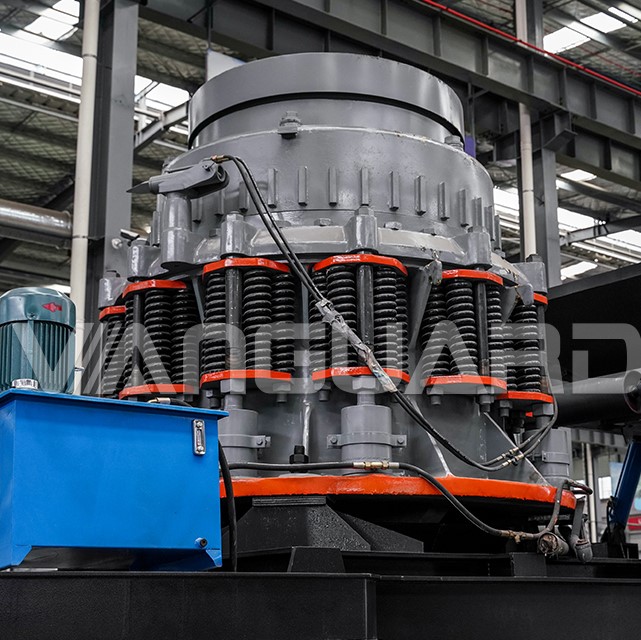

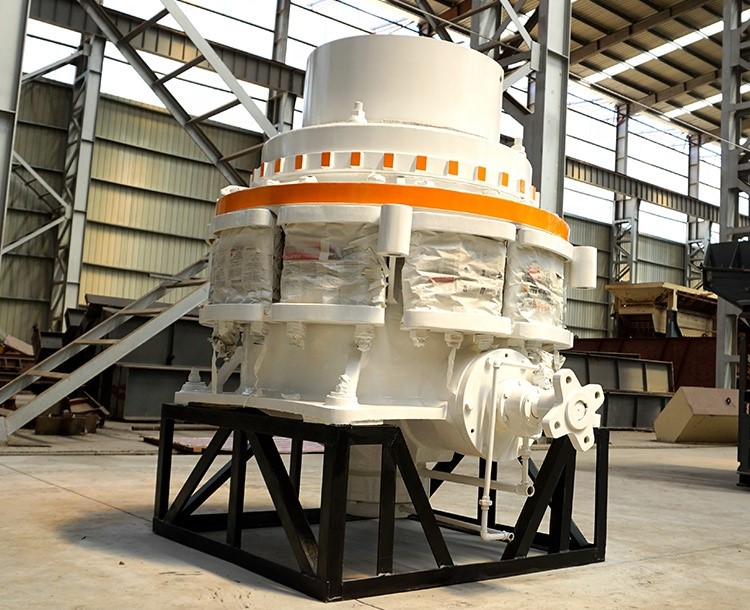

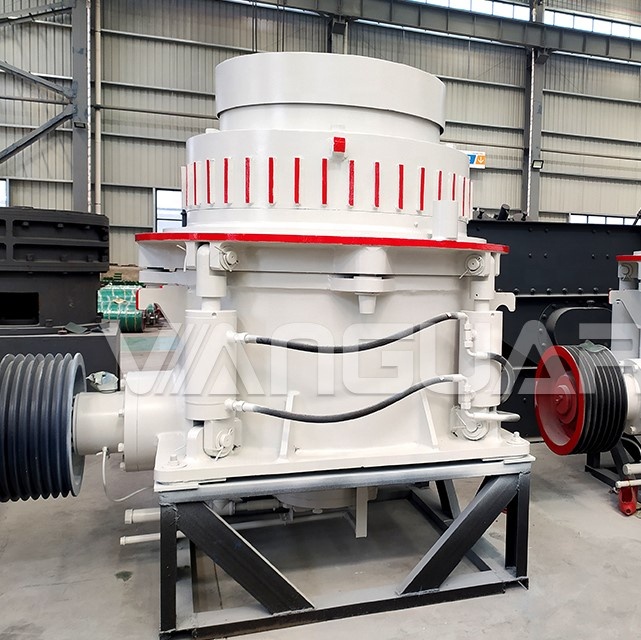

The CSV Series Symons Cone Crusher is suitable for crushing all kinds of ores and rocks with medium or above hardness. Comparedwith PY Series Spring Cone Crusher, it has the characteristics of reliable structure, high production efficiency, and convenient adjustment. It is the most ideal equipment that suitable for crushing hard, medium hardness above all kinds of ores and rocks in large scale factories, which widely used in metallurgy, construction, hydropower, transportation, chemical industry, building materials industry.
STRUCTURE CHARACTERISTICS
1. Simple structure, smooth operation, stable performance and leading output among similar products;
2. After adopting CO2 protection welding treatment, a machine frame is tight and durable;
3. All easily worn parts adopt high manganese steel, to prolong the service life of mainframe;
4. A spring locking device can provide stable crushing force and excessive iron release protection;
5. A labyrinth type dust proof ring is used for sealing to ensure clean lubricating oil;
6. A hydro-cylinder for chamber clean can quickly remove aggregates not-easily crushed materials, to greatly shorten maintenance
time.
7. A material-discharging port is hydraulically adjusted, so that the adjustment is convenient, quick and accurate;
8. The mounting faces of moving and static gear plates both are subjected to inish achining, and fillers are not used, so their replacements are convenient and quick;
9. A lubricating system is provided with an oil return and temperature protection device, and interlocked with a main motor, so that the main motor is protected from damage.
PRODUCT PARAMETERS
Model
Cavity
Max. Feed Size (mm)
Min. Discharge Port Size (mm)
Motor Power (KW)
Closed Edge Material-Discharging Port( mm)
Capacity
(TPH)


CSV60
C
95
10


45
10-38
20-75
M
72
6
6-38
18-60


CSV110
C
160
13


110
13-38
20-75
M
115
10
10-25
18-60
F
80
8
6-19
80-235
EF
50
6
6-19
65-150


CSV132
C
180
13


132
13-38
115-260
M
130
10
10-25
100-175
F
90
10
10-19
80-140
EF
60
6
6-19
60-130


CSV160
C
200
16


160
16-51
150-390
M
150
13
13-25
115-210
F
102
10
10-19
90-160
EF
70
8
10-19
88-155
CSV200
C
215
19
200
19-51
200-420
M
160
16
16-25
155-220
F
115
13
13-22
150-230
EF
76
8
10-200
122-200


CSV250
C
235
22


250
19-64
240-570
M
175
19
19-38
215-320
F
130
13
13-25
180-275
EF
90
10
13-25
148-265


CSV315
C
360
22


315
10-19
330-725
M
203
16
22-64
230-330
F
140
13
16-25
185-340
EF
95
10
13-22
180-335
Processed Materials:
Limestone, Granite, Basalt, River Pebbles, Quartz, Copper Ore, Iron Ore, Marble, etc.

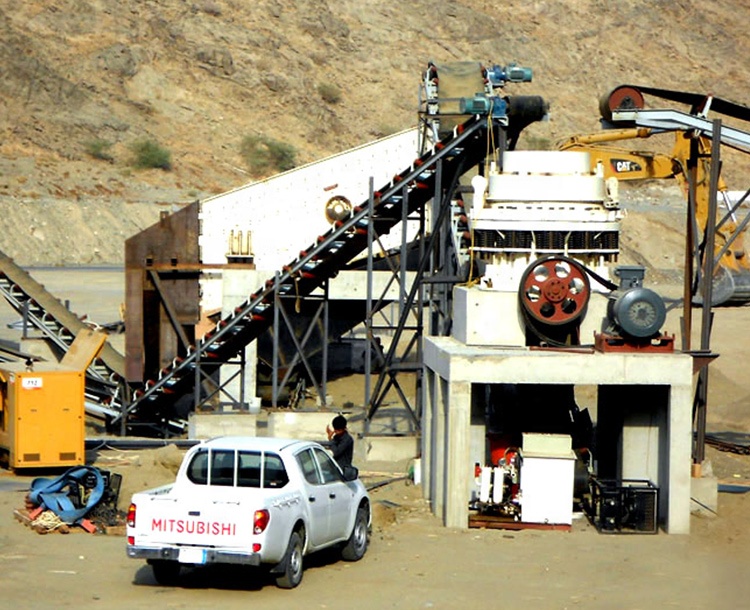

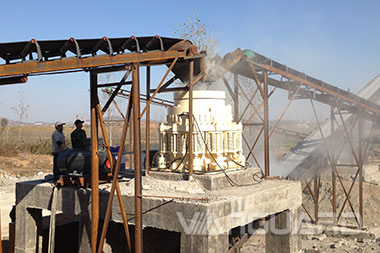

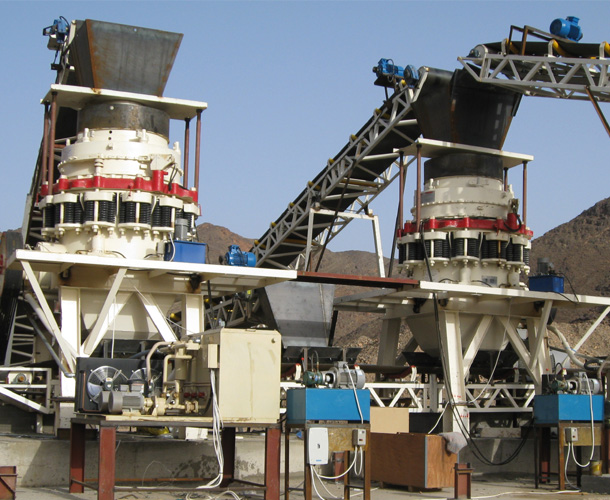

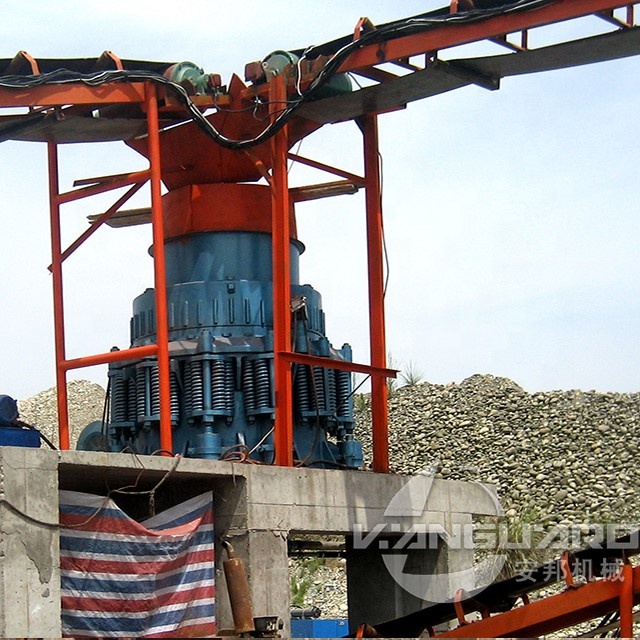

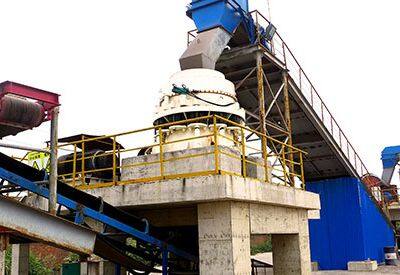

CUSTOMERS' SITES
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification, and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will
design the most  suitable proposal based on raw materials.

Q4: Why shoule I choose VANGUARD Machinery?
A: Ⅰ. Professional manufacturer of supplying mining crushing equipment, stone grinding equipment, ore beneficiation equipment etc.
Ⅱ. Experienced and professional R&D team and manufacturing team;
Ⅲ. We have a group of experienced and excellent after-sales service members who provide services for worldwide customers.
Ⅳ.All products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Ⅴ. Contact us for more details about price, packing, shipping and discount.
