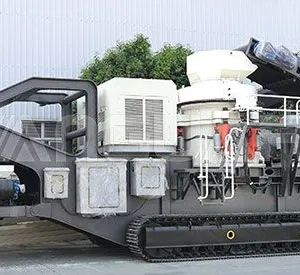

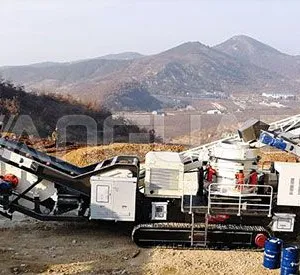

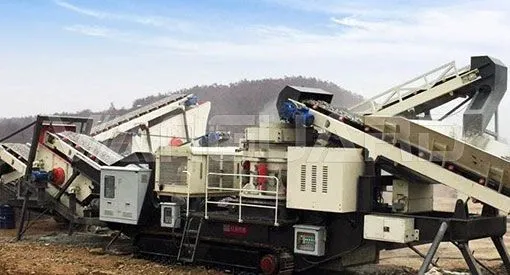

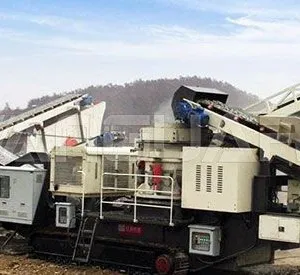

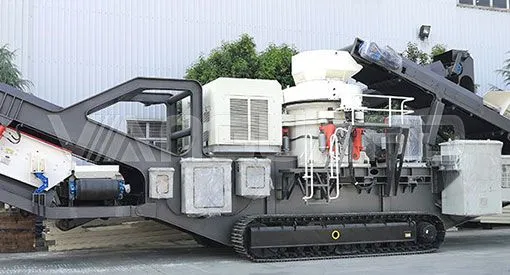

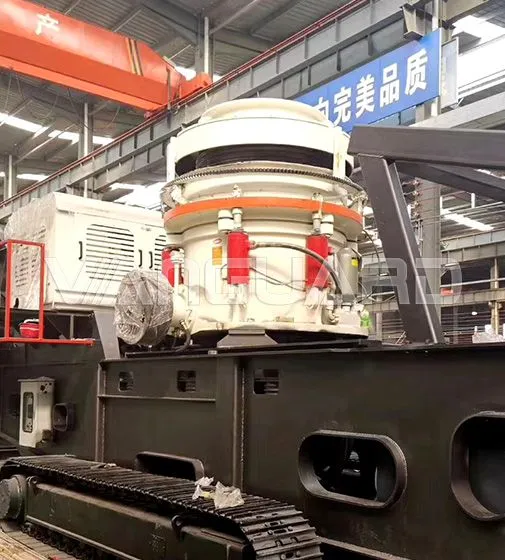

Crawler Type Mobile Crushing Station 150 Tph Mobile Cone Crusher With Vibrating Screen

Name: Crawler Type Mobile Crushing Station 150 Tph Mobile Cone Crusher With Vibrating Screen
Brand: VANGUARD
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	VANGUARD	Place of Origin:	China	Type:	Jaw Crusher
Certification:	ISO9001-2008 international quality management system certification and European CE certification	After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	12 months
Application:	stone,ore,coal,sand	Condition:	New	Motor Type:	AC Motor
Capacity(t/h):	50-400 T/H

Product Description

It integrates mechanical, hydraulic, electrical, automation, and other technologies, and it has many advantages such as high crushing efficiency, low production cost, convenient maintenance and adjustment, and excellent crushing product size. It is mainly used in secondary and tertiary crushing in metal mines and construction sand and stone processing. It is not afraid of narrow terrain and harsh environments, and it is the latest generation of products in the mining construction industry and metal mining industry.

PRODUCT PARAMETERS

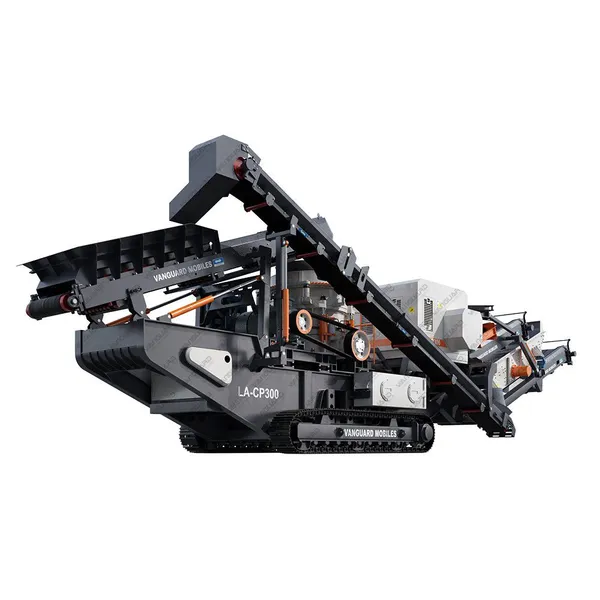

Crawler type mobile cone crushing plant		CP200 crawler type mobile cone crushing plant		CP300 crawler type mobile cone crushing plant		CP400 crawler type mobile cone crushing plant
Model		Items and specifications	power (kw)	Items and specifications	Power (kw)	Items and specifications	Power (kw)
Crushing equipment	Equipment Model	CP200	/	CP300	/	CP400	/
	Triangle belt	Standard	/	Standard	/	Standard	/
	Motor	Standard	160	Standard	250	Standard	315
Return screen	Equipment	1536	/	1542	/	1542	/
Return screen	Vibration motor	Standard	3.06	Standard	3.06	Standard	3.06
Frame	Hydraulic crawler chassis	Standard	/	Standard	/	Standard	/
Frame	Boat frame		/		/		/
Upper sieve conveyor	Specification	B1000*6m	7.5	B1000*6.5m	7.5	B1200*6.5m	7.5
Upper sieve conveyor	Drive method	Electric drum drive	/	Electric drum drive	/	Electric drum drive	/
Main conveyor	Specification	B1000*9m	11	B1000*10m	11	B1200*10m	11
Main conveyor	Drive method	Electric drum drive	/	Electric drum drive	/	Electric drum drive	/
Under the screen conveyor	Specification	B1000*6m	7.5	B1000*6.2m	7.5	B1200*6.2m	7.5
Under the screen conveyor	Drive method	Electric drum drive	/	Electric drum drive	/	Electric drum drive	/
Transfer conveyor	Specification	B650*2m	3	B650*2m	3	B650*2m	3
Transfer conveyor	Drive method	Electric drum drive	/	Electric drum drive	/	Electric drum drive	/
Return conveyor	Specification	B500*9m	5.5	B500*11m	5.5	B500*11m	7.5
Return conveyor	Drive method	Electric drum drive	/	Electric drum drive	/	Electric drum drive	/
Single power system	Walking engine	Yuchai diesel engine	106	Yuchai diesel engine	106	Yuchai diesel engine	145
Dual power system	Generator set	Yuchai diesel engine	300	Yuchai diesel engine	500
Electrical System	Electric control cabinet	Host soft-start, CHINT electrical components.	/	Host soft-start, CHINT electrical components.	/	Host soft-start	/
Matching		Belt Conveyor Folding Cylinder		Belt Conveyor Folding Cylinder		Belt Conveyor Folding Cylinder
Matching		Hydraulic pumps, valves, stations and tubing accessories		Hydraulic pumps, valves, stations and tubing accessories		Hydraulic pumps, valves, stations and tubing accessories
Dimensions(m)L×W×H		Working size174.84.1	Transport size173.33.6	Working size1954.8	Transport size193.63.8	Working size19.55.14.9	Transport size19.53.73.9
Weight (t)		Single-power model45tDual-power models47t		Single-power model55tDual-power models57t		65t
Power (kw)		Single-power model: 200.62kw(not including walking engine power),Dual-power models: 200.32kw(not including generator set power)		Single-power model: 290.62kw(not including walking engine power),Dual-power models: 290.62kw(not including generator set power)		357.62kw(not including generator set power)

Special Design of different models of the mobile crushing plant will be available upon request.

STRUCTURAL FEATURES

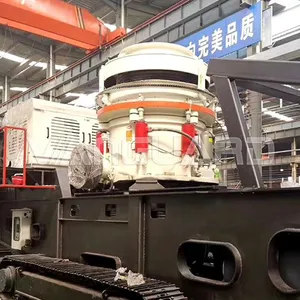

Equipped with a cone crusher with excellent performance suitable for medium and fine crushing, special crushing wall and concave design, supplemented by curved cavity and hydraulic cavity clearing system, improve the crushing efficiency and effectively reduce the easy operation loss.

It is equipped with a PLC control system to keep full cavity continuous feeding, reasonable configuration, a smooth process, high production efficiency, good product shape, and the final product is a high-quality cube.

It adopts a fully automatic crushing control system, which quickly responds to iron (overload) and automatically releases reset protection to ensure continuous, stable, and efficient production.

Large eccentricity, high swing frequency, and layer compression crushing make the equipment has a high capacity, large reduction ratio, and a good grain shape.

PRODUCT APPLICATION

Processed Material:

Limestone, Granite, Basalt, River Stone, Quartz, Copper Ore, Iron Ore, Marble.etc

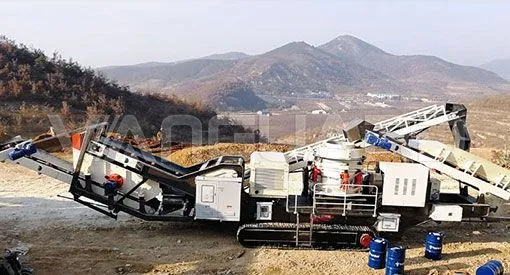

CUSTOMERS' SITES

Packaging and Shipping

About VANGUARD

Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.

Matching of production and support system allows customers to get the best service at the lowest cost.

Qualification

Our products have passed ISO9001-2008 international quality management system certification and European CE certification and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.

Our Services

FAQ

Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will
design the most suitable proposal based on raw materials.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
