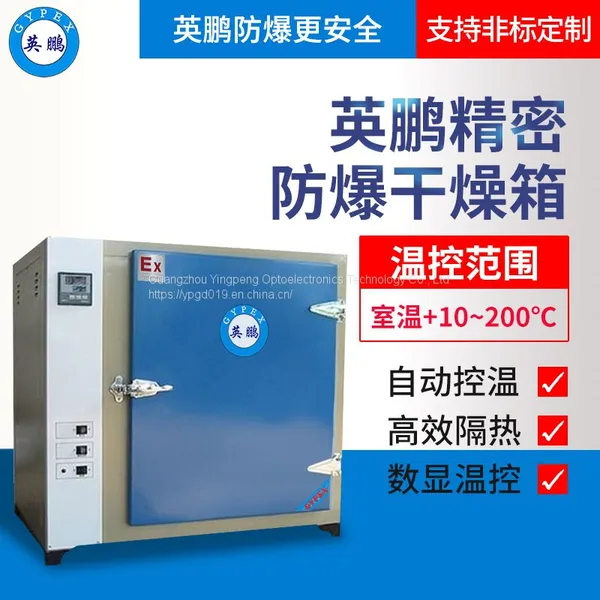

Guangzhou Yingpeng Explosion-proof Precision Oven Manufacturer

High temperature explosion-proof oven, Yingpeng explosion-proof drying oven, precision explosion-proof drying oven

product details

Product Details:

Sizes can be produced according to customer requirements

Temperature range: room temperature+10-200 ℃, any temperature within this range can be adjusted. Inner liner material: made of 1.2mm thick SUS304 brushed stainless steel plate

Outer wall material: Made of 1.2mm thick A3 cold-pressed carbon steel plate. Coating material: Metal hammer pattern paint (color milky white) is used for the outer wall. Insulation material: Efficient aluminum silicate fiber insulation layer, with good insulation performance

Temperature control device: a CHENGENG7412PID digital temperature controller, automatic temperature control, constant temperature motor power: 370W/380V * 3.

Air intake system: quantity 1, diameter 60mm. Integrated control and adjustment of air volume. Exhaust system: quantity 1, diameter 100mm. Interface can be installed to measure temperature outside the workshop: a stainless steel armored PT100 platinum resistance temperature sensing device, accurate temperature measurement

Heating element: stainless steel tubular electric heater, installed in the air ducts on both sides of the box. Alarm device: APT/AD16 type sound and light alarm, alarm prompt for the end of the constant temperature time, can be turned on or off.

Current and voltage: 380V/50HZ three-phase four wire oven. Internal structure: adopts strong pressure circulation air supply, with perforated plates on both sides. Internal accessories: Install high-temperature lights according to customer requirements. During the baking process, the product can be clearly seen through observation windows. Single door, with observation windows installed on the doors

Electrical components: All adopt Zhejiang Zhengtai. Our company specializes in customizing various industrial purpose ovens, drying ovens, ovens, tunnel ovens, and studio volumes ranging from 70 to 3500 liters. Dimensions, structures, and temperatures can be customized for new and old customers.
