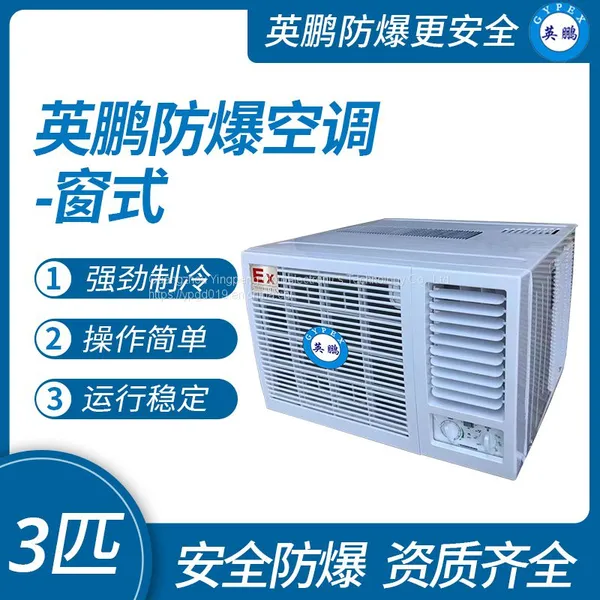

Help CenterGuangzhou Yingpeng Explosion-proof Air Conditioner - Window Type 3 Pieces
Related Products
-
Guangzhou Yingpeng Explosion-proof Air Conditioning Wall Mounted 1.5 PiecesNegotiableMOQ: 1 Case -
Guangzhou Yingpeng Explosion-proof Air Conditioning Wall Mounted 1 PieceNegotiableMOQ: 1 Case
-
Guangzhou Yingpeng Explosion-proof Air Conditioning Wall Mounted 2 PieceNegotiableMOQ: 1 Case
-
Guangzhou Yingpeng Explosion-proof Air Conditioning Wall Mounted 3 PieceNegotiableMOQ: 1 Case
-
Yingpeng Explosion-proof Explosion-proof Air Energy Water Heater 7 PiecesNegotiableMOQ: 1 Case
品牌：英鹏
型号： BKFR-7.5C
马匹数量： 3
制冷量：7000W
控制方式：单冷/加热/冷却
产品净重：52公斤
输入功率：2500W/220V
使用面积：25-35平方米
外形尺寸（长、高、深、mm）：660*440*670
防爆等级：ExdibmIICT4Gb
盈鹏悬挂式防爆空调系列品牌盈鹏
防爆窗式空调
型号 BKFR-2.6C BFKT-3.5 BFKT-5.0 BKFR-7.5C
马匹数量：1匹，1.5匹，2匹，3匹
制冷量 2500W 3500W 5270W 7000W
控制方式 单冷/冷/暖单冷/冷/暖单冷/冷/暖单冷/冷/暖单冷/冷/暖
产品净重 18kg 30kg 48kg 52kg
输入功率 800W/220V 1465W/220V 2100W/220V 2500W/220V
使用面积有5-10平方米、10-20平方米、15-25平方米、25-35平方米
外形尺寸（长、高、宽）mm 410*300*360 610*390*540 660*440*670 660*440*670**
防爆等级 ExdibmIICT4Gb ExdibmIIBT4Gb ExdibmIIBT4Gb ExdibmIICT4Gb
防爆窗空调适用环境：
适用于1区和2区的爆炸性气体环境;
适用于IIA、IIB和IIC类爆炸性气体环境;
Suitable for environments with temperature groups T1 to T4;
Suitable for explosive hazardous environments such as petroleum refining, chemistry, battery storage, paint rooms, chemicals, pharmaceuticals, etc;
Suitable for use in relatively small spaces;
Product features:
There are two types of explosion-proof window air conditioners based on their performance: single cooling type and cold heating type;
◆ Explosion proof window type air conditioning is designed according to the requirements of GB 3836 series standards for explosion protection, using special processing techniques and manufacturing methods for explosion-proof processing;
The explosion-proof window type air conditioning pipeline connection installation has been completed at the factory, and can be operated by simply connecting the circuit.
When all explosion-proof air conditioners leave the factory, they are accompanied by a complete set of product technical data and installation instructions. Users must strictly follow the requirements of the instructions for installation and use;
The product has a compact structure, beautiful and elegant appearance, and is easy to install and maintain;
◆ Efficient, energy-saving, and low noise;
◆ Steel pipe or cable wiring.
★ The explosion-proof air conditioner adopts advanced ultra-weak current technology to isolate intrinsically safe circuits, and has undergone special manufacturing and explosion-proof treatment. The design and manufacturing of the product strictly follow relevant standards:
GB 3836.1-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"
GB 3836.2-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Flameproof Type" d "
GB 3836.3-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 3: Increased Safety" e "
GB 3836.4-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Intrinsically Safe" i "
GB 3836.9-2006《爆炸性气体环境用电气设备 第9部分：封装“ m ”
产品表面采用最大表面温度极限保护技术，综合防静电技术，各种安全保护技术;
2.宽电压设计，适用于电源和电压不稳定的现场;220V/50Hz、220V/60Hz、110V/50Hz;
