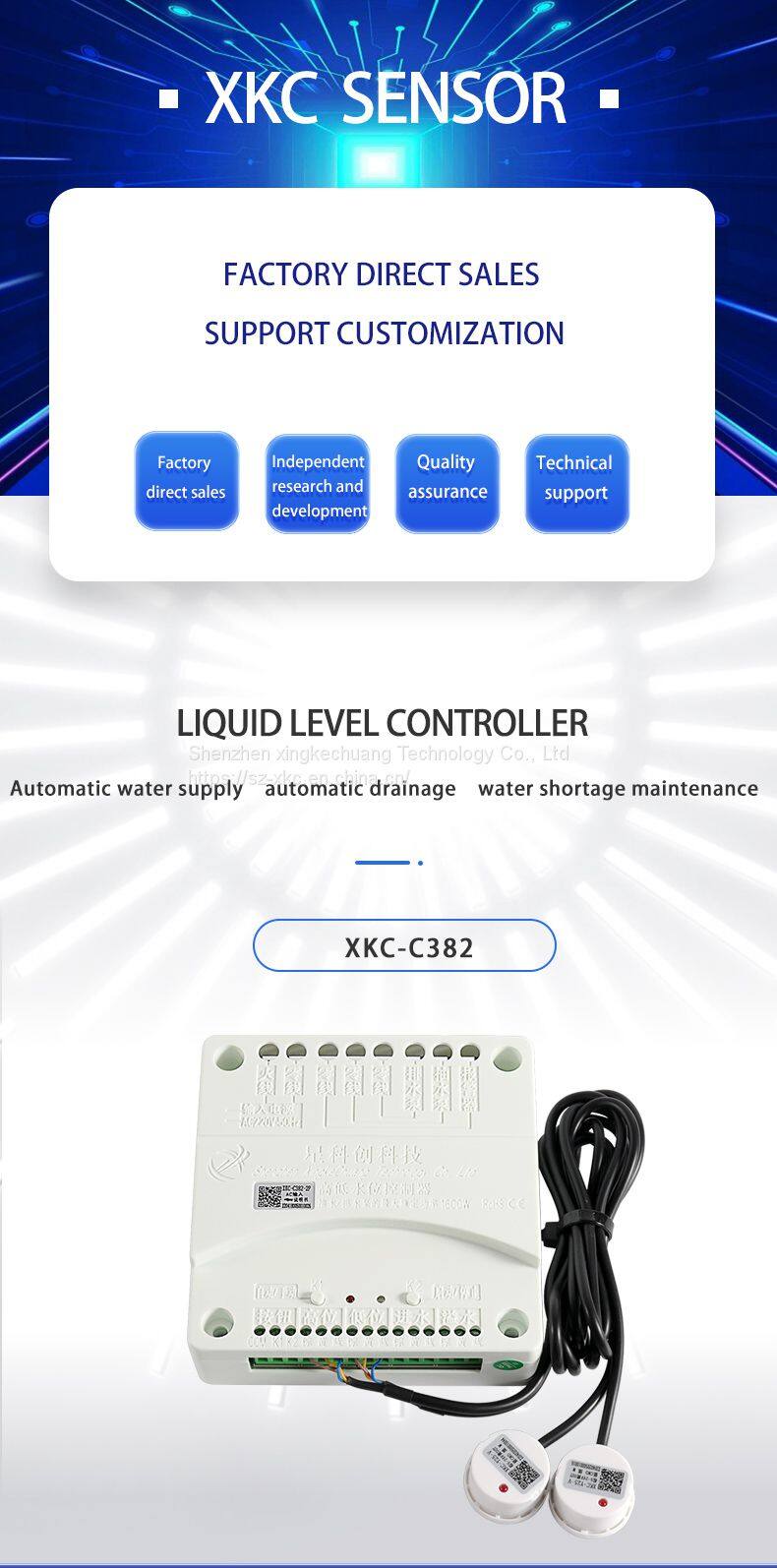

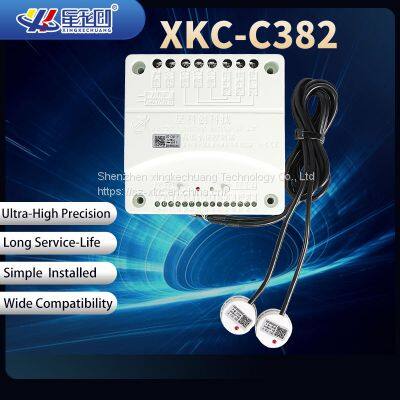

XKC-C382 AC110-250V Automatic Filling & Drainage Water Level Controllers and Sensors, Anti-overflow Anti-empty Pumping

Shenzhen Xingkechuang Technology Co., Ltd
XKC-C382 AC110-250V Automatic Filling & Drainage Water Level Controllers and Sensors, Anti-overflow Anti-empty Pumping thumbnail-1
XKC-C382 AC110-250V Automatic Filling & Drainage Water Level Controllers and Sensors, Anti-overflow Anti-empty Pumping thumbnail-2
XKC-C382 AC110-250V Automatic Filling & Drainage Water Level Controllers and Sensors, Anti-overflow Anti-empty Pumping thumbnail-3
XKC-C382 AC110-250V Automatic Filling & Drainage Water Level Controllers and Sensors, Anti-overflow Anti-empty Pumping thumbnail-4
XKC-C382 AC110-250V Automatic Filling & Drainage Water Level Controllers and Sensors, Anti-overflow Anti-empty Pumping thumbnail-5
XKC-C382 AC110-250V Automatic Filling & Drainage Water Level Controllers and Sensors, Anti-overflow Anti-empty Pumping photo-1
XKC-C382 AC110-250V Automatic Filling & Drainage Water Level Controllers and Sensors, Anti-overflow Anti-empty Pumping photo-2
XKC-C382 AC110-250V Automatic Filling & Drainage Water Level Controllers and Sensors, Anti-overflow Anti-empty Pumping photo-3
XKC-C382 AC110-250V Automatic Filling & Drainage Water Level Controllers and Sensors, Anti-overflow Anti-empty Pumping photo-4
XKC-C382 AC110-250V Automatic Filling & Drainage Water Level Controllers and Sensors, Anti-overflow Anti-empty Pumping photo-5
US$ 11 - 25 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
XingKeChuang
Place of Origin:
China
Model Number:
XKC-C382
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

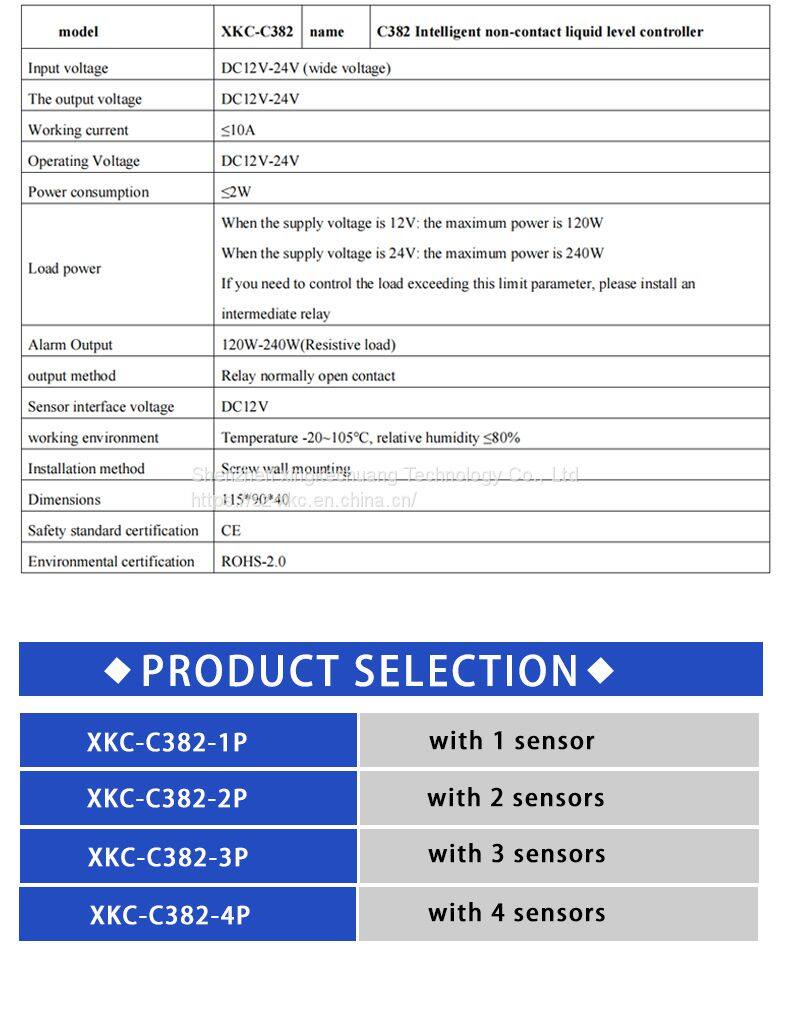

Brand Name XingKeChuang
Place of Origin China
Model Number XKC-C382
Usage Level Sensor
Theory Capacitance Sensor
Output Switching Transducer

1st. Overview

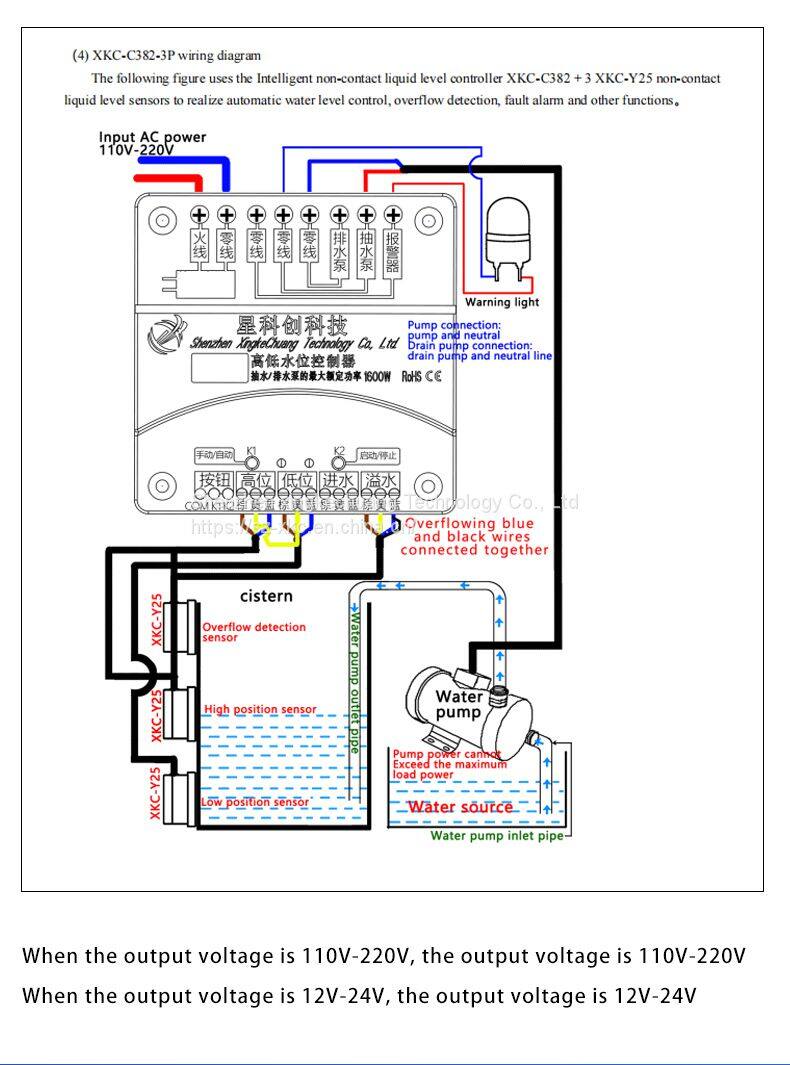

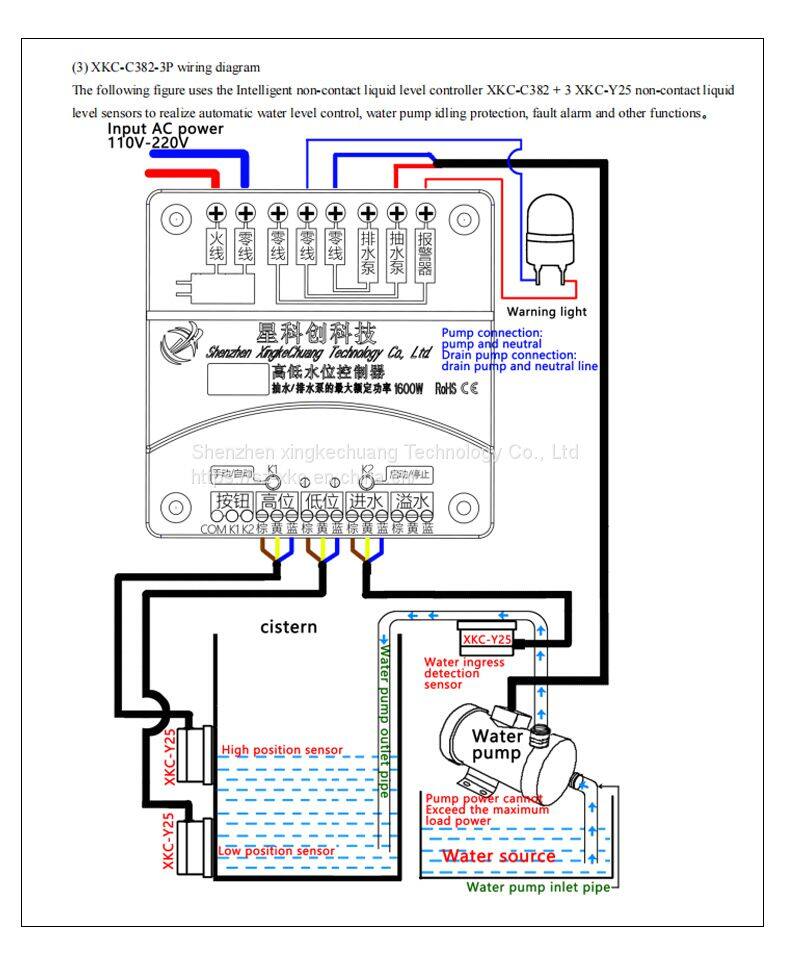

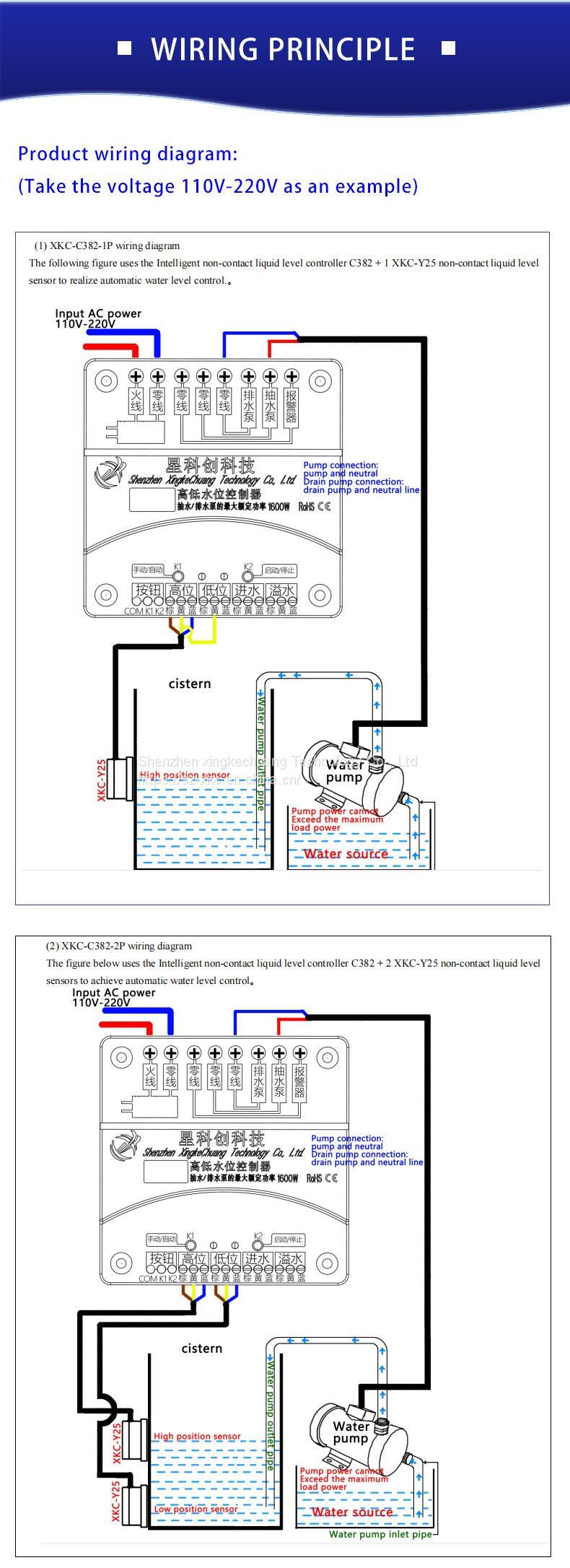

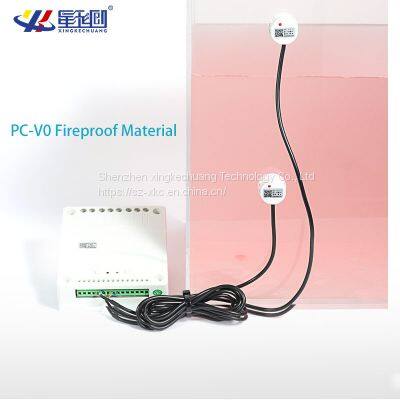

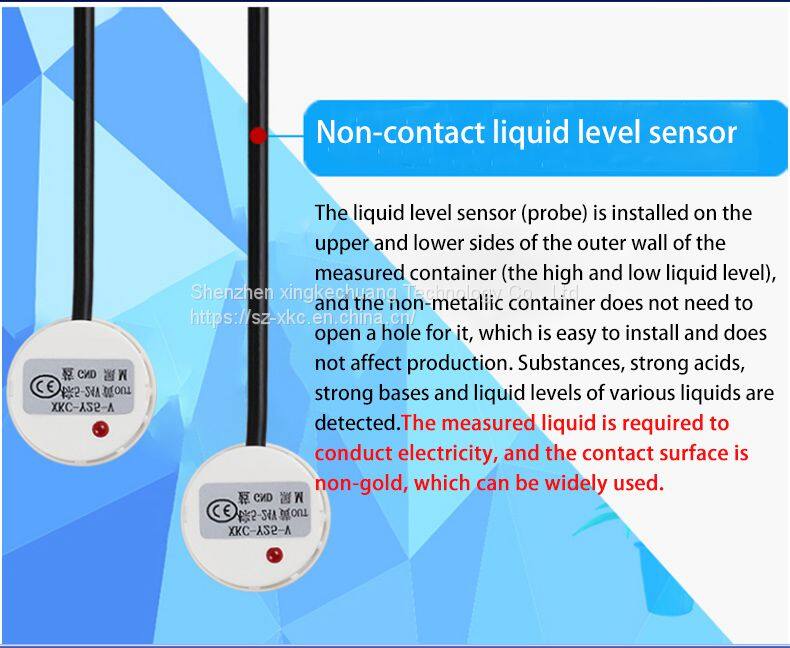

XKC-C382 Intelligent non-contact liquid level controller and two non-contact liquid level detection heads realize the  function of liquid level high and low control: when the container liquid level is too low, the low liquid level alarm signal sent  by the low liquid level sensor is triggered to trigger C382 The controller closes the relay and starts the water pump to add the  liquid level. When the liquid level reaches a certain height, the high liquid level sensor sends out a signal to trigger the C382  controller to open the relay and automatically stop the water pump to work in this way. Thereby, the function of automatic  control of the container liquid level is realized, and the container liquid level is kept stable.

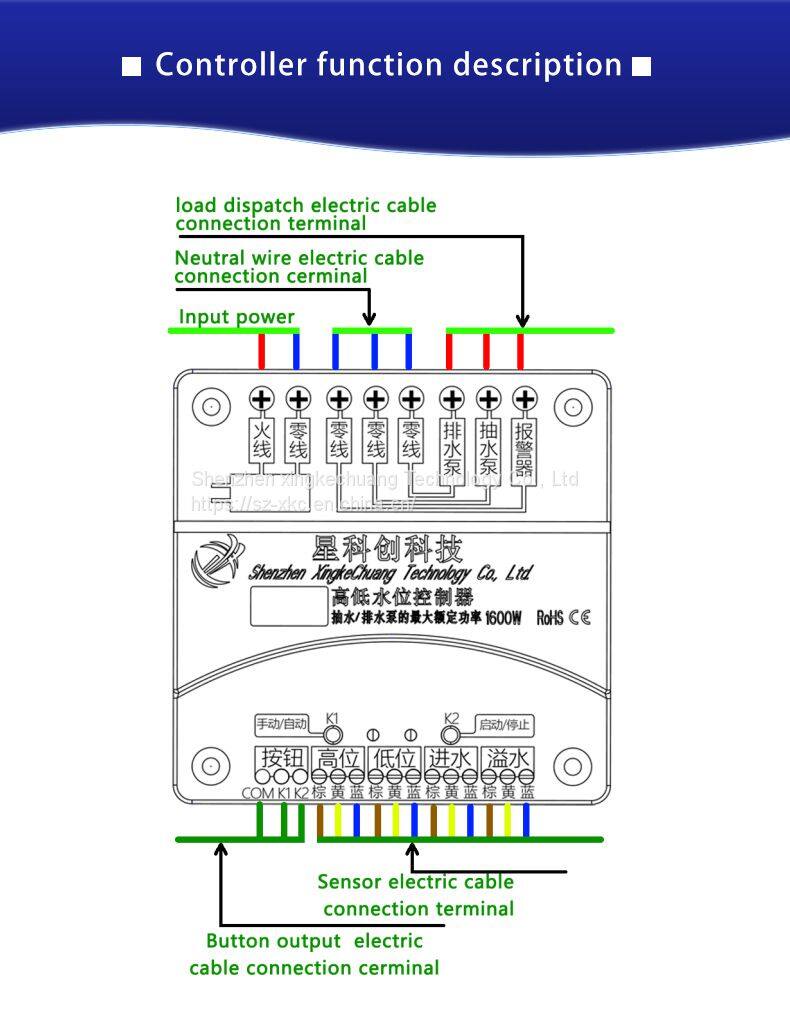

2nd.Product Features AC110V-220V wide voltage power supply Relay active contact output, suitable for various load control. The control is diversified, and the pump can be controlled in manual or automatic mode. Screw wall mounting is simple and convenient.


Product Tags: water level controller automatic , water level controller , level controller , liquid controller , automatic water level controller , water level sensor with control box , water level controller sensor , water level sensor , liquid level sensor
