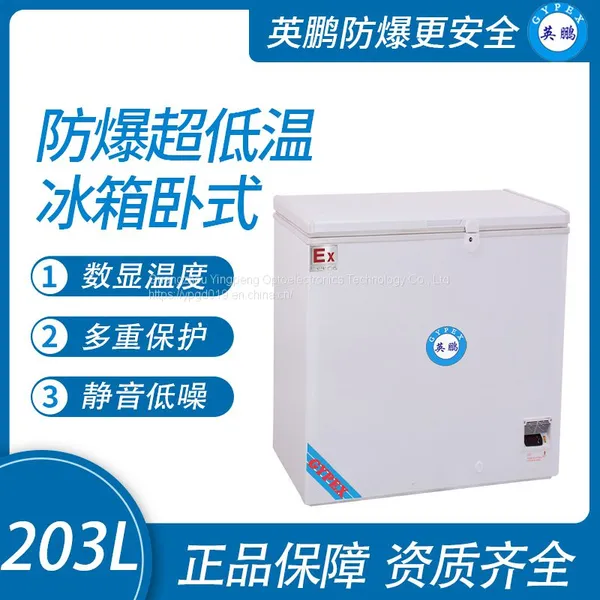

Guangzhou Yingpeng explosion-proof ultra-low temperature refrigerator horizontal 203L

25 ℃ horizontal ultra-low temperature explosion-proof refrigerator 203L:

Technical parameters:

Brand: Yingpeng GYPEX

Model: BL-400DW25W203

Volume: 203 liters

Temperature control: -10 ℃~-25 ℃

Category: Horizontal ultra-low temperature explosion-proof refrigerator

Power supply: 220V/50HZ

Power: 125W

External dimensions: 964 * 564 * 837mm

Internal size: 818 * 383 * 679mm

Explosion proof sign: Ex d ib mb IIC T4 Gb

Product model

type

Effective volume (L)

Temperature (℃)

Voltage (v/hz)

Overall dimensions (mm)

Internal dimensions (mm)

Basket (piece)

Power (w)

Net weight/gross weight (kg)

BL-400DW-25L116

vertical

one hundred and sixteen

-10~-25

220/50

519*600*1120

370*425*828

four

eighty-five

40/44

BL-400DW-25L146

vertical

one hundred and forty-six

-10~-25

220/50

519*6001305

370*425*1013

five

ninety-five

44/48

BL-400DW-25L300

vertical

three hundred

-10~-25

220/50

600*625*1875

480*449*1624

six

two hundred and sixty-five

74/85

BL-400DW-25L400

vertical

four hundred

-10~-25

220/50

775*720*1900

645*529*1648

six

three hundred and thirty

96/105

BL-400DW-25W147

horizontal

one hundred and forty-seven

-10~-25

220/50

739*564*837

599*389*677

one

one hundred and twenty

34.5/38.5

BL-400DW-25W203

horizontal

two hundred and three

-10~-25

220/50

964*564*837

818*383*679

one

one hundred and twenty-five

41/45.5

BL-400DW-25W322

horizontal

three hundred and twenty-two

-10~-25

220/50

1219*612*920

1097*450*707

one

two hundred and five

51.5/61.5

BL-400DW-25W389

horizontal

three hundred and eighty-nine

-10~-25

220/50

1309*705874

1165*510700

one

two hundred and twenty

57/68

BL-400DW-25W525

horizontal

five hundred and twenty-five

-10~-25

220/50

1843*689*848

1701*508*700

three

four hundred and fifty

85/99

Temperature control system:

Microcomputer control, digital temperature display, adjustable temperature inside the box from -10 ° C to -25 ° C.

High and low temperature alarm control, alarm temperature points can be set as needed.

Refrigeration system:

Adopting Yingpeng compressor and Yingpeng fan motor, fast cooling and low noise.

Thickened insulation layer and ultra micro porous foaming technology have good insulation effect.

Fluorine free foam and refrigerant, green and environmentally friendly

Reasonably optimize the design of the evaporation and condensation system, ensuring strong refrigeration.

L Secure control system:

Two types of fault alarms: high and low temperature alarm and sensor fault alarm.

Two alarm methods: audible buzzing alarm and flashing light alarm.

Multiple protection functions: startup delay, shutdown interval, keyboard lock, etc.

Humanized design:

The safety door lock design prevents accidental opening.

Wide voltage band design, suitable for a wide range of power supply environments.

High quality stepped aluminum inner design with drainage holes at the bottom of the box for easy cleaning.

Wide climate zone design, suitable for use in environments ranging from 10 ℃ to 32 ℃.

The box can be equipped with an item basket as needed, making it convenient to use.

Application scope:

Suitable for hazardous areas within Zone 1 (or Zone 2) of explosive gas mixtures with a temperature group of T4 in petroleum, chemical, pharmaceutical, aerospace, reagent, pharmaceutical factories, laboratories, storage and other departments. The BL series industrial grade integrated explosion-proof refrigerator is a Class IIC explosion-proof refrigeration system manufactured using integrated explosion-proof technology according to industrial environmental requirements.

Manufacturing strictly follows the product and relevant national standards:

GB 3836.1-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"

GB 3836.2-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Flameproof Type" d "

GB 3836.3-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 3: Increased Safety" e "

GB 3836.4-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Intrinsically Safe" i "

GB 3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "

three

one thousand and two hundred

280/310

BL-400DW-86L500

vertical

five hundred

-40--86

220/50

955*1050*1940

620*655*1200

three

one thousand and three hundred

298/330

BL-400DW-86L630

vertical

six hundred and thirty

-40--86

220/50

1145*1015*1940

810*655*1200

three

one thousand four hundred and fifty

339/375

BL-400DW-86L800

vertical

eight hundred

-40--86

220/50

1360*960*2000

1020616*1258

three

one thousand four hundred and fifty

377/419

BL400DW-86L930

vertical

nine hundred and thirty

-40--86

220/50

1360*1070*2000

1020*726*1258

three

one thousand five hundred and fifty

417/459

B1-400DW-86W102

horizontal

one hundred and two

-40--86

220/50

1110*800*890

450*430*530

/

eight hundred

150/183

BL-400DW-86W150

horizontal

one hundred and fifty

-40--86

220/50

1250*850970

540*480*582

/

eight hundred

190/217

BL-400DW-86W300

horizontal

three hundred

-40-86

220/50

1425*875*970

804*593*629

/

eight hundred

203/222

Applicable scope:

1. This product is suitable for explosive environments such as petrochemicals, metallurgy, pharmaceuticals, textiles, food, bioengineering, pharmaceuticals, warehouses, aerospace engineering, laboratories, chemical warehouses, and places with temperature control requirements; Suitable for research institutes, electronics, chemical and other laboratories, blood stations, and disease prevention and control. Used for preserving plasma, biomaterials, vaccines, etc., as well as for low-temperature testing of electronic devices and special materials.

Zone 2.1 and Zone 2 hazardous gas locations

3. Class IIA, IIB, IIC, T1-T4 explosive gas or steam environment;

4. Environmental temperature: -5 ℃~+43 ℃.

The explosion-proof low-temperature refrigerator can operate normally under the following environmental conditions:

a. The altitude does not exceed 2000m;

b. Applicable environment: temperature between 5 ℃ and 38 ℃, without corrosive gases;

c. There are strongly hazardous areas with Class IIA and IIB, T1 to T4 combustible gases, vapors, and air mixed together.

Product features:

Temperature control system

Microcomputer control, digital temperature display, adjustable temperature inside the box from -40 ° C to -86 ° C.

High and low temperature alarm control, alarm temperature points can be set as needed.

Refrigeration system

Adopting Yingpeng compressor and Yingpeng fan motor, the cooling is fast.

Thickened insulation layer, ultra microporous foaming technology, good insulation effect, fluorine free foaming, fluorine free refrigerant, green and environmentally friendly. Strong refrigeration function, reasonable optimization of evaporation and condensation system design, strong refrigeration.

L Secure control system

Two types of fault alarms: high and low temperature alarm and sensor fault alarm. Two alarm methods: audible buzzing alarm and flashing light alarm. Protection functions such as startup delay, shutdown interval, and keyboard lock

Humanized design

Drawer design makes it easier to retrieve and store items. Installing a pressure balancing valve makes opening the door more effortless. Bottom casters design for more convenient movement.

Wide voltage band design, suitable for a wide range of power supply environments. The bottom casters are designed for easy and convenient movement. The safety door lock design prevents accidental opening.
