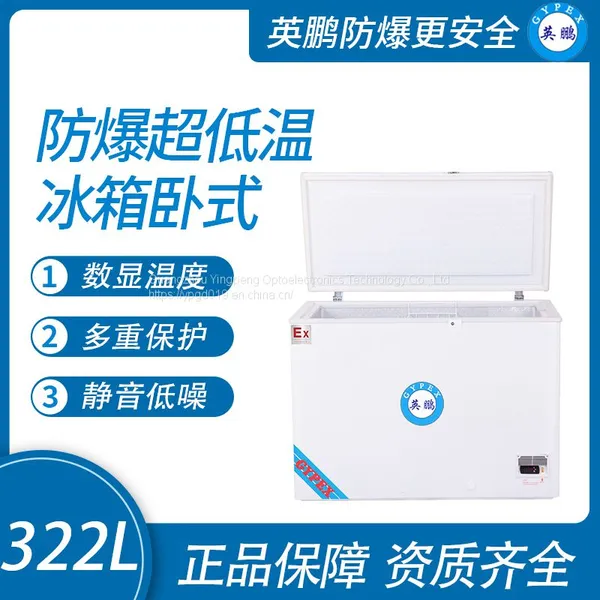

Guangzhou Yingpeng Explosion-proof Ultra-low Temperature Refrigerator Horizontal 322L

25 ℃ horizontal ultra-low temperature explosion-proof refrigerator 322 liters:

Technical parameters:

Brand: Yingpeng GYPEX

Model: BL-400DW25W322

Volume: 322 liters

Temperature control: -10 ℃~-25 ℃

Category: Horizontal ultra-low temperature explosion-proof refrigerator

Power supply: 220V/50HZ

Power: 205W

External dimensions: 1219 * 612 * 920mm

Internal size: 1097 * 450 * 707mm

Weight: 62kg

Explosion proof sign: Ex d ib mb IIC T4 Gb

Product model

type

Effective volume (L)

Temperature (℃)

Voltage (v/hz)

Overall dimensions (mm)

Internal dimensions (mm)

Basket (piece)

Power (w)

Net weight/gross weight (kg)

BL-400DW-25L116

vertical

one hundred and sixteen

-10~-25

220/50

519*600*1120

370*425*828

four

eighty-five

40/44

BL-400DW-25L146

vertical

one hundred and forty-six

-10~-25

220/50

519*6001305

370*425*1013

five

ninety-five

44/48

BL-400DW-25L300

vertical

three hundred

-10~-25

220/50

600*625*1875

480*449*1624

six

two hundred and sixty-five

74/85

BL-400DW-25L400

vertical

four hundred

-10~-25

220/50

775*720*1900

645*529*1648

six

three hundred and thirty

96/105

BL-400DW-25W147

horizontal

one hundred and forty-seven

-10~-25

220/50

739*564*837

599*389*677

one

one hundred and twenty

34.5/38.5

BL-400DW-25W203

horizontal

two hundred and three

-10~-25

220/50

964*564*837

818*383*679

one

one hundred and twenty-five

41/45.5

BL-400DW-25W322

horizontal

three hundred and twenty-two

-10~-25

220/50

1219*612*920

1097*450*707

one

two hundred and five

51.5/61.5

BL-400DW-25W389

horizontal

three hundred and eighty-nine

-10~-25

220/50

1309*705*874

1165*510*700

one

two hundred and twenty

57/68

BL-400DW-25W525

horizontal

five hundred and twenty-five

-10~-25

220/50

1843*689*848

1701*508*700

three

four hundred and fifty

85/99

Temperature control system:

Microcomputer control, digital temperature display, adjustable temperature inside the box from -10 ° C to -25 ° C.

High and low temperature alarm control, alarm temperature points can be set as needed.

Refrigeration system:

Adopting Yingpeng compressor and Yingpeng fan motor, fast cooling and low noise.

Thickened insulation layer and ultra micro porous foaming technology have good insulation effect.

Fluorine free foam and refrigerant, green and environmentally friendly

Reasonably optimize the design of the evaporation and condensation system, ensuring strong refrigeration.

L Secure control system:

Two types of fault alarms: high and low temperature alarm and sensor fault alarm.

Two alarm methods: audible buzzing alarm and flashing light alarm.

Multiple protection functions: startup delay, shutdown interval, keyboard lock, etc.

Humanized design:

The safety door lock design prevents accidental opening.

Wide voltage band design, suitable for a wide range of power supply environments.

High quality stepped aluminum inner design with drainage holes at the bottom of the box for easy cleaning.

Wide climate zone design, suitable for use in environments ranging from 10 ℃ to 32 ℃.

The box can be equipped with an item basket as needed, making it convenient to use.

Application scope:

Suitable for hazardous areas within Zone 1 (or Zone 2) of explosive gas mixtures with a temperature group of T4 in departments such as petroleum, chemical, pharmaceutical, aerospace, reagents, pharmaceutical factories, laboratories, storage, and Junshi. BL series industrial grade integrated explosion-proof refrigerators are Class IIC explosion-proof refrigeration systems manufactured using integrated explosion-proof technology according to industrial environmental requirements.

Manufacturing strictly follows the product and relevant national standards:

GB 3836.1-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"

GB 3836.2-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Flameproof Type" d "

GB 3836.3-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 3: Increased Safety" e "

GB 3836.4-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Intrinsically Safe" i "

GB 3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "
