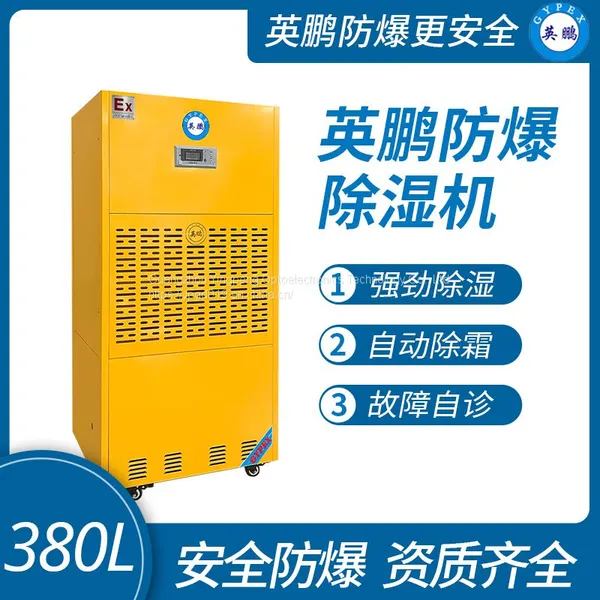

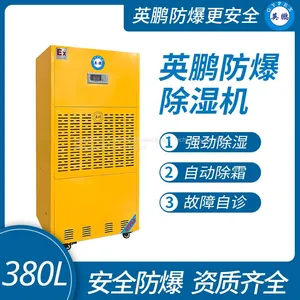

Guangzhou Yingpeng Explosion-proof Dehumidifier 380L

Technical parameters:

Brand: GYPEX Yingpeng

Model: BCF-7380C

Dehumidification capacity 380L/D (30 ℃ CRH80%)

Hourly dehumidification capacity: 15kg/h

Power supply: 380V 50Hz

Circulating air volume: 5800m ³/ h

Drainage method: hose automatic drainage

Current: 13A

Applicable temperature: 5 ℃ -38 ℃

Gross weight: 215KG

Packaging volume (high × wide × Deep) 1890 × one thousand two hundred and ninety × 570mm

Explosion proof sign: Ex db ib mb IIC T4 Gb

Fully automatic humidity control, RH30-95% adjustable at will;

1-12 hour timed shutdown setting;

Three minute delay start to protect the compressor;

Sensor fault self diagnosis function;

Digital display, microcomputer automatic defrosting, suitable for low-temperature environments.

More reliable and accurate than mechanical automatic defrosting;

Please refer to the specification sheet or user manual for specific technical parameters.

Applicable locations: factories, warehouses, large venues

(Applicable area: 400-680 square meters, with a floor height of about 2.6 meters)

Explosion proof grade mark: Ex d [ib] mb IICT4Gb

The explosion-proof dehumidification series models are processed through special explosion-proof technology and are widely used in hazardous areas such as scientific research, petroleum, chemical, pharmaceutical, processing and manufacturing, and biology, where Class IIA and IIB combustible gases, steam, and air are mixed to form explosive atmospheres. They are special dehumidification and temperature control equipment designed for places with moisture-proof and dehumidification requirements, with various functions such as dehumidification, low heat, and ventilation. The series of products have passed the inspection of the National Quality Supervision and Testing Center for Explosion proof Electrical Products and obtained the National Explosion proof Electrical Equipment Explosion proof Certificate: Explosion proof Dehumidifier CNEX08.2285/2286; Its appearance is beautiful, its design is reasonable, and it has the characteristics of easy installation and maintenance. The entire series of explosion-proof products use branded compressors, microcomputer control, and temperature and humidity switching display internally, which has the advantages of low noise, stable performance, and easy operation.

The explosion-proof label of the entire series of explosion-proof dehumidifiers is Exd [ib] mb IICT4 Gb.

The execution standards for this series of products are as follows:

GB3836.1-2000 Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements

GB3836.2-2000 Electrical Equipment for Explosive Gas Atmospheres - Part 2: Flameproof Type "d"

GB3836.4-2000 Electrical Equipment for Explosive Gas Atmospheres - Part 2: Intrinsically Safe "ib"

GB3836.9-2006 Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated "m"

GB3836.15-2000 Electrical Equipment for Explosive Gas Atmospheres - Part 15: Electrical Installation in Hazardous Locations

(excluding coal mines)

JB/10538-2005 "Explosion proof dehumidifiers and air conditioners"

The explosion-proof dehumidifier can operate normally under the following environmental conditions:

a. The altitude does not exceed 2000m;

b. Applicable environment: temperature between 5 ℃ and 38 ℃, without corrosive gases;

c. There are explosive hazardous areas with Class IIA and IIB, T1 to T4 combustible gases, vapors, and air mixed together.
